Description
Product Description:

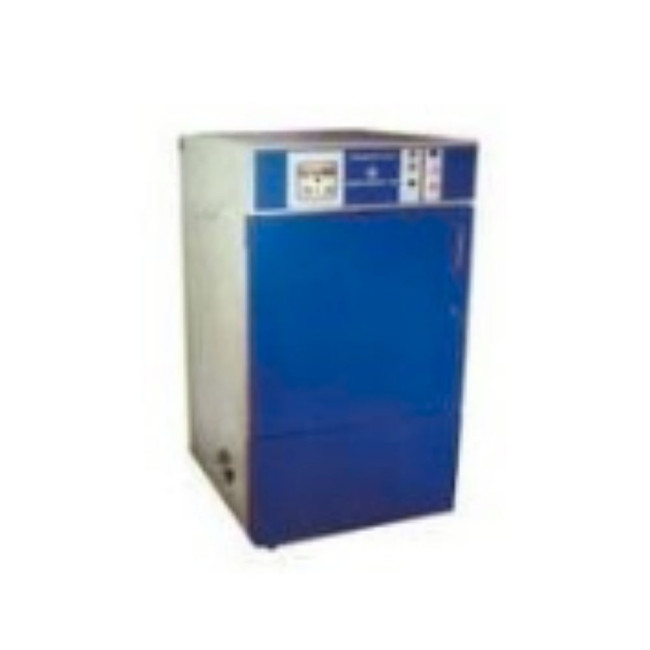

ModelINCUBATOR with Digital Temperature Control and Forced Air Circulation (EI-DVI Brand):
The ModelINCUBATOR series, branded EI-DVI, offers reliable and precise temperature control, making it an essential instrument for laboratory incubation applications. These units are specifically designed with a high-accuracy digital controller and internal forced air circulation to ensure superior thermal uniformity across the entire chamber.

Advanced Design and Construction:
The incubator features a robust, sturdy double-walled unit design. The inner chamber is constructed from high-quality Stainless Steel 304 (SS 304) or sometimes aluminum/stainless steel, depending on the model chosen, while the outer body is made of Mild Steel (MS) finished with durable epoxy powder coating.
Insulation is critical for maintaining stable internal temperatures and minimizing heat loss. A substantial gap between the two walls is filled with high-grade insulation material, such as glass wool (or 75mm thick high-grade glass wool in similar units), which effectively mitigates thermal transfer.

Precise Temperature Management:
Temperature control is managed by a Solid State Digital Temperature indicating controller (or Digital Temp. Controller cum indicator), often utilizing a PT-100 sensor for highly accurate measurements. Heating is provided by reliable heating elements, typically made of high-grade chrome plate nichrome wire. These elements may be positioned on three sides (bottom, left, and right sides) to promote gentle, even heating inside the chamber.
The standard operating temperature range for this laboratory-grade incubator is typically 5°C above ambient to 60°C.

Forced Air Circulation System:
To guarantee uniform temperature distribution, the ModelINCUBATOR is equipped with a forced air circulation fan (fan and motor arrangement) located at the bottom of the unit. This system continuously circulates air within the chamber, eliminating thermal gradients and ensuring precise conditions for sensitive biological and bacteriological work.
The control panel typically features all necessary control switches and pilot lamps fitted on the front panel. Many digital models also include a timer and/or alarm system as standard or optional features.

Technical Specifications (ModelINCUBATOR EI-DVI):
The following table details the common specifications for the requested chamber sizes, configured with digital temperature control and forced air circulation:
Inner Dimension (W x D x H)
Inner Dimension (Metric mm)
Approximate Capacity (Litres)
Approximate Wattage
Number of Shelves
12” x 12” x 12”
300 x 300 x 300
28 L
250 W
1 or 2
14” x 14” x 14”
350 x 350 x 350
45 L
300 W
2
18” x 18” x 18”
450 x 450 x 450
95 L
500 W
2
24” x 24” x 24”
600 x 600 x 600
224 L
900 W
3

General Technical Details:
Parameter
Specification
Temperature Range
Ambient +5°C to 60°C (up to 70°C for some models)
Temperature Accuracy
± 0.5°C
Controller Type
Digital Display (Solid State/Microprocessor based)
Air Circulation
Forced Air Circulation (Fan & Motor Arrangement)
Inner Chamber Material
Stainless Steel 304 (S.S. 304)
Outer Body Material
Mild Steel (MS) Powder Coated
Insulation
Double Walled, filled with High Grade Glass Wool
Power Supply
220/230 Volts A.C, 50 Hz
Standard Accessories
Perforated adjustable shelves, Pilot lamps, Control Switches
