EI-DVI model-12 Hole Digital Water Bath Double Wall

Name: EI-DVI model-12 Hole Digital Water Bath Double Wall
Brand: EI-DVI
SKU: EI-DVI-WTB-2WALL-Digital12H
Price: 18500 INR
Availability: InStock

EI-DVI

SKU:

EI-DVI-WTB-2WALL-Digital12H

₹18,500.00

Download Product Catalogue

(No reviews yet)

Current Stock:

Minimum Purchase:

1 unit

Quantity:

Adding to cart… The item has been added

Product Description: Model Double Wall with Digital Controller 12 Holes:

Product Overview:

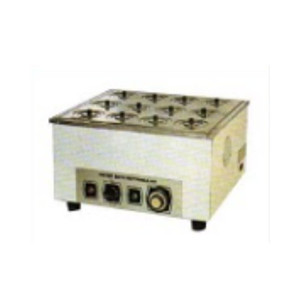

The Double Wall Water Bath with Digital Controller is an essential piece of laboratory equipment designed for procedures requiring precise and uniform temperature control. This rectangular unit features a robust double-walled construction for minimal heat loss and is equipped with a high-accuracy digital controller to ensure consistent performance across various scientific and industrial applications.

Design and Construction:

The water bath features double-walled construction, providing excellent thermal insulation and structural integrity. The inner chamber is completely made of thick Stainless Steel (often SS-304 grade), which is resistant to corrosion and easy to clean. The outer body is manufactured from mild steel sheet, finished with a protective powder coating. The space between the inner and outer walls is filled with special grade insulation, such as mineral wool, to effectively minimize thermal losses.

The bath is designed with 12 holes, each featuring a diameter of 75 mm (or 3 inches). These holes are supplied with removable concentric rings, allowing users to accommodate various sizes of containers or vessels. The unit is electrically operated and typically includes a heating element for uniform heat distribution throughout the system.

Advanced Digital Temperature Control:

This model utilizes a Digital Controller for superior temperature management, offering greater control precision compared to traditional thermostatic systems. The control system often features an Auto Tuning Dual Display PID Digital Controller, which allows for better control of temperature levels.

The typical operating temperature range spans from 5°C above ambient up to 99°C (or 100°C in some configurations). The temperature control accuracy for highly precise models is typically maintained at ± 0.5°C or better, although other versions specify an accuracy of ± 1 °C. The use of Demineralized (DM) or Reverse Osmosis (RO) water as feed water to the working chamber is often mandatory to ensure system longevity and optimal function.

Key Features and Inclusions:

• Novel double-walled structure to effectively prevent vapor leakage.

• Inner chamber and lid made of superior grade Stainless Steel.

• Equipped with 12 holes, each with 75 mm diameter concentric rings.

• Digital display and touch operating buttons (optional features available for digital control systems).

• Supplied complete with a power plug, cord wire, and an On/Off switch.

• Incorporates a heating element for efficient and uniform heating.

• Features suitable drainage facility for quick and easy cleaning.

Applications:

This water bath is a versatile tool suitable for general boiling applications and precise temperature maintenance procedures across various sectors, including:

• Industrial and Clinical Laboratories

• Academic Facilities (Engineering Colleges, ITI, Polytechnic institutions)

• Research Laboratories (Government and Private)

• Bio-chemical industries

• Medical institutions (for sterilizing purposes, Kolmer and Khan Test Inactivation)

• General tests/procedures requiring incubation (e.g., Wassermann, Kilmer tests)

• Paraffin Embedding procedures

Technical Specifications Table:

Feature	Specification Details
Model Type	Rectangular Water Bath, Double Walled
Number of Holes	12
Hole Diameter	75 mm (3 inches)
Capacity (Approx.)	15 Litres
Temperature Control	Digital PID Controller (Auto Tuning Dual Display)
Temperature Range	Typically Ambient +5°C up to 99°C (Max. 100°C)
Temperature Accuracy	± 1 °C or ± 0.5 °C (depending on configuration)
Inner Chamber Material	Stainless Steel (SS 304 Grade)
Outer Body Material	Mild Steel (M.S.) Sheet, Duly Powder Coated
Insulation	Mineral/Glass Wool
Power Supply	220 V or 230 V AC, 50 Hz
Heater Load (Rating)	Typically 1.5 KW
Common Chamber Dimensions (LxWxH)	355 x 405 x 100 mm
