Eutech pH 2700 Benchtop pH/ORP/Temperature Meter - High Accuracy Lab Solution
EUTECH
₹91,500.00
(No reviews yet)
Write a Review
EUTECH
Eutech pH 2700 Benchtop pH/ORP/Temperature Meter - High Accuracy Lab Solution

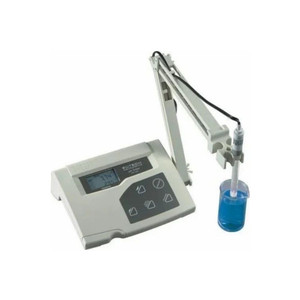

Eutech pH 2700 Benchtop Meter
The Eutech pH 2700 is a sophisticated and intuitive benchtop meter designed for precise and comprehensive pH, ORP (mV-Redox), and temperature measurements. This instrument offers an oversized screen with large fonts, ensuring that pH or ORP readings, temperature, electrode status, calibration points, and date and time are all viewable at a glance. It boasts advanced setup options for user customisation and a compact footprint, optimising valuable bench space.
Key Features and Benefits
• Comprehensive Backlit Display: All measurements, including temperature, are clearly displayed on a large, informative screen with a bright backlight, enhancing readability and user experience.
• Advanced Calibration and Electrode Diagnosis: Enjoy highly accurate readings with up to 6-point push-button calibration, featuring auto-buffer recognition. The meter also provides quick and easy electrode diagnosis through pH slope and offset displays, even with multiple pH slopes. It allows calibration with up to 5 custom pH buffers, provided they are ≥1.0 pH unit apart.
• Robust Data Management: The non-volatile memory stores up to 500 data points, each time and date-stamped for GLP (Good Laboratory Practice) compliance. Data can be easily transferred to a printer or PC via bi-directional RS232, and an auto-logging function supports convenient continuous monitoring.
• Enhanced User Control and Security: Features such as password protection for setup and calibration prevent unauthorised changes. A "Cal-due alarm" ensures calibrations are never outdated, and a "Limit alarm" alerts users if readings fall out of range.
• Convenient Design: The meter includes a detachable electrode holder that can be used on either side for flexibility. Non-skid pads provide stability during operation. A slide-out calibration guide is also included for quick referencing.
• Durability and Warranty: The splash-proof housing and keypad protect against incidental spills, ensuring a longer product lifespan. It comes with a 3-year warranty against manufacturing defects for the meter.
Measurement Capabilities
The Eutech pH 2700 offers versatile measurement parameters, making it a valuable tool in various settings:
• pH: Measures acidity or alkalinity with exceptional precision.
• ORP (mV-Redox): Determines the oxidation-reduction potential of solutions.
• Temperature: Provides accurate temperature readings that accompany all measurements, essential for compensation and result interpretation.
Ideal Applications
The Eutech pH 2700 is suitable for a wide range of applications requiring accurate pH, ORP, and temperature measurements, including:
• Educational: Excellent for most laboratory work, ecological studies, and general academic applications.
• Laboratory: Suited for environmental studies, chemical laboratories, titration processes, and quality assurance testing where GLP data management is crucial.
• Food Processing: Applicable in all types of food processing for quality control.
Specifications
|
Parameter
|
Specification
|
|
pH
|
|
|
Range
|
-2.000 to 20.000 pH
|
|
Resolution
|
0.1 / 0.01 / 0.001 pH
|
|
Accuracy
|
±0.002 pH + 1 LSD
|
|
Calibration Points
|
Up to 6 preset or 5 custom
|
|
Buffer Sets
|
USA, NIST, DIN, User 1, User 2, Custom
|
|
ORP
|
|
|
Range
|
±2000.0 mV
|
|
Relative mV Range
|
±2000.0 mV
|
|
Resolution
|
0.1 mV
|
|
Accuracy
|
±0.2 mV
|
|
Temperature
|
|
|
Range (Meter)
|
0.0 to 100.0 ºC / 32.0 to 212.0 ºF
|
|
Resolution
|
0.1 ºC / 0.1 ºF
|
|
Accuracy
|
±0.3 ºC / ±0.5 ºF
|
|
Compensation
|
ATC / MTC
|
|
Memory
|
500 data sets with date/time stamp
|
|
Output
|
Bi-directional RS232 for PC or printer
|
|
Power Requirements
|
9 V DC adapter, 1.3 A (100/240 VAC, SMPS)
|
|
Dimensions (Meter)
|
17.5 (L) x 15.5 (W) x 6.9 (H) cm
|
|
Weight (Meter)
|
650 g
|
|
Warranty
|
3 years for meter
|
What's Included (ECPH270042GS Model)
The Eutech ECPH270042GS package is a ready-to-use solution, providing everything needed for immediate measurements:
• Eutech pH 2700 Meter
• pH Electrode (ECFG7370101B): A high-performance Glass-Body Double Junction Ag/AgCl Refillable pH Electrode (110 x 12 mm, BNC Connector, 1 m Cable).
• ATC Probe (PH5TEMB01P): A stainless steel ATC (Automatic Temperature Compensation) probe (117 x 3 mm shaft, 1 m cable) for accurate temperature readings.
• pH Electrode Refill Solution, 60 mL
• RS232 Cable (30X427301)
• 100/240 VAC Power Adapter
• Integral Electrode Holder
