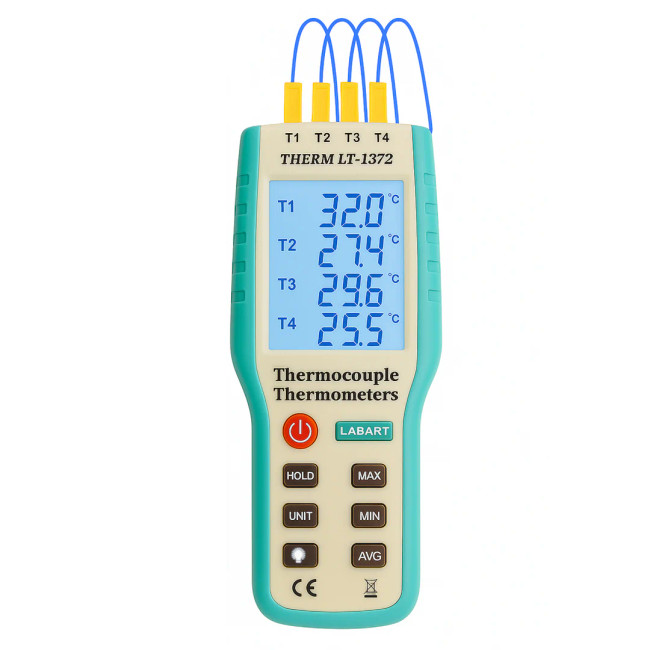

LABMART Digital Thermocouple LT-1372
The LABMART Digital Thermocouple LT-1372 is a professional-grade temperature monitoring device designed to deliver fast, accurate, and stable performance across various demanding environments. This powerful thermometer is equipped to measure up to four temperatures at once, making it an essential tool for complex thermal analysis. Utilising reliable Type K thermocouple input, the LT-1372 is well-suited for industrial, laboratory, and general temperature-monitoring applications.
Advanced Measurement Capabilities
The LT-1372 offers exceptional versatility, supporting multiple measurement modes and units to meet diverse requirements:
• Four-Channel Input: The device features 4 thermocouple inputs, allowing simultaneous reading of T1, T2, T3, and T4. It also supports dual thermocouple input functionality.
• Differential Temperature Reading: Users can easily measure the difference between two channels (T1~T2).
• Unit Selection: Temperature readings are available in user-selectable units of °C, °F, and K (Kelvin).
• Selectable Resolution: The user can choose between a fine 0.1°C or a broader 1°C resolution (or 0.1°F or 1°F).
Key Functions and Display
Designed for ease of use and maximum data retention, the LT-1372 includes several critical functions:
• Data Logging and Analysis: The thermometer includes min/max/avg functions to track temperature extremes and averages over a measurement period.
• Data Hold: Use the data hold or Max hold features to freeze the current temperature reading on the display for easy recording.
• Scan Function: A dedicated scan function cycles through various readings, including T1, T2, T1~T2, Max, and Hold values.
• Illuminated Display: The device is fitted with an LCD display with a backlight, ensuring readings are clear and visible even in low-light conditions.
Power and Portability
The unit is powered by a 9V battery. To conserve battery life, the device features an auto power off function that activates within 10 minutes of inactivity. The LT-1372 comes standard with a carrying case for easy transport and protection, along with the necessary accessories to begin immediate use.
Technical Specification Table
|
Item
|
Specification
|
|
Model No
|
LT-1372
|
|
Temperature Range
|
-200°C ~ 1372°C (-328°F ~ 2501°F)
|
|
Thermocouple Input
|
Type K
|
|
Temperature Channels
|
4 Thermocouple input (T1, T2, T3, T4)
|
|
Accuracy (>100°C / -148°F)
|
±1°C (±1°F)
|
|
Accuracy (<100°C / -148°F)
|
±2°C (±3.6°F)
|
|
Measurement Units
|
°C / °F / K
|
|
Type K Resolution (<1000 °C)
|
0.1°C / °F / K
|
|
Type K Resolution (>1000 °C)
|
1°C / °F / K
|
|
Power Supply
|
9V battery
|
|
Auto Power Off
|
Within 10 minutes
|
|
Package Contents
|
9V battery, carrying case, manual, and K-type probe
|
