Product Description: Lutron Model DT-2236 Digital Photo/Contact Tachometer:

Product Overview:

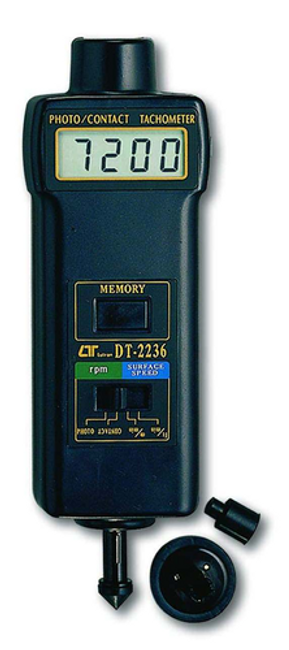

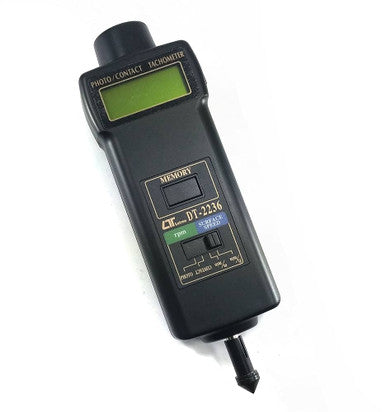

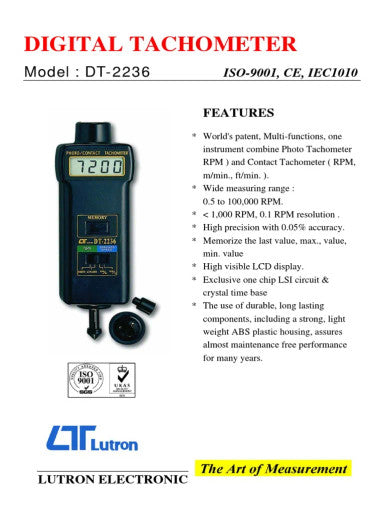

The Lutron Model DT-2236 is a multi-function digital tachometer that utilizes a world-patented design combining the capabilities of both a Photo Tachometer (non-contact RPM measurement) and a Contact Tachometer (measuring RPM, meters/min, and feet/min). This versatile instrument is built for high accuracy and fast sampling time, making it an ideal tool for measuring the rotational speed of shafts, motors, wheels, and other rotating objects. Certified with ISO-9001, CE, and IEC1010 standards, the DT-2236 assures high quality and reliable performance.

Measurement Versatility and Precision:
The DT-2236 offers an exceptionally wide measuring range, capable of detecting speeds from 0.5 up to 100,000 RPM. It achieves high precision with an accuracy of .
For non-contact measurement (Photo Tach.), the instrument measures RPM across a range of 5 to 99,999 RPM. When used as a Contact Tachometer, it measures RPM from 0.5 to 19,999 RPM, and surface speeds up to 1,999.9 m/min or 6,560 ft/min. The device features a high resolution of 0.1 RPM for measured values below 1,000 RPM.

Advanced Operational Features:
The tachometer employs an exclusive one-chip MICRO-COMPUTER LSI circuit and a quartz crystal time base, ensuring highly accurate measurements and fast response times. It includes an automatic memory function that automatically stores the last measured value, the maximum value, and the minimum value. These stored values can be recalled easily by pressing the MEMORY CALL button.

Durable Design and Display:
The DT-2236 is housed in a strong, lightweight ABS plastic cabinet, ensuring durable, almost maintenance-free performance for many years. The housing has been carefully shaped to fit comfortably in either hand. Readouts are displayed on a highly visible, five-digit LCD display (10 mm / 0.4" size), which provides the RPM reading exactly, without guessing or errors, while also helping to conserve battery energy. The unit operates on four standard 1.5V AA batteries.

Technical Specifications: Lutron DT-2236:
Specification Category
Parameter
Detail
Model
Model Number
DT-2236
Type
Instrument Type
Digital Photo/Contact Tachometer (Multi-Function)
Certification
Standards
ISO-9001, CE, IEC1010
Overall Measuring Range (RPM)
Wide Range (Photo/Contact)
0.5 to 100,000 RPM
Photo Tach. Range
RPM Measurement
5 to 99,999 RPM
Contact Tach. Range
RPM Measurement
0.5 to 19,999 RPM
Surface Speed Range
Meters/min (m/min)
0.05 to 1,999.9 m/min

Feet/min (ft/min)
0.2 to 6,560 ft/min
Accuracy
Precision
Resolution (RPM)
< 1,000 RPM
0.1 RPM

(Contact)
1 RPM
Resolution (Surface Speed)
< 100 m/min
0.01 m/min
Display
Type and Size
5 digits, 10 mm (0.4") LCD
Circuit
Time Base
Quartz crystal

Circuitry
Exclusive one-chip microcomputer LSI circuit
Memory Function
Stored Values
Last value, Maximum value, Minimum value
Power Supply
Battery Type
4 x 1.5V AA (UM-3) batteries
Power Consumption (Approx.)
Photo Type
DC 153 mA

Contact Type
DC 10 mA
Operating Temperature
Range
0 to 50 (32 to 122 )
Operating Humidity
Range
Less than 80% R.H.
Dimensions (L x W x H)
Size
195 x 61 x 38.5 mm (7.6 x 2.4 x 1.5 inch)
Weight
Weight (including batteries)
280g (0.61 LB)
Included Accessories
Package Contents

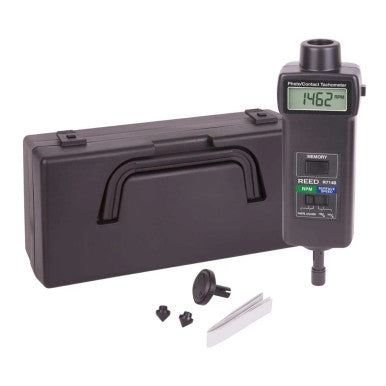

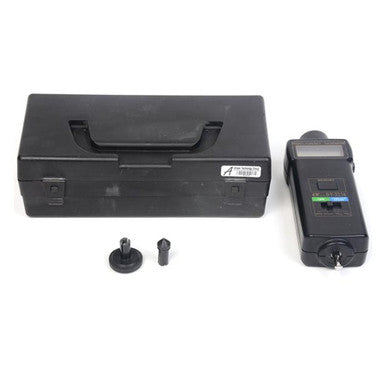

Carrying case, Reflecting tape marks (600 mm), RPM adapter (CONE), RPM adapter (FUNNEL), Surface speed test wheel, Operation manual
