Digital Disintegration Test Apparatus

Digital Disintegration Test Apparatus

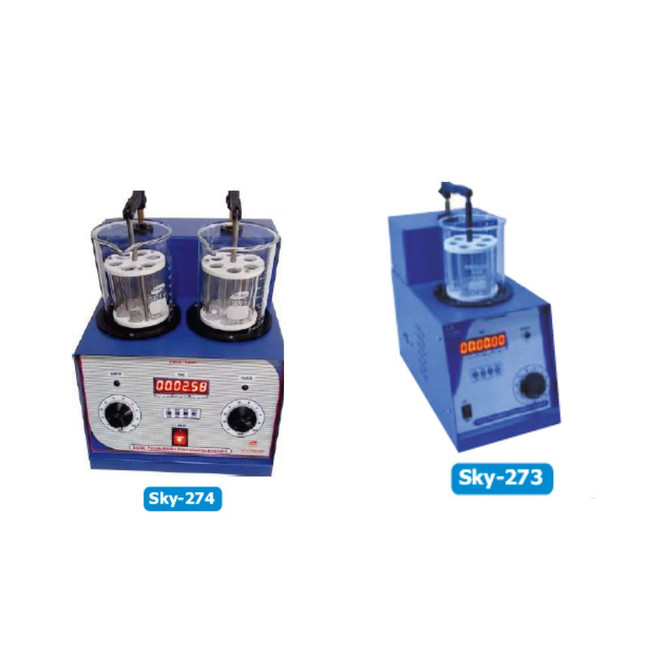

Product Description: Digital Disintegration Test Apparatus The Digital Disintegration Test Apparatus is used to determine the disintegration time of tablets and capsules. These models, SKY-273 (Single Basket) and SKY-274 (Double Basket), are designed as per pharmacopoeia specifications. They are equipped with a six-digit digital timer to monitor the disintegration time of the sample. Key features include programmable time with a digital display, automatic stop after completion of the set time with an alarm, and memory for protection of the running test in case of power failure. Both models also offer a separate regulator for control of heating and a facility to hold and resume the running test for inspection of the sample. The SKY-273 features a single basket and hot plate type of heating. The SKY-274 features double baskets and does not specify the type of heating in this particular excerpt. Specifications: Digital Disintegration Test Apparatus

Specification	SKY-273	SKY-274
No. of Basket	Single	Double
Type of Heating	Hot Plate	NA
Up-down Speed	30 ± 2 strokes/min	30 ± 2 strokes/min
Up-down Length	55 ± 5mm	55 ± 5mm
Time Control	Digital (Programmable from 1 sec to 99hr, 59min, 59 sec)	Digital (Programmable from 1 sec to 99hr, 59min, 59 sec)
Electric Motor	Low rpm A.C. Motor	Low rpm A.C. Motor
Audio Alarm at completion	Yes	Yes
Hold & Resume Facility	Yes	Yes
Programmable Time	Yes	Yes
Auto Stop	Yes (after completion of set time)	Yes (after completion of set time)
Memory for Power Failure	Yes (for protection of running test)	Yes (for protection of running test)
Separate Heating Regulator	Yes	Yes

Frequently Asked Questions: Digital Disintegration Test Apparatus

• What is the purpose of the Digital Disintegration Test Apparatus SKY-273 and SKY-274? They are used to determine the disintegration time of tablets and capsules.
• Do these models comply with pharmacopoeia standards? Yes, these DT apparatus are designed as per pharmacopoeia specifications. Digital Disintegration Test Apparatus
• What kind of time control do these models have? They are equipped with a six-digit digital timer and offer programmable time with a digital display. The time can be set from 1 second to 99 hours, 59 minutes, and 59 seconds.
• Do these apparatus have an automatic stop function? Yes, they feature an auto-stop function that activates after the completion of the set time, accompanied by an alarm.
• What happens if there is a power failure during a test? These models have memory for protection of the running test in case of power failure.
• Can I interrupt a test to inspect the samples? Yes, they have a facility for hold and resume the running test for inspection of the sample. Digital Disintegration Test Apparatus
• How many baskets do these models have? The SKY-273 has a single basket, while the SKY-274 has double baskets.
• What type of heating does the SKY-273 use? The SKY-273 uses a hot plate for heating. The source does not specify the heating type for the SKY-274 in this section.
• Is there a separate control for heating? Yes, both models are equipped with a separate regulator for control of heating.
• What is the speed and length of the basket's up-down movement? The up-down speed is 30 ± 2 strokes per minute, and the up-down length is 55 ± 5 mm. Digital Disintegration Test Apparatus
• What type of motor is used? Both models utilize a low rpm A.C. Motor.
• Is there an audio alarm when the test is completed? Yes, there is an audio alarm at completion of the set time.
