Digital Tablet Disintegration Test Apparatus

₹30,400.00
(No reviews yet)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description

Digital Tablet Disintegration Test Apparatus

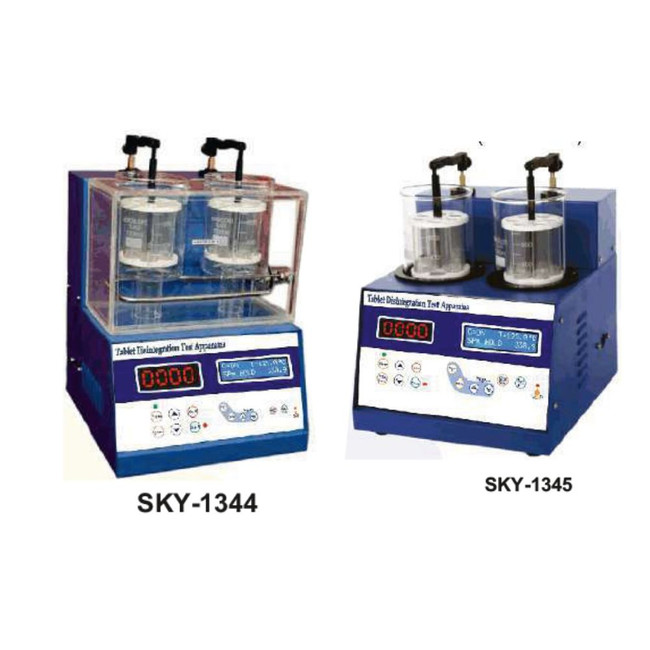

Based on the excerpts from "sky price list 1124.pdf", here is the product description and specification for the Tablet Disintegration Test Apparatus models SKY-1344 and SKY-1345, along with frequently asked questions: Product Description: The Digital Tablet Disintegration Test Apparatus models SKY-1344 (Double Basket with Water Bath) and SKY-1345 (Double Basket With Hot Plate) are used to determine the disintegration time of tablets. Both models are designed according to IP/BP/USP standards. They feature programmable time with a digital display and automatic temperature control with PID for the SKY-1344. Both models also have an auto-stop function after the set time with an audio alarm for enteric coated tablets. A key feature is the "Hold / Resume" facility for both time and motor movement, allowing for inspection of the sample during operation for quickly disintegrating tablets. Both utilize a special low RPM motor for less noise and constant speed. The SKY-1344 uses a Digital PID Temp. Controller for heating and includes a water bath tank. The SKY-1345 uses a Hot Plate for heating. Specifications: Digital Tablet Disintegration Test Apparatus
Specification SKY-1344 (Double Basket with Water Bath) SKY-1345 (Double Basket With Hot Plate)
Type Digital Tablet Disintegration Test Apparatus Digital Tablet Disintegration Test Apparatus
Standard IP/BP/USP Standard IP/BP/USP Standard
No. of Basket 2 Basket 2 Basket
Heating Method Water Bath Hot Plate
Temperature Control Digital PID Control Same as SKY-1344
Up-down Speed 30 ± 2 Strokes/min 30 ± 2 Strokes/min
Up-down Length 55 ± 5 mm 55 ± 5 mm
Time Control Digital (Programmable from 1 sec to 99 hr, 56 min, 59 sec) Digital (Programmable from 1 sec to 99 hr, 56 min, 59 sec)
Electric Motor Low RPM A.C. Motor Low RPM A.C. Motor
Audio Alarm at completion Yes (for enteric coated tablets) Yes (for enteric coated tablets)
Hold & Resume Facility Yes Yes
Dimension 305X330X385 mm (L X B X H ) Same as SKY-1344
Frequently Asked Questions: Digital Tablet Disintegration Test Apparatus
  • What is the purpose of the Tablet Disintegration Test Apparatus SKY-1344 and SKY-1345? They are used to determine the disintegration time of tablets.
  • What standards do these models comply with? These DT apparatus are designed as per IP/BP/USP Standard.
  • How many baskets do these models have? Both the SKY-1344 and SKY-1345 have double baskets.
  • What is the difference in heating between the SKY-1344 and SKY-1345? The SKY-1344 features a water bath for heating with automatic temperature control using a Digital PID Controller, whereas the SKY-1345 uses a hot plate for heating.
  • Do these apparatus have programmable time? Yes, they offer programmable time with a digital display. The time can be set from 1 second to 99 hours, 56 minutes, and 59 seconds.
  • Is there an automatic stop function with an alarm? Yes, both models feature an auto-stop function after the set time is completed, accompanied by an audio alarm, specifically mentioned for enteric coated tablets.
  • Can I pause a test to inspect the samples? Yes, they have a "Hold / Resume" facility that allows you to stop both the time and motor movement for inspection of the sample during operation.
  • What is the speed and length of the basket's movement? The up-down speed is 30 ± 2 strokes per minute, and the up-down length is 55 ± 5 mm.
  • What type of motor is used? Both models utilize a low RPM A.C. Motor for less noise and constant speed.
  • Does the SKY-1344 have temperature control? Yes, the SKY-1344 has automatic temperature control with PID and a Digital PID Temp. Controller for heating the water bath. Digital Tablet Disintegration Test Apparatus
  • What are the dimensions of the apparatus? The dimensions for both models are 305X330X385 mm (L X B X H ).
