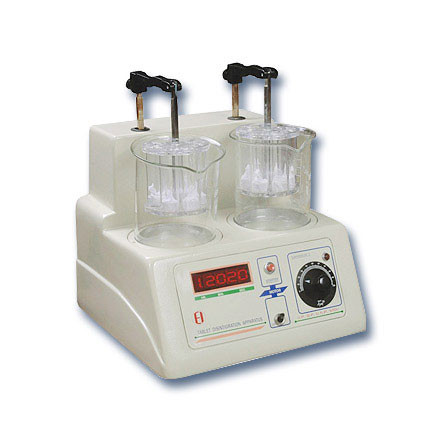

EI-DVI Model 904 Digital Tablet Disintegration Apparatus
EI-DVI
₹28,900.00
(No reviews yet)
Write a Review
EI-DVI
EI-DVI Model 904 Digital Tablet Disintegration Apparatus
Product Overview:
The Model 904 Digital Tablet Disintegration Apparatus, offered by EI-DVI (Electronics India/OCTOVISION), is a reliable, state-of-the-art instrument designed for the accurate estimation and determination of the disintegration time of tablets and capsules. This equipment is essential for quality control (QC) and research laboratories in the pharmaceutical industry, ensuring that all solid dosage forms meet prescribed pharmacopeial standards (IP, USP, BP). The Model 904 is configured as a single basket system, making it an efficient choice for routine quality assurance checks.
Core Features and Technology:
This apparatus utilizes digital microprocessor control to manage test parameters precisely, guaranteeing accurate and repeatable results.
• Microprocessor-Based Time Totalizer: Provides an accurate time readout and includes memory backup for protection of running tests in case of power failure.
• Digital Timer: Features a 1 second resolution and is programmable, allowing tests to be set from 1 second up to 99 hours, 59 minutes, and 59 seconds.
• Temperature Management: Temperature is controlled by highly sensitive thermostats or a digital controller, utilizing an in-built heater and sensor. The apparatus maintains the required test temperature with high accuracy.
• Motion Control: Baskets move smoothly Up & Down exactly as per IP/USP test specifications.
• Visual Display: A clear digital LED display provides simultaneous, easy-to-read indication of the elapsed run time and the water bath temperature.
• Safety & Convenience: The unit includes an audible alarm that automatically sounds upon completion of the preset test time. It also offers the facility to hold and resume the time and motor movement for inspecting quickly disintegrating samples.
Testing Capabilities:
The Model 904 is built for single-batch testing according to international pharmacopeia standards.
• Batch Capacity: Designed to test a single batch of 6 tablets simultaneously.
• Basket Configuration: Includes a single basket assembly fitted with 6 tubes and a guided disc, fully compliant with USP/IP specifications.
• Disintegration Media: The apparatus includes a 1000 ml glass beaker designed to hold the suitable disintegration media, which is temperature controlled during the test cycle.
• Standard Speed: The basket assembly reciprocates at a constant speed of 30 rpm ± 2 rpm (or 30 ± 2 strokes per minute).
Ideal Applications:
The Model 904 Digital Tablet Disintegration Apparatus is suited for various environments requiring precise pharmaceutical testing:
• Quality Control (QC) and Quality Assurance (QA) in pharmaceutical manufacturing.
• Research and Development (R&D) for new tablet and capsule formulations.
• Educational laboratories in pharmacy colleges for demonstration and training.
• Testing of nutraceuticals and dietary supplements requiring disintegration analysis.
Technical Specifications (Model 904):
|
Specification
|
Detail
|
|
Model
|
904 (Also referred to as LJ-904 or OCTOVISION 904)
|
|
Brand
|
Electronics India / EI-DVI
|
|
Product Type
|
Digital Tablet Disintegration Apparatus
|
|
Compliance
|
IP, USP, BP Pharmacopeial Standards
|
|
Beaker System
|
Single Beaker System (1000 ml capacity)
|
|
Tablet System
|
Single Basket with 6 Tubes & Guide Disc
|
|
Control System
|
Microprocessor-based Digital Control
|
|
Time Display
|
5 Digit Red LED ½ “ Display / Digital LED Display
|
|
Time Control
|
Programmable (1 sec to 99 hr, 59 min, 59 sec)
|
|
Resolution
|
1 second
|
|
Up and Down Speed
|
30 rpm ± 2 rpm or 30 ± 2 strokes per minute (spm)
|
|
Accuracy
|
0.02 or 2%
|
|
Temperature Control
|
Sensitive Thermostats / Digital Controller
|
|
Operating Temperature Range
|
0 – 100°C (General)
|
|
Power
|
230V ± 10%, 50Hz.AC
|
|
Dimensions (L x B x H)
|
320 x 290 x 290mm (Without Rods)
|
|
Weight
|
8 Kgs. (Approx.)
|
|
Accessories Included
|
Dust Cover, Operation Manual, Glass Jar, Basket with 6 Tubes & Guided Disc
|
-
-
-
