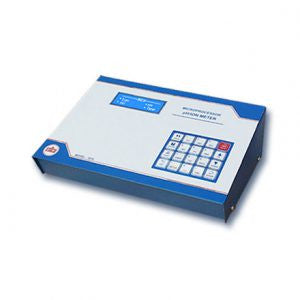

ESICO 1016 Microprocessor pH/Ion Meter Lab Instrument
ESICO 1016 Microprocessor pH/Ion Meter - Professional Laboratory Instrument
The ESICO 1016 Microprocessor pH/Ion Meter is a high-precision scientific instrument designed for accurate measurement of ion concentration, pH, mV, relative mV, and temperature. Manufactured by ESICO International, an ISO 9001:2008 certified company, this advanced laboratory meter combines cutting-edge microprocessor technology with user-friendly operation to deliver exceptional performance for demanding analytical applications.
Key Features & Benefits
- Comprehensive Measurement Capabilities - Measures ion concentration, pH, mV, relative mV, and temperature in one versatile instrument
- High-Precision pH Measurement - Range of -1.000 to 14.000 pH with selectable resolution of 0.001/0.01 pH
- Advanced Calibration Options - Up to 5-point calibration with automatic buffer recognition
- Extensive Memory Storage - Stores up to 999 samples, retained even when powered off
- Printer Connectivity - Direct connection to Centronics dot matrix printer for result documentation
- PS2 Keyboard Compatibility - Enables easy data entry with external keyboard
- Large Backlit Display - 20 x 4 line alphanumeric LCD with simultaneous display of multiple parameters
- User-Friendly Interface - 20 soft-touch membrane keys with guided measurement prompts
- Password Protection - Secured calibration settings for consistent results
- Automatic Temperature Compensation - Ensures accurate readings across different sample temperatures
- Automatic Error Detection - Built-in diagnostic system identifies measurement issues
- Calibration Alerts - Provides reminders when calibration is due
- 1-Year Warranty - Manufacturer-backed quality assurance
Technical Specifications
pH Measurement
| Parameter |
Specification |
| Range |
-1.000 to 14.000 pH |
| Resolution |
0.001/0.01 pH (user-selectable) |
| Accuracy |
±0.002/±0.01 pH |
| Calibration |
1 to 5 points with standard buffers |
| Buffer Sets |
USA: pH 1.68, 4.01, 7.00, 10.01, 12.45
NIST: pH 1.68, 4.01, 6.86, 9.18, 12.45
Bf1: pH 1.68, 4.01, 6.86, 10.01, 12.45
Bf2: pH 1.68, 4.01, 7.00, 9.18, 12.45
Custom entry buffer calibration |
| Stability |
±0.002 pH/Hour |
mV/Relative mV Measurement
| Parameter |
Specification |
| Range |
-1999.9 to 1999.9 mV |
| Resolution |
0.1 mV |
| Accuracy |
±0.2 mV |
| Calibration |
mV offset up to ±150 mV |
Ion Concentration Measurement
| Parameter |
Specification |
| Range |
0.001 to 19999 |
| Resolution (High resolution mode: ±500.0 mV) |
0.001: from 0.001 to 0.999
0.01: from 1.00 to 9.99
0.1: from 10.0 to 99.9
1: from 100 to 19999 |
| Resolution (Low resolution mode: ±1850.0 mV) |
0.001: from 0.001 to 0.099
0.01: from 0.10 to 0.99
0.1: from 1.0 to 9.9
1: from 10 to 19999 |
| Accuracy |
±0.5% of full scale for monovalent ions
1% of full scale for divalent ions |
| Calibration |
2 to 5 points |
| Min./Max. Average Slope |
10 mV/decade / 75 mV/decade |
Temperature Measurement
| Parameter |
Specification |
| Range |
-5.0 to 105.0°C; 23.0 to 221.0°F |
| Resolution |
0.1°C/°F |
| Accuracy |
±0.3°C/0.5°F |
| Calibration |
Automatic Temperature compensation offset ±5.0°C/±9.0°F |
| Sensor |
Semiconductor Type |
| Compensation |
0-100°C Auto/Manual |
General Specifications
| Parameter |
Specification |
| Inputs |
BNC, Phono (ATC), Reference, Ground |
| Output |
RS232C |
| Recorder Output |
±1800 mV, 1 mV/mV unit |
| Power Requirements |
AC/DC 9V Adapter (110 VAC/220 VAC) |
| Display |
24 x 4 lines Alphanumeric LCD with backlit |
| Memory Storage |
Up to 999 Samples |
| Keyboard |
20 keys, Soft Touch Membrane Type |
Applications
The ESICO 1016 Microprocessor pH/Ion Meter is designed for professional use across multiple industries and laboratory settings:
Water Quality Analysis
- Water Treatment Plants - Monitor and control pH levels in water purification processes
- Boiler Feed Water Testing - Ensure optimal pH for boiler operations and prevent scaling
- Swimming Pool Maintenance - Accurate pH measurement for proper chemical balance
- Environmental Monitoring - Assess water quality in natural bodies and waste streams
Agricultural Applications
- Soil Analysis - Determine soil pH and ion concentrations for crop management
- Fertilizer Development - Research and quality control in fertilizer production
- Hydroponics - Monitor nutrient solutions for optimal plant growth
- Agricultural Research - Support scientific studies on soil chemistry and plant nutrition
Industrial Applications ESICO 1016 Microprocessor pH/Ion Meter Lab Instrument
- Petroleum Refineries - Quality control and process monitoring
- Breweries - Precise pH measurement for consistent fermentation processes
- Food & Beverage Processing - Quality assurance and process control
- Chemical Manufacturing - Monitor and control pH-sensitive reactions
Research & Education ESICO 1016 Microprocessor pH/Ion Meter Lab Instrument
- University Laboratories - Support research projects requiring precise pH and ion measurements
- Teaching Labs - Demonstrate pH principles and analytical techniques
- Environmental Research - Study water and soil chemistry in field research
- Pharmaceutical Development - Quality control and formulation research
Advanced Features Explained
Sophisticated Calibration System ESICO 1016 Microprocessor pH/Ion Meter Lab Instrument
The ESICO 1016 offers an advanced calibration system that ensures accurate and reliable measurements:
- Multi-Point Calibration - Up to 5-point calibration for superior accuracy across the entire pH range
- Automatic Buffer Recognition - The meter automatically identifies standard buffer solutions for streamlined calibration
- Multiple Buffer Set Options - Choose from USA, NIST, or custom buffer sets based on your specific requirements
- Calibration Due Alerts - Receive timely reminders when recalibration is needed
- Password Protection - Prevent unauthorized changes to calibration settings
Comprehensive Data Management ESICO 1016 Microprocessor pH/Ion Meter Lab Instrument
Efficient data handling capabilities make the ESICO 1016 ideal for busy laboratories:
- Large Sample Memory - Store up to 999 measurements for later review and analysis
- Non-Volatile Storage - Data remains intact even when the device is powered off
- Printer Connectivity - Direct connection to Centronics dot matrix printer for hard copy records
- PS2 Keyboard Integration - Connect a standard PS2 keyboard for efficient data entry
- RS232C Interface - Transfer data to computers for further analysis and record-keeping
User-Friendly Operation ESICO 1016 Microprocessor pH/Ion Meter Lab Instrument
Designed with laboratory workflows in mind, the ESICO 1016 offers intuitive operation:
- Guided Interface - On-screen prompts guide users through measurement procedures
- Multi-Parameter Display - View multiple measurements simultaneously on the large LCD screen
- Membrane Keypad - Durable, soft-touch keys resist chemical spills and are easy to clean
- Backlit Display - Clearly visible readings even in low-light laboratory environments
- Error Detection - Automatic identification of measurement issues helps prevent inaccurate results
Quality Assurance
As an ISO 9001:2008 certified manufacturer, ESICO International maintains stringent quality control standards in the production of the 1016 Microprocessor pH/Ion Meter:
- ISO Certification - Manufactured under a comprehensive quality management system
- Factory Calibration - Each unit precision-calibrated before shipping
- Comprehensive Testing - Rigorous performance verification ensures measurement accuracy
- 1-Year Warranty - Full manufacturer's warranty against defects in materials and workmanship
- Technical Support - Access to expert assistance for setup, operation, and troubleshooting
Additional Product Information
What's Included ESICO 1016 Microprocessor pH/Ion Meter Lab Instrument
- ESICO 1016 Microprocessor pH/Ion Meter (main unit)
- Power adapter (9V AC/DC)
- Comprehensive instruction manual
- Calibration certificate
Optional Accessories ESICO 1016 Microprocessor pH/Ion Meter Lab Instrument
- pH electrodes for various applications
- Ion selective electrodes (ISEs)
- Temperature probe
- Buffer solutions for calibration
- Electrode storage solutions
- Printer cable
- PS2 keyboard
Why Choose the ESICO 1016?
Superior Accuracy ESICO 1016 Microprocessor pH/Ion Meter Lab Instrument
With pH accuracy of ±0.002/±0.01 pH and mV accuracy of ±0.2 mV, the ESICO 1016 delivers the precision required for the most demanding scientific and industrial applications. The multi-point calibration system ensures accurate readings across the entire measurement range.
Versatile Functionality ESICO 1016 Microprocessor pH/Ion Meter Lab Instrument
The ability to measure pH, ion concentration, mV, relative mV, and temperature in a single instrument makes the ESICO 1016 an exceptionally versatile laboratory tool. This comprehensive functionality eliminates the need for multiple specialized instruments, saving both bench space and equipment costs.
User-Centric Design ESICO 1016 Microprocessor pH/Ion Meter Lab Instrument
From the intuitive membrane keypad to the large backlit display, every aspect of the ESICO 1016 is designed with the user in mind. On-screen prompts guide operators through procedures, while automated features like buffer recognition simplify complex tasks and reduce the potential for human error.
Reliable Performance ESICO 1016 Microprocessor pH/Ion Meter Lab Instrument
Built with high-quality components and manufactured under ISO 9001:2008 certified processes, the ESICO 1016 offers exceptional reliability and durability. Features like automatic error detection and calibration alerts help maintain measurement accuracy over time, while the non-volatile memory ensures data integrity even during power interruptions.
About ESICO International ESICO 1016 Microprocessor pH/Ion Meter Lab Instrument
ESICO International is an ISO 9001:2008 certified manufacturer specializing in precision scientific and laboratory instruments. Their comprehensive product range includes spectrophotometers, flame photometers, pH meters, conductivity meters, dissolut.ion test apparatus, and numerous other analytical instruments designed for research, quality control, and educational applications.
With a commitment to quality, innovation, and customer satisfaction, ESICO International provides reliable instrumentation solutions to laboratories worldwide. ESICO 1016 Microprocessor pH/Ion Meter Lab Instrument
Additional Products from ESICO International
The company offers a comprehensive range of laboratory equipment including:
- Semi Auto Analyzers
- Double Beam UV/VIS Spectrophotometers
- Single Beam UV/VIS Spectrophotometers
- Flame Photometers
- Haemoglobin Meters
- Photo Colorimeters
- Conductivity Meters
- TDS Meters
- DO Meters
- Salinity Meters
- Turbidity Meters
- Nephelometers
- Colony Counters
- Karl Fischer Moisture Titrators
- Fluorometers
- Pharmaceutical Testing Equipment
Summary ESICO 1016 Microprocessor pH/Ion Meter Lab Instrument
The ESICO 1016 Microprocessor pH/Ion Meter is a high-performance laboratory instrument that combines precision measurement capabilities with user-friendly operation. With its comprehensive measurement range, advanced calibration options, and extensive data management features, this versatile meter is ideal for a wide range of applications in water quality analysis, agricultural research, industrial quality control, and scientific research.
