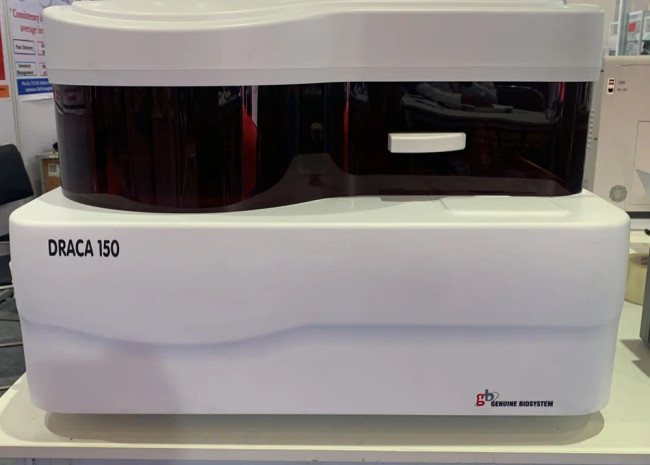

Fully Automated Biochemistry Analyzer Draca 150

₹495,000.00
(No reviews yet)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description

Fully Automated Biochemistry Analyzer Draca 150

Instrument Name
Biochemistry Analyzer
Automation
Fully Automatic
Model Name/Number
DRACA 150
Usage/Application
Hospital
Brand
DRACA
Parameters
100
Assays
Clinical Chemistry
Reaction Cuvette
Disposable Cuvette
Brand Fully Automated Biochemistry Analyzer Draca 150
Model Name/Number Draca 150
Power Supply AC 110/220V +- 10%,50/60 Hz,650W
Water Consumption/Hr 8L/Hour (Maximum)
Wavelength 340nm; 405nm;450nm; 505nm;546nm; 578nm; 630nm; 700nm
Sample Volume 2-30 Miu L,Step by 0.1 Miu L
Weight 80kg
Resolution 0.0001 Ab0-4.0 Abs
Dimension 870mm * 690mm * 740mm(L*W*H)
Interface TCP/IP Network Interface
Machine Type Random Access with dedicated DRACA system packs
Test Speed 150 Test/Hour
Test Principle Colorimetric Method,Turbidimetry Fully Automated Biochemistry Analyzer Draca 150
Calibration Type Linear & Nonlinear
Reagent Tray 80 Reagent Positions ( 40 for R1 & 40 for R2 ),Non-Stop Cooling System With Peltier Pad Inside.
Reagent Volume 20-300 miu l,Step by 1 Miu l
Reagent Needle Liquid Surface Detection,Timely Tracking for Liquid Volume,Collision Avoidance.
Operation System Windows XP,Windows 7,Windows 8,10
Report Printing 6 Formats,Optional,Support Custom Pattern
Sample Tray 40 Sample Positions
Sample Tube Micro Cup & Test Tube & Blood Collection Tube Can Be Used
Sample Probe Liquid Surface Detection,Timely Tracking For Liquid Volume.Collision Avoidance
Sample Barcode Sample Barcode Reader
Mixer - Paddle Type Mixing,Eective Reducing of Carry-over
Light Source Halogen Lamp
Absorbance Range 0-4.0 Abs
Reaction tray 44 Reaction Cuvettes,New Amorphous Optical Plastics Reaction Cups,Perfect Transmittance.
Reaction Volume 50 Miu l-330 Miu l
Reaction Time 10 Minutes
Temperature Peltier Pad Incubation System,Reaction Temperature ( 37 DegreeC +- 0.1 DegreeC )
