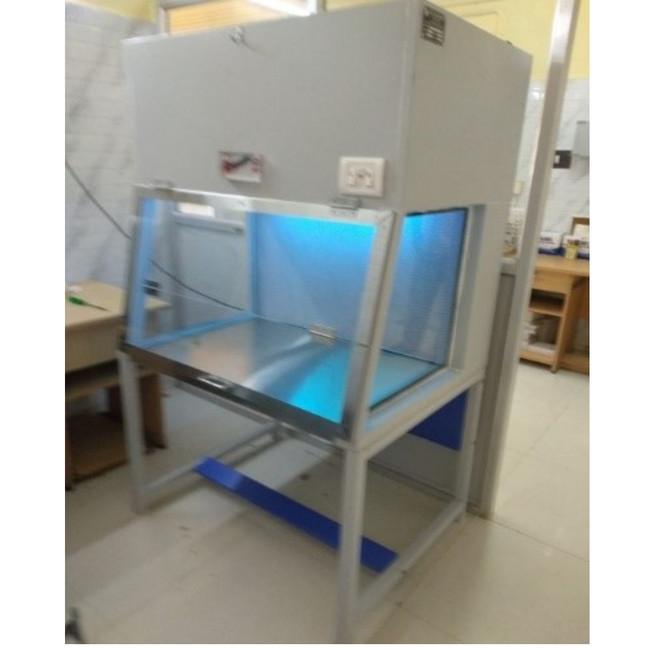

Horizontal Laminar Air Flow

Horizontal Laminar Air Flow

• For creation of a bacterial dust free air space
• For bio-assays and sterility applications

• Work table is made of top  S. top and side panels of 6mm thick transparent flexi glass duly framed and outer body with wooden .
• Laminar flow principle involves doubles filtration of air.
• Atmospheric air is drawn through pre filter and is made to pass through highly effective HEPA (High Efficiency Particular Air) filter having efficiency rating as high as 99.99% with cold DOP and 99.97% with hot DOP, thus retaining all air-bone particles of size 0.3 micron and larger. Double filtered air blow in laminar flow through the work table at designed velocity of 90 ft/min +/-20%.
• Blower Motor Assembly: Statically and dynamically balanced, direct drive, sized to provide adequate air flow volume over the entire surface of HEPA filter. Fitted with ¼ HP Motor and operates with minimum noise level i.e. lower than 65 db on scale and Vibration less than 2.5 um. (0.0001 deg).
• Work area properly illuminated by diffused, glare free fluorescent light supplied with Gas inlet, Front Door, Manometer, wheel for easy movement, UV Lamp.
• 230V, Single phase, 50 Hz AC supply.
