Lutron ORP-213 Digital ORP Meter: Professional Oxidation Reduction Potential Measurement

The Lutron ORP-213 is a professional-grade, pen-type digital ORP meter that delivers precise oxidation reduction potential measurements for diverse water quality applications. Featuring IP65 water resistance, a detachable electrode with 3-meter cable, and comprehensive measurement capabilities, this portable meter combines laboratory accuracy with field-ready durability.

Key Features & Benefits Lutron ORP-213 Digital ORP Meter

• Wide Measurement Range - Complete -1,000 mV to +1,000 mV range with 1 mV resolution
• IP65 Water Resistance - Heavy-duty construction protects against water and dust ingress
• Separate ORP Electrode - Detachable ORP-14 electrode with 3-meter cable for flexible measurement positioning
• Reverse Display Function - Built-in button allows display direction adjustment for easy reading
• Data Hold Capability - Freeze measurements on screen for convenient recording
• Auto Power Off - Conserves battery life when not in use
• Compact, Lightweight Design - Portable format (180 x 40 x 40 mm) for easy transport
• High Accuracy - ± (0.8% + 1 digit) ensures reliable readings
• Fast Response Time - Approximately 0.8-second sampling time for efficient testing
• Universal Compatibility - Works with any ORP electrode featuring a BNC connector
• Battery Powered - Operates on 4 AAA batteries for complete portability
• ISO-9001, CE, IEC1010 Certified - Meets international quality and safety standards

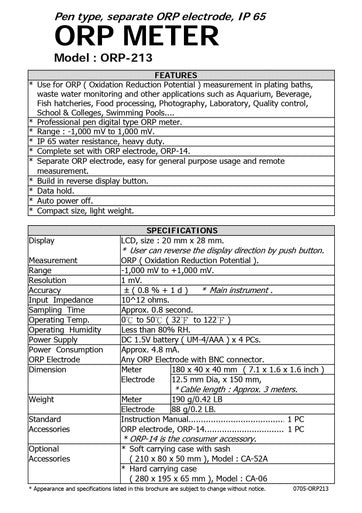

Technical Specifications Lutron ORP-213 Digital ORP Meter

Specification	Details
Model	ORP-213
Display	LCD, size: 20 mm x 28 mm (reversible direction)
Measurement Parameter	ORP (Oxidation Reduction Potential)
Measurement Range	-1,000 mV to +1,000 mV
Resolution	1 mV
Accuracy	± (0.8% + 1 digit) for main instrument
Input Impedance	10^12 ohms
Sampling Time	Approximately 0.8 second
Operating Temperature	0°C to 50°C (32°F to 122°F)
Operating Humidity	Less than 80% RH
Power Supply	DC 1.5V battery (UM-4/AAA) x 4 PCs
Power Consumption	Approximately 4.8 mA
ORP Electrode Compatibility	Any ORP electrode with BNC connector
Meter Dimensions	180 x 40 x 40 mm (7.1 x 1.6 x 1.6 inch)
Electrode Dimensions	12.5 mm diameter x 150 mm length
Cable Length	Approximately 3 meters
Meter Weight	190 g/0.42 LB
Electrode Weight	88 g/0.2 LB
Water Resistance Rating	IP65
Certifications	ISO-9001, CE, IEC1010

Applications & Industry Uses Lutron ORP-213 Digital ORP Meter

Water Quality Management

• Swimming Pools & Spas - Monitor sanitizer effectiveness and water balance
• Aquariums & Fish Hatcheries - Ensure optimal water conditions for aquatic life
• Wastewater Treatment - Monitor oxidation processes and treatment effectiveness
• Drinking Water Systems - Verify disinfection levels and water quality
• Environmental Monitoring - Test natural water bodies and groundwater

Industrial Applications Lutron ORP-213 Digital ORP Meter

• Plating Baths - Control electroplating processes and solution quality
• Beverage Production - Monitor water quality throughout production
• Food Processing - Verify sanitizer effectiveness and water quality
• Photography - Control developing solution quality
• Quality Control - Ensure consistent redox conditions in various processes

Educational & Laboratory Use Lutron ORP-213 Digital ORP Meter

• Schools & Colleges - Support chemistry and environmental science education
• Research Laboratories - Provide accurate ORP measurements for experiments
• Field Research - Portable design ideal for environmental sampling
• Water Testing Labs - Professional-grade measurements for analytical work

Design & Operational Features

Professional Measurement Capabilities

The ORP-213 delivers laboratory-grade ORP measurement in a portable format:

• Full-Range Measurement - The -1,000 mV to +1,000 mV range covers all standard ORP applications
• High Precision - 1 mV resolution allows detection of subtle changes in oxidation-reduction potential
• Laboratory Accuracy - ±(0.8% + 1 digit) ensures reliable readings for critical applications
• High Input Impedance - 10^12 ohms ensures accuracy with minimal sample disturbance
• Rapid Results - 0.8-second sampling time provides quick measurements

Field-Ready Durability Lutron ORP-213 Digital ORP Meter

Engineered for reliable performance in challenging environments:

• IP65 Protection - Dust-tight and protected against water jets from any direction
• Heavy-Duty Construction - Rugged design withstands demanding field conditions
• Separate Electrode Design - Replaceable electrode extends instrument lifespan
• Extended Reach - 3-meter cable allows testing in hard-to-access locations
• Portable Power - Standard AAA batteries for easy replacement anywhere

User-Friendly Operation Lutron ORP-213 Digital ORP Meter

Thoughtful design elements enhance usability in various settings:

• Reversible Display - Button-activated display direction change for optimal viewing
• Data Hold Function - Freeze measurements for convenient recording
• Clear LCD Display - Large 20 x 28 mm screen ensures excellent readability
• Auto Power Off - Extends battery life during periods of inactivity
• Compact Form Factor - Pen-type design fits comfortably in hand
• Lightweight Construction - Total system weight under 300g for easy transport

Understanding ORP Measurement

What is ORP (Oxidation Reduction Potential)?

ORP measures a solution's ability to act as an oxidizing or reducing agent:

• Positive mV Values - Indicate oxidizing conditions (ability to accept electrons)
• Negative mV Values - Indicate reducing conditions (ability to donate electrons)
• Practical Applications - ORP serves as an important water quality parameter in various industries
• Measurement Units - Always expressed in millivolts (mV)

Common ORP Target Values Lutron ORP-213 Digital ORP Meter

Application	Typical Target ORP Range	Significance
Swimming Pools	650-750 mV	Effective sanitization
Drinking Water	650-800 mV	Proper disinfection
Freshwater Aquariums	250-450 mV	Healthy aquatic environment
Wastewater Treatment	Varies by process stage	Process control indicator
Metal Plating Baths	Application specific	Solution quality control

Package Contents & Accessories

Standard Package Includes: Lutron ORP-213 Digital ORP Meter

• ORP-213 Main Meter Unit - Professional pen-type digital ORP meter
• ORP-14 Electrode - Separate ORP electrode with 3-meter cable
• Instruction Manual - Comprehensive usage guide

Optional Accessories Available: Lutron ORP-213 Digital ORP Meter

• Model CA-52A - Soft carrying case with sash (210 x 80 x 50 mm)
• Model CA-06 - Hard carrying case (280 x 195 x 65 mm)
• Replacement ORP-14 - Additional or replacement electrode

Operation & Maintenance

Basic Operation Steps Lutron ORP-213 Digital ORP Meter

1. Connect the ORP-14 electrode to the meter via the BNC connector
2. Remove the protective cap from the electrode tip
3. Turn on the meter
4. Immerse the electrode in the sample solution
5. Allow the reading to stabilize
6. Record the measurement (use Data Hold if needed)
7. Rinse the electrode with distilled water after use
8. Replace the protective cap when storing

Maintenance Tips Lutron ORP-213 Digital ORP Meter

• Electrode Care - Rinse thoroughly after each use to prevent contamination
• Storage Conditions - Keep electrode tip hydrated in appropriate storage solution
• Battery Management - Replace all four AAA batteries when display begins to dim
• Cleaning - Wipe meter body with slightly damp cloth; never submerge main unit
• Calibration Check - Periodically verify accuracy with standard solutions

About Lutron Electronic Lutron ORP-213 Digital ORP Meter

Lutron Electronic is a leading manufacturer of professional test and measurement instruments, known for combining accuracy, durability, and user-friendly design. Their comprehensive product range serves diverse industries including environmental monitoring, laboratory testing, HVAC, electrical, and industrial applications. With ISO-9001 certification and compliance with CE and IEC1010 standards, Lutron demonstrates their commitment to quality and safety in all their measurement devices. The ORP-213 exemplifies Lutron's philosophy of providing professional-grade instruments that deliver reliable performance in both laboratory and field environments.

Summary Lutron ORP-213 Digital ORP Meter

The Lutron ORP-213 Digital ORP Meter represents an ideal balance of professional measurement capabilities, field durability, and user-friendly operation. With its comprehensive -1,000 to +1,000 mV range, IP65 water resistance, and detachable electrode design, this portable instrument delivers laboratory-grade ORP measurements in a practical, field-ready format. Key strengths include the high-resolution display with reversible direction, data hold function, extended 3-meter electrode cable, and universal BNC connector compatibility. Whether you're managing water quality in swimming pools or aquariums, monitoring industrial processes, or conducting environmental research, the ORP-213 provides the accuracy, reliability, and ease of use required for professional ORP measurement. With certification to international quality and safety standards, the Lutron ORP-213 delivers professional performance for diverse applications across water treatment, environmental management, education, and industrial sectors.
