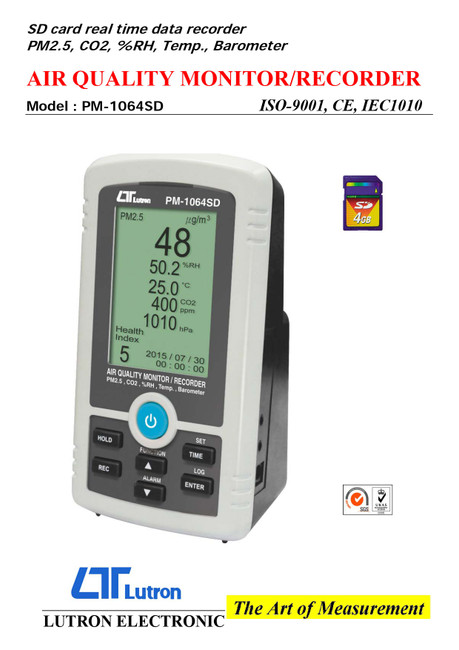

Lutron PM-1064SD Professional Air Quality Monitor & Data Recorder

The Lutron PM-1064SD is a comprehensive air quality monitoring system designed to track five critical environmental parameters in real-time. This ISO-9001 and CE certified instrument features SD card data logging capabilities, allowing you to capture, store, and analyze indoor air quality measurements with precision and ease.

Complete Indoor Air Quality Monitoring Solution

Monitor essential air quality parameters with a single device:

• PM2.5 (Particulate Matter) - Measure fine particle concentrations from 0 to 250 μg/m³
• Carbon Dioxide (CO2) - Monitor levels from 0 to 10,000 ppm
• Relative Humidity - Track moisture levels from 5 to 95% RH
• Temperature - Measure ambient conditions from 0 to 50°C (32 to 122°F)
• Barometric Pressure - Monitor atmospheric pressure from 10 to 1100 hPa (also in mmHg, inHg)

Ideal for Monitoring Air Pollution Sources

Perfect for detecting and tracking air pollutants from various sources:

• Dust and particulates
• Petrochemical industry emissions
• Steel-making plants
• Thermal power plants
• Restaurant kitchens
• Smoke and burning materials
• Automobile exhaust
• General indoor air quality assessment

Advanced Data Logging Capabilities

• Real-time data recording to SD memory card (supports 1GB to 32GB cards)
• Easy data transfer - slot the SD card into a computer to download readings directly to Excel
• Complete time-stamped records with year, month, date, hour, minute, and second
• Adjustable sampling rate from 2 seconds to 3600 seconds (1 hour)
• Manual data logging with location tagging (positions 1-99)
• RS232/USB computer interface for direct data transfer

Professional Design Features Lutron PM-1064SD PM2.5 & CO2 Air Quality Monitor with SD Card

• Large dot matrix LCD display (55.4 x 72.9 mm) with backlight
• PM2.5 time-weighted average reading
• Health index (0-9) detection and alarm
• Customizable alarm settings with audible alerts
• Data hold function to freeze readings
• Maximum and minimum value memory with recall
• Built-in clock and calendar
• Dual power options: 6 x AA batteries or included 9V DC adapter

Detailed Measurement Specifications Lutron PM-1064SD PM2.5 & CO2 Air Quality Monitor with SD Card

PM2.5 (Particulate Matter) Measurement

• Range: 0 to 250 μg/m³
• Resolution: 1 μg/m³
• Accuracy: ±(10% reading + 20 μg/m³)

Carbon Dioxide (CO2) Measurement

• Range: 0 to 10,000 ppm
• Resolution: 1 ppm
• Accuracy:
  • ±40 ppm for ≤1,000 ppm
  • ±(50 ppm + 3% of reading) for >1,000 ppm to ≤3,000 ppm
  • ±(50 ppm + 5% of reading) for >3,000 ppm to ≤10,000 ppm
• Repeatability: ±20 ppm for >3,000 ppm to ≤10,000 ppm

Humidity Measurement Lutron PM-1064SD PM2.5 & CO2 Air Quality Monitor with SD Card

• Range: 5 to 95% RH
• Resolution: 0.1% RH
• Accuracy: ±3% RH for <70% RH

Temperature Measurement Lutron PM-1064SD PM2.5 & CO2 Air Quality Monitor with SD Card

• Range: 0 to 50.0°C (32 to 122.0°F)
• Resolution: 0.1°C/0.1°F
• Accuracy: ±0.8°C/±1.5°F

Barometric Pressure Measurement

• Units: hPa, mmHg, inHg
• Range:
  • 10.0 to 1100 hPa
  • 7.5 to 825.0 mmHg
  • 0.29 to 32.48 inHg
• Resolution:
  • 0.1 hPa (10.0-999.9), 1 hPa (1000-1100)
  • 0.1 mmHg
  • 0.01 inHg
• Accuracy:
  • ±1.5 hPa (10.0-999.9), ±2 hPa (1000-1100)
  • ±1.2 mmHg
  • ±0.05 inHg

Technical Specifications

• Display: Dot matrix backlit LCD (128 x 240 pixels), 55.4 x 72.9 mm
• Sampling time: Approximately 1 second
• Data error: ≤0.1% of total saved data typically
• Power supply: 6 x AA batteries or included AC to DC 9V power adapter
• Power consumption: DC 135 mA (approximately), DC 150 mA with backlight ON
• Operating temperature: 0 to 50°C (32 to 122°F)
• Operating humidity: Less than 80% RH
• Weight: 385g/0.85 LB
• Dimensions: 164 x 93 x 72 mm (6.5 x 3.7 x 2.8 inches)

Package Includes

• PM-1064SD Air Quality Monitor/Recorder
• AC to DC 9V power adapter
• Instruction manual

Optional Accessories Lutron PM-1064SD PM2.5 & CO2 Air Quality Monitor with SD Card

• SD memory card (4 GB)
• USB cable (USB-01)
• RS232 cable (UPCB-02)
• Data Acquisition software (SW-U801-WIN, SW-E802)

Applications Lutron PM-1064SD PM2.5 & CO2 Air Quality Monitor with SD Card

The Lutron PM-1064SD is perfect for a wide range of air quality monitoring applications:

• Indoor air quality assessment in homes and offices
• Environmental monitoring in commercial spaces
• Industrial workplace safety monitoring
• Health and wellness evaluation in public buildings
• Educational demonstrations and research
• HVAC system performance verification
• Long-term air quality data collection and analysis Lutron PM-1064SD PM2.5 & CO2 Air Quality Monitor with SD Card

Elevate your indoor air quality monitoring with the professional-grade Lutron PM-1064SD - the comprehensive 5-in-1 instrument that delivers accurate PM2.5 and CO2 measurements with advanced data logging capabilities for thorough environmental analysis.
