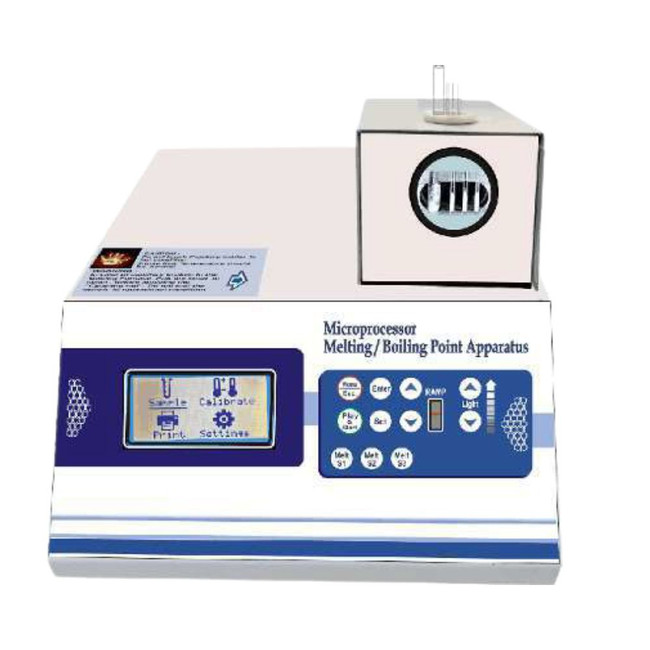

Melting and Boiling Point Apparatus SKY-1292/1293

₹55,000.00
(No reviews yet)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description

Melting and Boiling Point Apparatus SKY-1292/1293

Product Description The sources describe the SKY-1292 and SKY-1293 as Microprocessor Controlled Melting/Boiling Point Apparatus, suitable for analysing both dark coloured and any coloured samples. Both models feature a miniature furnace with automatic ramp rate of heating. They are equipped with front and rear glare-free illumination and a large magnifier to facilitate stain-free observation of the melting operation. The melting/boiling point reading can be held by activating a key, and this reading is protected from power failure. These apparatuses can also be used to measure the temperature effect on viscosity/flow points and molecular weights by Rast's method with suitable accessories. Melting and Boiling Point Apparatus Technical Specifications Melting and Boiling Point Apparatus
Feature SKY-1292 SKY-1293
Model No. SKY-1292 SKY-1293
Temp. Range Ambient to 350ºC Ambient +5ºC to 350ºC
Display 128 X 64 Graphical LCD Display 128 X 64 Graphical LCD
Resolution 0.1ºC 0.1ºC
Temp. Sensor Grade “A” PT-100, Platinum Sensor Grade “A” PT-100, Platinum Sensor
Sample Capacity 3+1 provision for Samples (one 6mm) Test Tube 3+1 provision for Samples (one 6mm) Test Tube (as per SKY-1292 specification)
Application Area Miniature Furnace Module Miniature Furnace Module (as per SKY-1292 specification)
Application Suitable for Boiling & Melting Point Suitable for Boiling & Melting Point (as per SKY-1292 specification)
Melting View Front & Rear Glare-free illumination and Large Magnifier Front & Rear Glare-free illumination and Stain free Observation with Camera
Hold Facility “HOLD” key activation “S1, S2 & S3” key for each sample
Power Failure Protection Reading protected until “RESET” is activated Reading protected
Serial Interface USB to PC USB to PC (as per SKY-1292 specification)
Memory 1000 Samples with Location 1000 Samples with Location (as per SKY-1292 specification)
Heating Control & Ramp Rate Automatic Ramp Rate of Heating Automatic Ramp Rate Heating
Power Supply 230 V ± 10% AC, 50 Hz 230 V ± 10% AC, 50 Hz (as per SKY-1292 specification)
Dimensions 36 X 29 X 24 Cm Not explicitly mentioned for SKY-1293, same as SKY-1292
Weight 6 Kg Not explicitly mentioned for SKY-1293, likely similar to SKY-1292
TFT Screen No High resolution camera for viewing capillaries
Friendly Asked Questions: Melting and Boiling Point Apparatus
  • Are you looking for a melting/boiling point apparatus that can handle both light and dark coloured samples?
  • Is a high level of temperature resolution (0.1ºC) important for your measurements?
  • Will you need to analyse multiple samples simultaneously? Both the SKY-1292 and SKY-1293 have provision for 3 samples plus one test tube. Melting and Boiling Point Apparatus
  • Do you require a visual aid beyond a magnifier for observing the melting process? The SKY-1293 offers a built-in camera and TFT screen.
  • Is it important to store a large number of readings with location details? Both models can store up to 1000 samples.
  • Will you need to connect the apparatus to a PC for data transfer? Both models have a USB interface.
  • Do you prefer an automatic ramp rate for heating, or would you require more control over the heating rate (though this is not explicitly detailed for these models, it's a point to consider)? Melting and Boiling Point Apparatus
