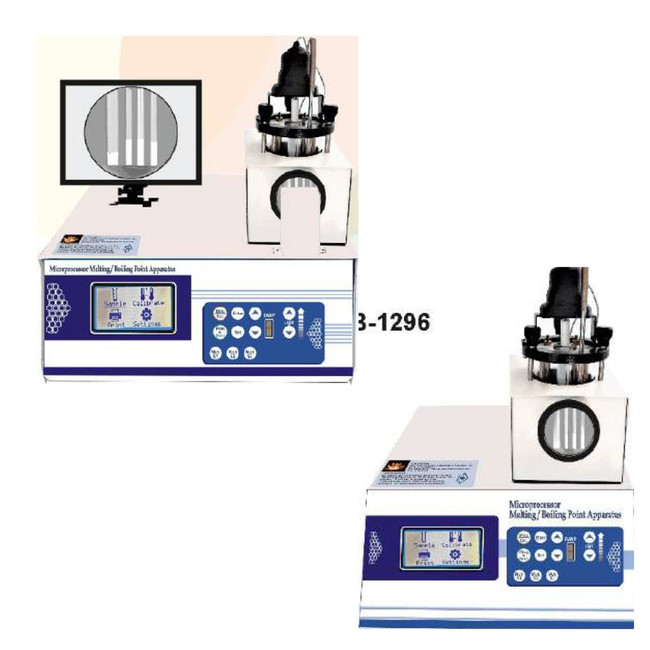

Product Description: Melting and Boiling Point Apparatus SKY-1296 and 1297 The Melting / Boiling Point Apparatus SKY-1296 is a Microprocessor Controlled instrument suitable for determining the melting and boiling points of both dark coloured and any coloured samples. It features selectable ramp rate heating and includes a built-in motorized stirrer with variable speed control for uniform temperature within the cylindrical silicon oil bath. The silicon oil bath has a capacity of approximately 200 ml and is covered with a Teflon top that has provisions for three capillaries and one 6mm test tube. The apparatus offers front and rear glare-free illumination and a large magnifier for clear observation of the melting operation. The melting or boiling point reading can be held by activating the "HOLD" key. It also has a USB to PC serial interface and can store 100 samples with location. Melting and Boiling Point Apparatus SKY-1296 and 1297 The Melting / Boiling Point Apparatus SKY-1297 has specifications that are the same as the SKY-1296, but it also includes a Camera View Attachment and TFT Display Screen to view samples in capillaries with a high-resolution camera. Technical Specifications: Melting and Boiling Point Apparatus SKY-1296 and 1297

Feature	SKY-1296
Model	SKY-1296	SKY-1297
Display	128 X 64 Graphical LCD	128 X 64 Graphical LCD
TFT Screen	Not applicable	High resolution camera for viewing capillaries
Temperature Range	Ambient to 300ºC	Ambient+5ºC to 300ºC
Resolution	0.1ºC	0.1ºC
Temperature Sensor	Grade “A” PT-100, Platinum Sensor	Grade “A” PT-100, Platinum Sensor
Sample Capacity	3+1 provision for Samples (one 6mm Test Tube)	3+1 provision for Samples (one 6mm Test Tube)
Application Area	Miniature Furnace Module	Miniature Furnace Module
Application	Suitable for Boiling & Melting Point	Suitable for Boiling & Melting Point
Motorized Stirring	Fitted for uniform Temp., variable speed	Fitted for uniform Temp., variable speed
Melting View	Front & Rear Glare-free illumination and Large Magnifier	Front & Rear Glare-free illumination and Stain free Observation
Hold Facility	Yes, by activating the “HOLD” key	Yes, by activating the “S1, S2 & S3” key for each sample
Temp. Control & Ramp Rate	Microprocessor controlled PID, Programmable 2ºC to 40ºC/minute	Microprocessor controlled PID, Programmable 2ºC to 40ºC/minute
Serial Interface	USB to PC	USB to PC
Memory	100 Samples with Location	100 Samples with Location
Power Supply	230 V ± 10% AC, 50 Hz	230 V ± 10% AC, 50 Hz
Dimensions	36 X 29 X 24 Cm (Approx.)	Not specified
Weight	15 Kg (Approx.)	Not specified

Frequently Asked Questions: Melting and Boiling Point Apparatus SKY-1296 and 1297

• What type of samples can be analysed using these apparatus? These apparatus are suitable for determining the melting and boiling points of both dark coloured and any coloured samples.
• What is the maximum temperature that can be reached? The SKY-1296 has a maximum temperature range of 300ºC, while the SKY-1297 has a range of Ambient+5ºC to 300ºC.
• Is the heating rate controllable? Yes, both models offer microprocessor-controlled PID heating with programmable ramp rates that can be adjusted between 2ºC and 40ºC per minute.
• Do these apparatus have a stirring mechanism? Yes, both models are equipped with a built-in motorized stirrer with variable speed control to ensure uniform temperature within the silicon oil bath.
• How are the melting/boiling points observed? Both units feature front and rear glare-free illumination and a large magnifier for clear observation. The SKY-1297 also includes a high-resolution camera and TFT display screen for viewing the samples in the capillaries. Melting and Boiling Point Apparatus SKY-1296 and 1297
• Can the results be stored? Yes, both the SKY-1296 and SKY-1297 can store up to 100 samples with their location.
• Is there a facility to record data on a computer? Yes, both models are equipped with a USB to PC serial interface for data transfer.
• What type of temperature sensor is used? Both apparatus use a Grade “A” PT-100 platinum sensor for accurate temperature measurement. Melting and Boiling Point Apparatus SKY-1296 and 1297
• What is the sample capacity of the apparatus? Both models have provision for three capillaries and one 6mm test tube for determining melting and boiling points. Melting and Boiling Point Apparatus SKY-1296 and 1297
• What is the power supply requirement? The required power supply for both models is 230 V ± 10% AC, 50 Hz.
