Microprocessor pH Ion Meter 1016

Microprocessor pH Ion Meter 1016

EI-OCTOVISION
SKU:
EI-1016
₹70,900.00
(No reviews yet)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description

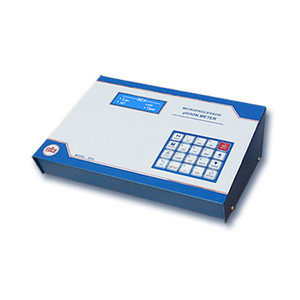

Microprocessor pH Ion Meter 1016

Features Microprocessor pH Ion Meter 1016

  • Ion, pH, mV, Temperature
  • 20 x 4 line Alphanumeric LCD with backlit
  • 20 keys, Soft Touch Membrane Type
  • Storage Up to 999 Samples
  • Attachment for Centronics Dot Matrix Printer
  • Ps2 keyboard connectivity
  • Password protection for calibration
  • Calibration due & Measurement alarms
  • User friendly & reliable
  • Upto 5 point of Calibration with auto buffer recognition
  • Automatic error detection facility
  • High accuracy & auto temperature compensation
model-1016
Image-zoom
MICROPROCESSOR BASED PH/ION METER – 1016 is a solid state instrument designed to provide the precise Ion concentration, pH, mV, relative mV, &  Temperature measurements. The instrument uses the latest Microprocessor  technology and advanced engineering techniques so as to give enhanced accuracy and reproducibility. The system has user friendly prompts which guide you through out the measurement process. Microprocessor pH Ion Meter 1016
The system has 20 soft touch membrane type keys for ease of operation. It has the storage facility for 999 samples, which are retained in the memory even when the system is switched OFF. Provision has been provided for attachment of centronics dot matrix  printer so that any of the stored results can be printed. Provision has also been provided for attachment of PS2 keyboard so that ease of typing and use of alphanumeric keypad. These meters are equipped with a large customized LCD (Liquid Crystal Display) with simultaneous display of the measured values for easy reading. Microprocessor pH Ion Meter 1016
The instrument is extremely useful for agriculture and soil analysis laboratories, swimming pools, water quality control in boiler feed water, water works department, fertilizer plants, petroleum refineries, breweries, water purification plants etc.

Specifications Microprocessor pH Ion Meter 1016

pH
Range -1.000 to 14.000 pH
Resolution 0.001 / 0.01 pH (user-selectable)
Accuracy ± 0.002 / ±0.01 pH
Calibration 1 to 5 points (standard buffers)
pH Buffer Set Options USA : pH 1.68, 4.01, 7.00, 10.01,12.45 NIST: pH 1.68, 4.01, 6.86, 9.18 ,12.45 Bf1: pH 1.68, 4.01, 6.86, 10.01, 12.45 Bf2: pH 1.68, 4.01, 7.00, 9.18, 12.45 Custom entry Buffer Calibration
Relative Stability ± 0.002 pH/Hour
Temperature Compensation -5 to 105 °C
mV/ Relative mV
Range – 1999.9 to 1999.9 mV
Resolution 0.1 mV
Accuracy ± 0.2 mV
Calibration mV offset up to ± 150 mV
Temperature
Range -5.0 to 105.0 °C
Resolution 0.1 °C
Accuracy ± 0.3 °C
Calibration Automatic Temperature compensation offset ±5.0°C
Sensor Semi Conductor Type
Ion Concentration
Range 0.001 to 19999
Resolution (High resolution mode: ±500.0 mV) 0.001 : from 0.001 to 0.999,       0.01 : from 1.00 to 9.99 0.1 : from 10.0 to 99.9,       1 : from 100 to 19999
Resolution (Low resolution mode: ±1850.0 mV) 0.001 : from 0.001 to 0.099,      0.01 : from 0.10 to 0.99 0.1 : from 1.0 to 9.9 ,      1 : from 10 to 19999
Accuracy ± 0.5% of full scale for monovalent ions
Calibration 1% of full scale for divalent ions, 2 to 5 points
Min./ Max. Average Slope 10 mV/deacde / 75mV/ decade
