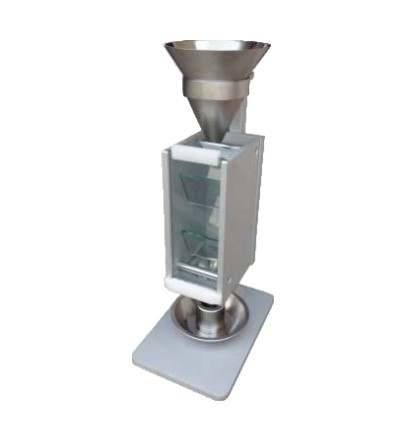

Powder Flow Meter PF 922

Powder Flow Meter PF 922

The ESICO International Powder Flow Meter (Model PF 922) is a precision instrument designed for measuring the bulk density of fine powders and similar materials in pharmaceutical, chemical, and research laboratories. This ISO 9001:2015 certified apparatus fully complies with USP, Ph.Eur., and ASTM specifications, making it an essential tool for quality control and formulation development.

Key Advantages

• Standardized Testing - Complies with USP, Ph.Eur., and ASTM specifications
• Precision Measurement - Accurately measures bulk density of fine powders
• Specialized Design - Includes specially designed spatula that prevents powder packing
• Flow Analysis - Useful in calculating powder flow-ability index
• Standardized Methodology - Enables Scott apparent density measurement
• Easy Operation - Stable stand supports the top funnel and baffle box
• Simple Calculations - Results expressed in g/ml for straightforward density determination
• Quality Assurance - ISO 9001:2015 certified with 1-year warranty

Technical Specifications Powder Flow Meter PF 922

Component	Specification
Top Funnel	Stainless Steel Conical Funnel with 16-Mesh & 1.03mm Opening
Baffle	Stainless Steel Construction
Density Cups Quantity	4 Nos.
Density Cups Material	Glass
Cylindrical Volume	25.00 ml ± 0.05 ml
Inner Diameter	30.00 mm ± 2.00 mm
Cube Volume	16.39 ml ± 0.2 ml
Cube Size	25.4 mm ± 0.076 mm
Instrument Stand	Supports top funnel and baffle box, level & vibration free
Warranty	1 Year

Working Principle Powder Flow Meter PF 922

The Powder Flow Meter operates on the Scott Volumeter principle to measure apparent density:

1. Powder is poured through the top conical funnel
2. Material cascades over a series of inclined plates in the baffle box
3. The powder fills the standardized density cup below
4. Excess powder is removed with the specialized spatula without compacting the material
5. The filled cup is weighed, and bulk density is calculated in g/ml

This standardized procedure ensures that the loose condition of the powder is consistent for reliable and reproducible density measurements across different samples and operators.

Applications Powder Flow Meter PF 922

The PF 922 Powder Flow Meter is essential for various industrial and research applications:

Pharmaceutical Industry

• Formulation development of tablets and capsules
• Quality control of raw materials and finished products
• Determination of powder flow characteristics for process optimization

Chemical Industry Powder Flow Meter PF 922

• Characterization of fine powders and granular materials
• Research and development of new powder formulations
• Quality assurance of powder products

Academic and Research Laboratories Powder Flow Meter PF 922

• Materials science research
• Powder technology studies
• Educational demonstrations

Compliance and Quality Powder Flow Meter PF 922

The ESICO International Powder Flow Meter PF 922 is manufactured under strict quality control procedures in compliance with ISO 9001:2015 standards. The instrument meets the specifications outlined in:

• United States Pharmacopeia (USP)
• European Pharmacopoeia (Ph.Eur.)
• American Society for Testing and Materials (ASTM) standards

This compliance ensures that test results are accepted by regulatory authorities and can be used in official documentation and submissions.

Included Components Powder Flow Meter PF 922

• Stainless steel conical funnel with 16-mesh and 1.03mm opening
• Stainless steel baffle box
• 4 glass density cups
• Specialized spatula for excess powder removal
• Stable support stand
• Comprehensive instruction manual
