How a Polarimeter Works - Principles of Optical Rotation

A polarimeter is an essential analytical instrument widely used in chemistry, pharmaceuticals, food science, and research laboratories to measure the optical rotation of optically active substances. When certain substances such as sugars, essential oils, amino acids, and chiral organic compounds—interact with polarized light, they cause the light to rotate either to the left or right. This rotation provides extremely valuable information about the substance’s identity, concentration, purity, and structural characteristics.
Understanding how this instrument works can help scientists and technicians perform accurate measurements and ensure high-quality analytical results.

What Is Optical Rotation?

Optical rotation refers to the rotation of the plane of polarized light as it passes through a sample containing optically active molecules. These molecules lack a plane of symmetry, meaning their mirror images are non-superimposable—just like your left and right hands. Such molecules are usually referred to as chiral compounds.

The direction of rotation determines the type of optical activity:

1. Dextrorotatory (+)

These substances rotate the polarized light clockwise, or to the right.
They are represented using the symbol (+) or sometimes ‘d’.

2. Levorotatory (–)

These substances rotate the polarized light counter-clockwise, or to the left.
They are represented using the symbol (–) or ‘l’.

The magnitude of optical rotation depends on several measurable parameters:

• Nature of the substance – each optically active material has a characteristic rotation.


• Concentration of the solution – higher concentration typically increases rotation.


• Wavelength of light – standard polarimeters use 589 nm sodium light.


• Length of the sample tube – longer path length increases rotation.


• Temperature – optical rotation varies with temperature, requiring compensation.



Basic Principle of a Polarimeter

A polarimeter works on a simple yet powerful principle:

Plane-polarized light passes through an optically active sample and the instrument measures the angle by which the light is rotated.

To achieve this, a polarimeter consists of the following components:

1. Light Source

Traditional polarimeters use a sodium vapor lamp, which emits monochromatic light at 589 nm, ideal for optical rotation studies. Modern digital polarimeters use LED light sources, which are energy-efficient, stable, and long-lasting.

2. Polarizer

A polarizer is an optical filter that converts ordinary light into plane-polarized light—light that vibrates in a single plane.

3. Sample Tube

The sample is filled in a transparent tube of known length (usually 1 dm or 2 dm). The longer the tube, the greater the rotation.

4. Analyzer

An analyzer is a second polarizer placed after the sample tube. It rotates to determine how much the light has been rotated by the sample.

5. Detector / Display

The final stage includes a photodetector and a digital display.
The system measures the angle of rotation precisely and shows the reading in degrees.

How a Polarimeter Works Step-by-Step Explanation

Understanding the sequence of events inside a polarimeter can help users interpret results more accurately:

Step 1: Light Emission

The instrument’s lamp or LED generates a beam of monochromatic light. This ensures only a single wavelength is used, eliminating interference.

Step 2: Polarization of Light

The light passes through a polarizer, producing plane-polarized light. At this point, the vibrations of light waves are aligned in one direction.

Step 3: Interaction with the Sample

The polarized light enters the sample tube filled with the optically active substance. If the sample contains chiral molecules, the orientation of the light plane changes—either to the left or right.

Step 4: Rotation Measurement

The analyzer rotates until maximum light passes through it.
The instrument determines how many degrees the analyzer had to rotate to achieve this maximum illumination.

Step 5: Output Display

The rotation angle is displayed digitally.
This value is often used with the specific rotation formula to calculate concentration or purity.

Specific Rotation Formula

Polarimetry uses the following equation to relate optical rotation to the physical properties of the sample:

[α]= α / l * c

Where:

• [α] = Specific rotation


• α = Observed rotation (angle measured)


• l = Path length (dm)


• c = Concentration (g/mL or %)



Using this formula, laboratories can determine:

• Concentration of sugars


• Purity of pharmaceutical intermediates


• Strength of essential oils


• Identity of chiral compounds



Applications of Polarimeters

Polarimeters play a significant role in a wide range of industries and research areas:

1. Sugar Industry

Used extensively to measure the sugar concentration (Brix value) in solutions. Refineries and food manufacturers rely on polarimetry for quality control.

2. Pharmaceutical Analysis

Many drugs contain optically active molecules. Polarimeters help determine purity, enantiomeric excess, and concentration during synthesis and quality testing.

3. Chemical Manufacturing

Chiral synthesis and organic chemistry rely on polarimetry to analyze reaction progress and molecular structure.

4. Food and Beverage Quality Control

Honey, fruit juices, dairy products, and wine contain optically active components that can be monitored using polarimeters.

5. Academic & Research Laboratories

Students and researchers use polarimeters to understand stereochemistry, chirality, and optical activity.

Advantages of Modern Digital Polarimeters

Modern polarimeters offer several benefits compared to older manual designs:

• High measurement precision with minimal human error


• Stable LED light sources with longer lifespan


• Automatic temperature compensation for accurate readings


• Fast measurement speeds ideal for high-throughput QC


• User-friendly digital interface and data export options


• Easy calibration using certified standards



These features make digital polarimeters essential tools in routine analysis, quality control, and R&D environments.

Polarimeters  Explore Our Complete Range

Below is a quick overview of all models along with direct links so you can compare features and choose the right instrument for your workflow.

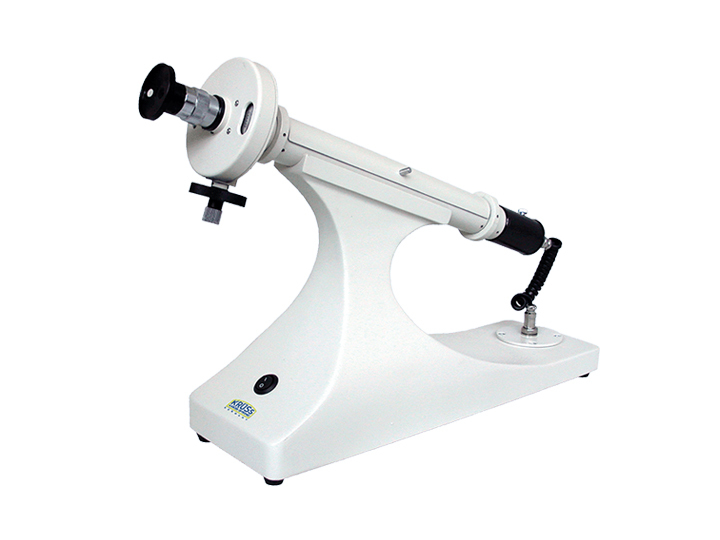

KERRO Manual Disc Polarimeter – WXG-4

Highlights:

• Manual visual rotation measurement


• ±180° range with clear vernier


• Stable LED 589 nm light source


• Durable metal body


• Includes 100 mm & 200 mm tubes



Best For: Education, food/sugar QC, chemicals, pharma labs.

ADVANCE Automatic Digital Polarimeter – Sucro Pol D

Highlights:

• Fully automatic, no manual shadow matching


• Measures Angular, ISS, Specific Rotation & Concentration


• High-accuracy, heavy-duty design


• Works with dark samples


• USB & RS-232 data output



Best For: Sugar mills, pharma QC, R&D, essential oils, food industry.

ADVANCE Semi Automatic Polarimeter – SAP-2

Highlights:

• Semi-automatic measurement


• Bright, stable light source


• Clear angular scale for easy reading


• Reliable for routine QC


• Strong and durable design



Best For: Education labs, sugar analysis, pharmaceuticals, chemicals.

ADVANCE Manual Polarimeter – PA-2

Highlights:

• Half Shadow / Triple Shadow options


• ±0.05° accuracy, 0–360° scale


• Integrated lighting system


• Tropic-proof optics


• Supports 220 mm tubes



Best For: Pharma QC, essential oils, food & sugar testing.

ADVANCE Manual Polarimeter – PA-1R (Standard Model)

Highlights:

• Triple shadow eyepiece for high accuracy


• Full 0–360° angular scale


• 0.05° vernier readability


• Integrated lighting assembly


• Accepts 220 mm sample tubes



Best For: Pharma, chemicals, food/sugar industry, academics.

Deluxe Manual Polarimeter – PA-1R (EUTECH)

Highlights:

• High-resolution imported eyepiece


• Integrated monochromatic light source


• ±180° range, 0.05° readability


• All-metal stable body


• Includes 100 mm & 200 mm tubes



Best For: Education, pharmaceuticals, sugar labs, food & beverage analysis.

Conclusion

Polarimeters are indispensable instruments for analyzing optically active substances by measuring their optical rotation. By understanding their working principle, components, and applications, laboratory professionals can ensure accurate and reproducible results. Whether used in the sugar industry, pharmaceuticals, food testing labs, or academic institutions, polarimeters continue to be vital tools in optical analysis and chemical research.
