KERRO Manual Disc Polarimeter

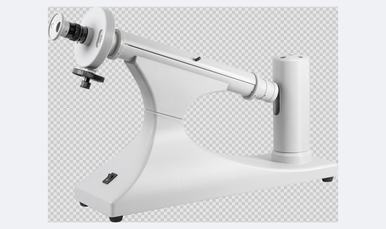

KERRO Manual Disc Polarimeter (Model: WXG-4)
The KERRO WXG-4 is a reliable and user-friendly manual polarimeter designed for accurately measuring the optical rotation of optically active substances. It is an essential instrument for educational purposes and for straightforward quality control applications in the food, sugar, chemical, and pharmaceutical industries. This instrument operates on the principle of visual null-point detection. The user looks through the eyepiece and manually rotates the analyzer disc until the split-field of view appears uniformly illuminated. The optical rotation value is then read directly from the clear, easy-to-read scale with a vernier, providing a measurement range of ±180°. A key modern feature of the WXG-4 is its long-lasting and stable LED light source. Unlike traditional sodium lamps, the LED provides consistent monochromatic light instantly, requires no warm-up time, generates minimal heat, and has a significantly longer lifespan, reducing maintenance and operational costs. The robust metal construction ensures durability and stability for daily laboratory use. Key Features: KERRO Manual Disc Polarimeter
- Precise Manual Measurement: Utilizes a classic visual method with a rotating analyzer disc and a vernier scale for direct, accurate readings.
- Wide Measurement Range: Covers a full optical rotation range of ±180°, suitable for analyzing a wide variety of samples.
- Stable LED Light Source: The modern, energy-efficient LED provides a stable 589 nm wavelength light source for consistent and reliable measurements. KERRO Manual Disc Polarimeter
- Clear Vernier Scale: The high-precision engraved scale allows for a readability of 0.05°, ensuring accurate results.
- High-Quality Optics: The optical system provides a sharp, bright, and easy-to-interpret split-field view for precise determination of the rotation angle. KERRO Manual Disc Polarimeter
- Robust and Compact Design: Built with a durable housing to withstand daily use while maintaining a small footprint on the lab bench.
What's in the Box: KERRO Manual Disc Polarimeter
- KERRO WXG-4 Polarimeter Main Unit
- Sample Tube (100 mm length)
- Sample Tube (200 mm length)
- Spare Sealing Rings
- Dust Cover
- Power Cord
- Instruction Manual
Product Specifications
| Specification | Detail |
|---|---|
| Product Model | WXG-4 |
| Brand | KERRO |
| Measurement Mode | Optical Rotation |
| Measurement Range | ±180° |
| Scale Division | 1° |
| Vernier Readability | 0.05° |
| Light Source | LED (with 589 nm filter) |
| Eyepiece | Monocular, Focusing |
| Sample Tube Lengths | 100 mm and 200 mm |
| Power Supply | 220V / 50Hz (or as per regional standard) |
Ideal Applications:
- Sugar Industry: Measuring the concentration of sugar solutions (saccharimetry).
- Pharmaceuticals: Checking the purity and concentration of chiral compounds.
- Food & Beverage: Analyzing sugars, syrups, and flavoring agents.
- Chemical Industry: Studying optically active reagents and products.
- Educational Institutions: Demonstrating the principles of optical activity in chemistry and physics labs.
"
