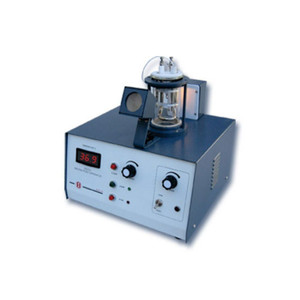

Electronics India Digital Melting Point Apparatus Model 935 | 0.1°C Resolution | 0-300°C Range

Electronics India Digital Melting Point Apparatus Model 935 | 0.1°C Resolution | 0-300°C Range

EI-DVI
SKU:
EI-MEL-935
₹43,900.00
(No reviews yet)
Current Stock:
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Request Quote
Description
Product Overview and Application:

The Digital Melting Point Apparatus Model 935, manufactured by Electronics India (EI), is a specialized laboratory instrument designed for the accurate measurement and observation of melting points and melting ranges of solid samples. The determination of a substance's melting point is crucial for identifying pure substances and verifying sample purity in various scientific fields.
This apparatus is particularly useful for the Pharmaceutical Industry, where assessing the purity of active pharmaceutical ingredients (API) and ensuring adherence to specifications is vital for drug safety and efficacy.
Advanced Measurement Technology
The Model 935 is engineered for high accuracy and ease of operation. It uses a digital temperature indicator equipped with a PT100 RTD sensor.

Precision Heating and Temperature Control:

The core system involves a 200 ml capacity silicon oil-bath covered with a PTFE or Teflon cover. Uniform heating across the bath is ensured by an in-built magnetic stirrer, with the stirrer speed being controllable via a front knob. An electronic controller allows for precise adjustment of the silicon oil-bath heating rate.
Digital Display and Resolution
Model 935 offers high resolution and clear visibility. It utilizes a 4 Digit, 7-Segment LED Display. The digital readout provides a high resolution of 0.1 °C, enabling precise recording of the melting range.
Observation and Operation
The apparatus features a large magnifier and a glare-free background illuminator to facilitate stain-free observation of the sample as it melts inside the capillary tube.

Operational control includes:

• Start Switch: Used to initiate the measurement of the melting point.
• Stop Switch: Used to halt the measurement once the sample has melted, with the display showing the last temperature recorded.
• Clear Switch: Used to reset the display reading to zero.

Specifications:

Feature
Specification (Model 935)
Brand
Electronics India (EI)
Model
935
Type
Digital Melting Point Apparatus
Temperature Range
0 – 300 °C
Resolution
0.1 °C
Display
4 Digit, 7-Segment LED Display
Heating System
Silicon Oil-Bath (200 ml capacity) with Oil Immersion Heater
Stirring
In-built Magnetic Stirrer, speed controllable with front knob
Temperature Sensor
PT100 RTD sensor
Observation
Glare-free Illuminator and Large Magnifier
Capillary Tube Size
75 mm long, 0.8 – 1.1 mm internal diameter
Boiling Point Tubes
75 mm long glass tube
Recommended Sample Amount
Fine, dry powder, 4 – 6 mm high in the tube
Power
230 V ± 10% AC, 50 Hz
Dimensions (L x B x H)
315 x 290 x 230 mm (Approx.)
Weight
12 Kg (Approx.)
Outer Body Material
Plastic (or Mild Steel/Rectangular shape in some listings)

Included Accessories and Components:

The apparatus comes complete with necessary accessories for immediate use. These typically include:
• A box of Capillaries.
• Boiling Point Tubes (usually 2 sets).
• Thermometer with a range of 0 – 360 °C.
• Magnetic Capsule.
• Bottle of Silicon Oil (e.g., 250 ml).
• Glass Cylindrical Beaker with Teflon/PTFE cover fitted with an immersion heater.
• Operation Manual and Dust Cover.
