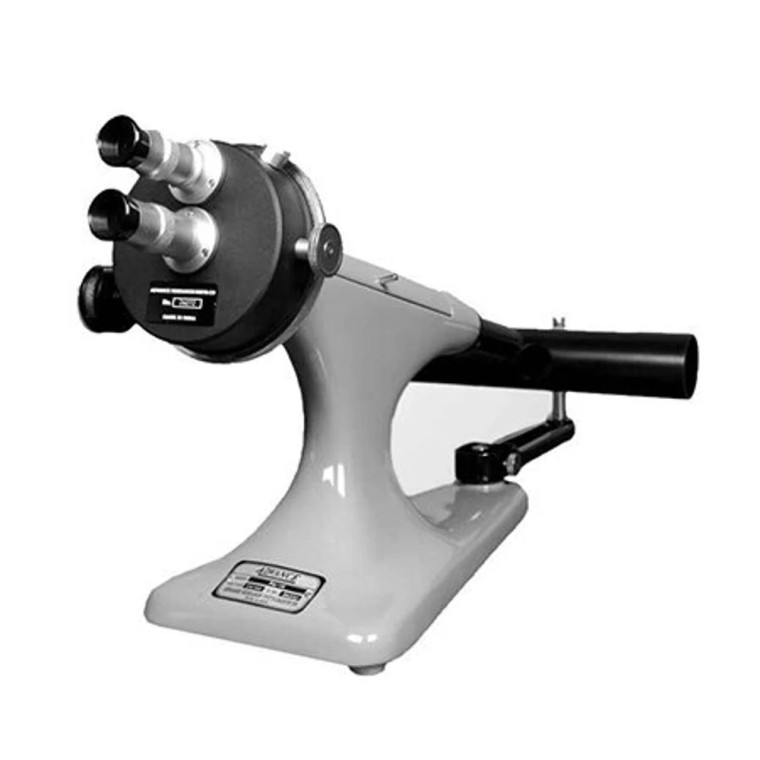

ADVANCE MAKE Model PA-2 triple shadow 220mm standard Model with integrated power supply

ADVANCE Manual Polarimeter Model PA-2

ADVANCE
SKU:
APA2
₹54,500.00
(No reviews yet)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description

ADVANCE Manual Polarimeter Model PA-2

Drawing on 40 years of manufacturing experience, the ADVANCE PA-2 is a precision manual polarimeter designed for the accurate determination of optical rotation. It is a reliable workhorse for routine analysis in a wide range of industries, including pharmaceuticals, chemicals, essential oils, and foodstuffs. ADVANCE Manual Polarimeter Model PA-2 The PA-2 is available with either a Half Shadow or a Triple Shadow optical system, allowing laboratories to choose the best option for their applications. The highly sensitive Triple Shadow system, in particular, offers superior definition and permanent focus even with difficult or dark liquids, ensuring high accuracy, repeatability, and strain-free viewing for the operator. Designed for durability and performance in all environments, the instrument features tropic-proof optics that resist the influences of hot and humid climates. A key modern feature is the Integrated Lighting System, which replaces the traditional bulky sodium lamp. This provides the advantage of immediate, stable illumination while saving valuable table space and electrical power. The instrument features a full 0-360° angular scale with a high accuracy of ±0.05°. ADVANCE Manual Polarimeter Model PA-2 Key Features: ADVANCE Manual Polarimeter Model PA-2
  • Choice of Optical System: Available with either a standard Half Shadow or a high-sensitivity Triple Shadow system.
  • High Accuracy: Provides a precise angular scale accuracy of ±0.05° for reliable results.
  • Full Angular Scale: Features a complete 0-360° scale for analyzing all types of optically active substances.
  • Integrated Light Source: A self-contained, modern lighting system offers instant-on, stable illumination in a compact design.
  • Robust and Tropic-Proof: The optical system is designed to perform reliably even in hot and humid climates.
  • Accommodates 220 mm Tubes: The sample chamber is designed for standard observation tubes up to 220 mm in length.

Product Specifications ADVANCE Manual Polarimeter Model PA-2

Specification Detail
Model No. PA-2
Brand ADVANCE
Tube Length (Maximum) 220 mm
Shadow System Half Shadow or Triple Shadow
Angular Scale 0-360°
Angular Scale Accuracy ±0.05°
Light Source Integrated Light
Size 27" x 13 1/2" x 14 1/2"
Weight 11 kg
Ideal Applications: ADVANCE Manual Polarimeter Model PA-2
  • Quality control of pharmaceuticals and chemicals.
  • Testing of essential oils and flavorings.
  • Analysis of sugars and foodstuffs.
  • Use in brewery production.
  • Educational and research laboratories.
