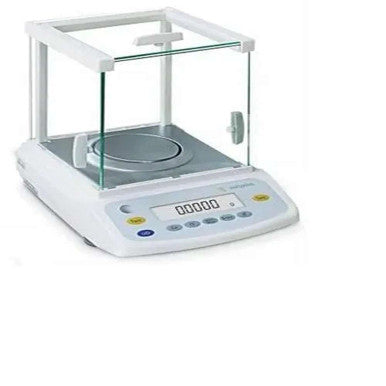

Sartorius BSA224S-CW Electronic Analytical Balance

The Sartorius BSA224S-CW is a high-precision analytical balance designed for professional laboratory applications requiring exceptional accuracy and reliability. With built-in motorized calibration, comprehensive features, and intuitive operation, this premium balance delivers consistent performance for demanding weighing tasks.

Key Performance Features

• Superior Precision - 0.1mg readability with 220g capacity for accurate measurements
• Built-in Motorized Calibration Weight - Ensures accurate calibration without external weights
• Backlit 14-Segment Display - Clear visibility of weighing results in any lighting condition
• Fast Response Time - Average 2.5 second stabilization for efficient workflows
• Dual Tare Keys - Convenient tare function accessibility during operation
• Stability Indicator - Visual confirmation of stable weighing results
• 4 User-Selectable Filter Levels - Adaptable to different environmental conditions
• Optimized Display Update Rate - Responsive readings for dynamic weighing tasks

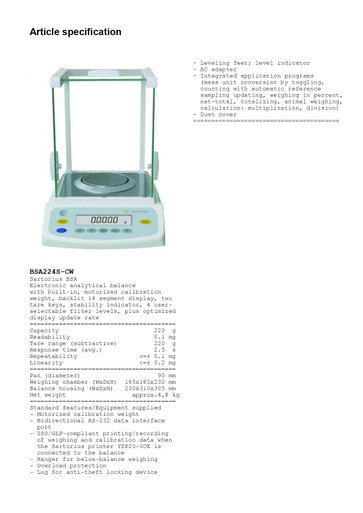

Technical Specifications Analytical Balance with Motorized Calibration

Capacity	220 g
Readability	0.1 mg
Tare Range (Subtractive)	220 g
Response Time (Average)	2.5 s
Repeatability	≤±0.1 mg
Linearity	≤±0.2 mg

Physical Specifications

• Weighing Pan - 90 mm diameter
• Weighing Chamber Dimensions - 185 x 182 x 230 mm (W x D x H)
• Balance Housing Dimensions - 230 x 310 x 305 mm (W x D x H)
• Net Weight - Approximately 4.8 kg

Standard Features & Equipment Analytical Balance with Motorized Calibration

• Integrated Calibration System - Motorized internal calibration weight for reliable accuracy
• Data Connectivity - Bidirectional RS-232 data interface port for computer or printer connection
• GLP/ISO Compliance - Documentation capabilities when connected to Sartorius printer YDP20-0CE
• Below-Balance Weighing - Integrated hanger for specialized weighing applications
• Safety Features:
  • Overload protection to prevent damage from excessive weight
  • Lug for anti-theft locking device to secure the balance
  • Leveling feet and built-in level indicator for proper setup
• Accessories Included:
  • AC adapter for reliable power supply
  • Protective dust cover to maintain cleanliness

Integrated Application Programs

Versatile functionality with built-in applications for specialized weighing tasks:

• Mass Unit Conversion - Toggle between different weight units
• Counting - Piece counting with automatic reference sample updating
• Percentage Weighing - Display results as percentage of reference weight
• Net-Total Formulation - Compound formulations with cumulative totals
• Totalizing - Add multiple measurements for combined results
• Animal Weighing - Special mode for unstable samples (moving animals)
• Calculation Functions - Built-in multiplication and division capabilities

Laboratory Benefits Analytical Balance with Motorized Calibration

• Accuracy Assurance - Internal motorized calibration eliminates the need for external weights
• Workflow Efficiency - Fast response time and user-friendly interface improves productivity
• Environmental Adaptability - Four filter levels adjust performance to laboratory conditions
• Documentation Compliance - GLP/ISO printing capabilities for regulatory requirements
• Application Versatility - Multiple integrated programs reduce the need for additional equipment
• Space Optimization - Compact footprint with full analytical capabilities
• Durability - Robust construction with protective features for long service life

Ideal Applications Analytical Balance with Motorized Calibration

The Sartorius BSA224S-CW analytical balance is perfectly suited for: Analytical Balance with Motorized Calibration

• Research and development laboratories
• Quality control departments
• Pharmaceutical testing
• Chemical analysis
• Academic institutions
• Food safety testing
• Environmental analysis

Experience exceptional weighing precision and reliability with the Sartorius BSA224S-CW analytical balance, designed to meet the most demanding laboratory requirements with its combination of accuracy, functionality, and ease of use.
