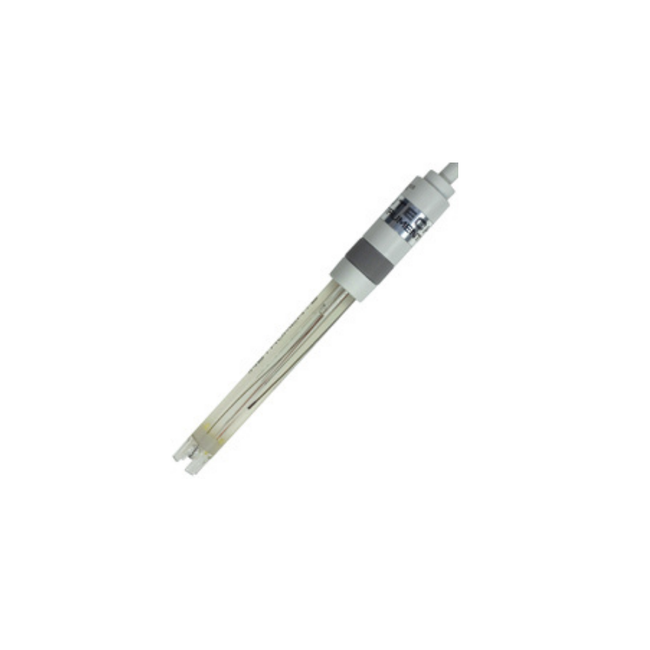

ECFC7352901B Combination Electrode general purpose plastic body atc ph/temp

ECFC7352901B Combination Electrode General Purpose Plastic-body ATC pH/Temp. , 12x90mm, BNC , 1m for Tutor DS

SKU:
EUT-ELE-ECFC7352901B
₹16,225.00 (Including GST)
(No reviews yet)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Quote Request
Description

ECFC7352901B Combination Electrode

Product Features

  • 3-in-1 Design - Combined pH and temperature measurement in a single electrode
  • Temperature Sensor - Built-in temperature sensor for automatic temperature compensation
  • Maintenance-Free - Sealed reference system requires no refilling
  • Wide pH Range - Measures from 1 to 13 pH for most laboratory applications ECFC7352901B Combination Electrode
  • Temperature Range - Operates from 0 to 80 °C for diverse applications
  • HDPE Junction - Porous HDPE pin junction for reliable measurements
  • Ag/AgCl Reference - High-quality internal Ag/AgCl reference system
  • Compact Design - Efficient 90 x 12 mm shaft dimensions for versatile use
  • Dual Connector - Features BNC connector for pH and 2.5 mm phono for temperature

Specifications ECFC7352901B Combination Electrode

Product Specification Description
Parameter pH / Temperature ECFC7352901B Combination Electrode
Range 1 to 13 pH
Temperature Range 0 to 80 °C
Liquid Junction Type Porous HDPE pin
Internal Reference Type Ag/AgCl
Reference Junction Single
Sealed/Refillable Sealed
Refilling Reference Electrolyte –
Dimensions (Shaft) 90 x 12 mm
Cable Length 1 m
Connector BNC & 2.5 mm phono
Description General purpose plastic-body “3-in-1” pH / Temperature combination electrode
Used With pH 5 / pH 6 / pH 5+ / pH 6+ / pH 11 / pH 110 / pH 510 / pH 700 / pH 1100 / pH 2100 / pH 2700 / Ion 6 / Ion 6+ / Ion 510 / Ion 700 / Ion 2700 / PC 2700
