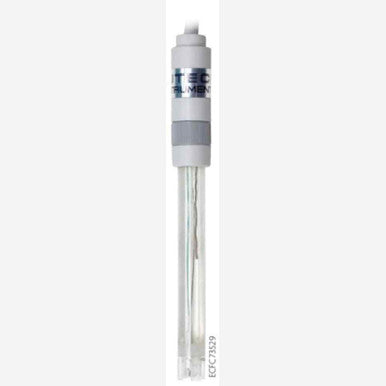

Eutech ECFC7352901B 3-in-1 pH Temp Electrode

Eutech ECFC7352901B 3-in-1 pH Temp Electrode

The ECFC7352901B is a plastic body "3-in-1" pH/Temp (30Kohm) combination electrode with an Ag/AgCl reference. It is a sealed type electrode. This electrode is specifically noted as being for use with certain Eutech meter models including pH 5/6, Ion 6, pH 11/110, pH 510, Ion 510, and pH 2100/1100. Eutech's plastic body combination electrodes are suitable for a wide range of general purpose laboratory and field applications. The plastic housing is made of speciality engineering plastic that offers high impact resistance and can withstand rugged use up to 3 bar pressure and temperatures up to 80°C. The glass pH bulb is recessed for protection, enhancing durability. This model is a single junction, sealed (gel-filled) type.

Specification	Detail Eutech ECFC7352901B 3-in-1 pH Temp Electrode
Model	ECFC7352901B
Description	Plastic Body “3-in1” pH/Temp (30Kohm) Combination with Ag/AgCl Reference, Sealed / Plastic body 3-in-1 pH/Temp combination electrode
Measuring pH Range	0 to 13 pH
Temperature Range	0 to 80 °C
Shaft Material	Plastic
Liquid Junction Type	Porous HDPE Pin
Reference Junction	Single Junction
Reference Type	Ag/AgCl, Sealed
Connector Type	BNC & 2.5mm Phono
Shape of Membrane	Cylindrical
Shaft Length	110 mm
Diameter	12 mm
