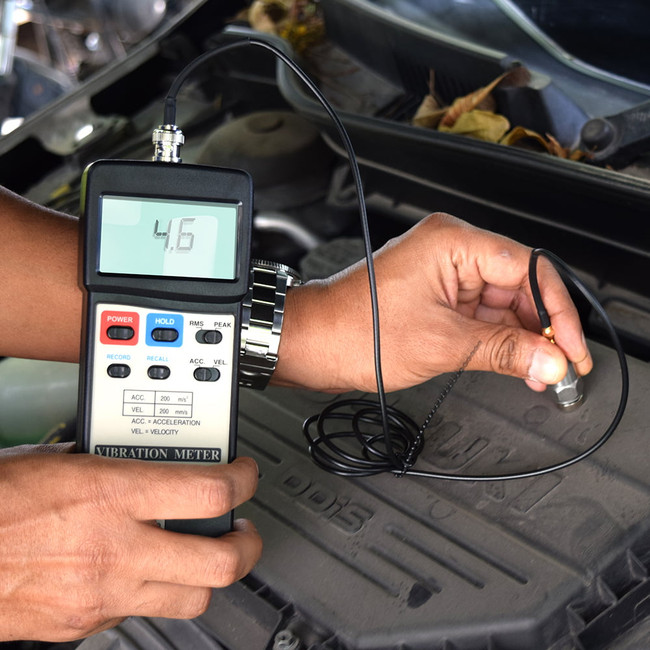

LUTRON VB-8200 Vibration Meter – Precision Industrial Machine Health Monitor

The LUTRON Model VB-8200 Vibration Meter is a professional-grade diagnostic instrument engineered for precise industrial vibration monitoring and predictive machine health analysis. Designed to safeguard vital factory infrastructure, this high-performance monitoring tool serves as an early warning system against mechanical faults. By capturing accurate velocity and acceleration data, it enables operators to evaluate rotational and reciprocating machinery conditions before critical failures emerge.

Unchecked mechanical deviations inevitably lead to devastating operational disruptions. The LUTRON VB-8200 directly mitigates these hazards by targeting the primary catalysts of equipment degradation: structural looseness, poor dynamic balance, and shaft misalignment. Integrating this precision tool into your proactive maintenance workflow allows you to optimize machinery longevity, safeguard structural integrity, and drastically minimize unscheduled plant downtime.

Built for demanding environments, the system features a dedicated high-sensitivity vibration sensor paired with a heavy-duty magnetic base, facilitating seamless readings across hard-to-reach mechanical surfaces. Compliant with international benchmarks like ISO 2954, ISO-9001, and CE, the VB-8200 combines microcomputer-driven precision with complete data output support via an isolated RS 232 computer interface for professional data acquisition.

Technical Specifications

Parameter / Feature Details
Brand / Model LUTRON VB-8200
Primary Function Industrial Machine Vibration Monitoring
Measurement Types Velocity & Acceleration (RMS, Peak, Max/Min, Peak Hold)
Velocity Range Measuring: 200 mm/s | Display: 0.5 to 199.9 mm/s
Acceleration Range Measuring: 200 m/s² | Display: 0.5 to 199.9 m/s²
Frequency Range 10 Hz to 1 kHz (ISO 2954 compliant)
Accuracy ±(5% + 2d) at 160 Hz, 80 Hz, 23±5°C
Calibration Points Velocity: 50 mm/s (160 Hz) | Acceleration: 50 m/s² (160 Hz)
Sampling Time Approximately 1 second
Circuit Architecture Exclusive high-performance microcomputer circuit
Display Screen Super large LCD (61mm x 34mm) | Digit Size: 15mm (0.6")
Data Output Port RS 232 serial output, isolated link
Operating Temperature 0°C to 50°C (32°F to 122°F)
Operating Humidity < 80% Relative Humidity (RH)
Power Supply DC 9V battery (Alkaline/Heavy Duty 006P, MN1604, PP3)
Power Consumption Approximately DC 6 mA
Main Unit Dimensions 180 x 72 x 32 mm (7.1" x 2.8" x 1.3") | Weight: 230g (0.50 lb)
Sensor Probe Dimensions 19mm diameter x 21mm | Weight: 38g (0.09 lb)
Compliance Standards ISO-9001, CE marking, IEC1010 compliant
Standard Package Contents Main Unit, Instruction Manual, Vibration Sensor, Magnetic Base, Hard Carrying Case
Optional Upgrades SW-U801-WIN (Data Acquisition Software), UPCB-01 (RS232 Cable), USB-01 (USB Cable)

Core Features & User Benefits

  • ISO 2954 Compliant Frequency Range Tracks a wide 10 Hz to 1 kHz band to capture essential velocity and acceleration metrics, matching global machine condition assessment standards.
  • Early Fault Detection & Prevention Isolates issues like poor balance, shaft misalignment, and structural looseness, saving plants from costly catastrophic failures and asset downtime.
  • Magnetic Base & Removable Probe Equipped with a high-strength magnetic sensor base alongside a separate probe tip to take reliable hands-free or tight-space measurements.
  • Microcomputer Logic Precision Powered by a high-performance proprietary microcomputer circuit that guarantees elite measuring accuracy alongside rock-solid field reliability.
  • Dual Value Capture (RMS & Peak) Displays real-time root-mean-square values and transient spikes concurrently via Peak Hold, delivering absolute insight into machine health.
  • RS 232 Computer Data Interface Facilitates immediate technical integration with optional data acquisition software (SW-U801-WIN) for flawless long-term recording and datalogging.
  • Heavy-Duty Compact Housing Formed from durable industrial polymers to withstand rugged manufacturing shop floors, packed cleanly inside a hard protective carrying case.
  • Intelligent Battery Preservation Maximizes system battery uptime through integrated auto shut-off mechanisms paired with a reliable advance low-battery warning display.

Frequently Asked Questions (FAQ)

What parameters can the LUTRON VB-8200 measure for industrial vibration monitoring?

The LUTRON VB-8200 vibration meter measures velocity and acceleration across a wide frequency range from 10 Hz to 1 kHz, fully complying with ISO 2954 standards. It captures critical data parameters including real-time RMS, Peak readings, and Maximum/Minimum record tracking to evaluate structural mechanical health safely.

How does the VB-8200 help prevent machinery failures and operational downtime?

The LUTRON VB-8200 detects subtle operational anomalies such as poor dynamic balance, shaft misalignment, and structural looseness early. By identifying these mechanical defects before they scale, plant engineers can schedule proactive maintenance, avoid devastating gear failures, and eliminate unscheduled e-commerce or manufacturing downtime.

Can the LUTRON VB-8200 log and export data to a computer?

Yes, the LUTRON VB-8200 features a built-in isolated RS 232 computer interface. By utilizing the optional data acquisition software (SW-U801-WIN) and standard accessory interface cables (UPCB-01 or USB-01), operators can stream, log, and analyze real-time mechanical vibration metrics directly on an external PC terminal.

Is the LUTRON VB-8200 sensor capable of hands-free operation on metal machinery?

Yes, the professional kit comes equipped with a separate vibration sensor featuring a high-traction magnetic base. This allows stable, hands-free mounting on ferromagnetic machine housings, ensuring repeatable diagnostic accuracy while protecting operators near high-speed rotating equipment or hard-to-reach measurement spots.

What type of maintenance and calibration standards does this vibration meter support?

The LUTRON VB-8200 is manufactured under certified ISO-9001 guidelines and carries CE and IEC1010 compliance. It supports precise on-site verification with dedicated calibration points at 50 mm/s for velocity and 50 m/s² for acceleration, both evaluated at an industry-standard 160 Hz frequency parameter.
