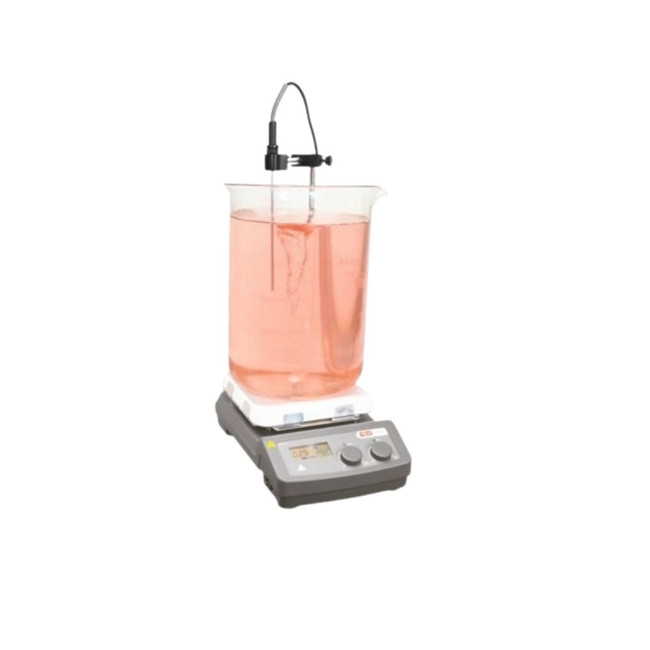

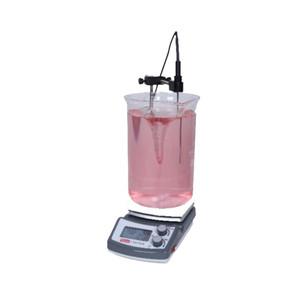

REMI 10MLH Plus Magnetic Stirrer Hot Plate (10L, 550°C, Ceramic)
REMI
₹53,000.00
(No reviews yet)
Write a Review
REMI
REMI 10MLH Plus Magnetic Stirrer Hot Plate (10L, 550°C, Ceramic)
REMI 10MLH PLUS: High-Performance Magnetic Stirrer with Ceramic Hot Plate:
The REMI Model 10MLH Plus is a sophisticated laboratory instrument engineered to deliver precise temperature control and efficient mixing for a wide range of scientific applications. Combining the core functions of a hot plate and a magnetic stirrer, this device is indispensable in industrial, pharmaceutical, and research laboratories where accurate and reproducible results are crucial.
Core Functionality and Design:
The 10MLH Plus integrates heating and stirring capabilities into one compact unit, facilitating simultaneous agitation and temperature regulation of solutions. Mixing is achieved via a magnetic field that causes a PTFE-coated stirring paddle (Q-20A, 13 x 50mm) placed inside the liquid to rotate, creating a homogeneous vortex for even component distribution. The unit features a durable glass ceramic top plate, renowned for its excellent chemical resistance and ability to handle high temperatures up to 550°C.
Precision Control and Monitoring:
Equipped with advanced microprocessor technology, the 10MLH Plus ensures reliable operation and high accuracy. The easy-to-read backlit LCD displays both the set and actual parameters for speed and temperature, allowing researchers to monitor conditions in real time. For ultimate control, the system supports an optional external PT-1000 temperature sensor, which improves the control accuracy of the heating temperature to a fine tolerance of 0.2°C. The motor provides constant speed, maintaining stable performance even when the viscosity or voltage changes, ensuring consistency across experiments.
Enhanced Safety Features:
Designed with operator safety in mind, the magnetic stirrer includes several critical protective features. It incorporates a unique safety temperature control system and a residual heating warning alarm, which activates when the plate temperature is above 50°C even after the unit is switched off. The unit’s protection class rating is IP 21. Furthermore, the use of a maintenance-free brushless motor contributes to the device's longevity and reliable performance, making it a cost-effective and versatile asset for high-demand lab environments.
Ideal Laboratory Applications:
Magnetic stirrers with hot plates are essential tools utilized across various scientific disciplines, including chemistry, biology, and medical research. The REMI 10MLH Plus is particularly suited for applications requiring robust and consistent thermal and mechanical treatment, such as:
• Chemical synthesis, ensuring uniform mixing and heating of reactants.
• Preparing culture media and nutrient solutions in microbiology and cell culture.
• Homogenization and emulsification in food and beverage testing.
• Sample preparation and titration in analytical chemistry.
Product Specifications: REMI 10MLH PLUS:
|
Feature
|
Specification
|
|
Model No.
|
10 MLH Plus
|
|
Brand
|
REMI
|
|
Type of Product
|
Magnetic Stirrer (with Hot Plate)
|
|
Max. Stirring Quantity (Water)
|
10 L
|
|
Top Plate Material
|
Glass Ceramic
|
|
Top Plate Dimensions
|
184 x 184 mm
|
|
Heating Power
|
1000 W
|
|
Temperature Range (Max.)
|
Up to 550°C
|
|
Speed Range
|
150 - 1500 rpm
|
|
Speed / Temperature Display
|
LCD
|
|
Speed Display Resolution
|
1 rpm
|
|
Control Accuracy (Internal)
|
1°C
|
|
External Temperature Sensor
|
PT-1000
|
|
Control Accuracy (with PT-1000)
|
0.2°C
|
|
Residual Heating Warning Alarm
|
Above 50°C
|
|
Motor Rating Input / Output
|
18 W / 10 W
|
|
Stirring Paddle (PTFE coated)
|
Q-20A (13 x 50mm)
|
|
Dimensions (W x D x H)
|
360 x 215 × 112 mm
|
|
Weight
|
5.3 Kg
|
|
Protection Class
|
IP 21
|
|
Country of Origin
|
India
|
|
Motor Type
|
Maintenance free brushless motor
|
|
Key Technology
|
Advanced Microprocessor control
|
-
-
