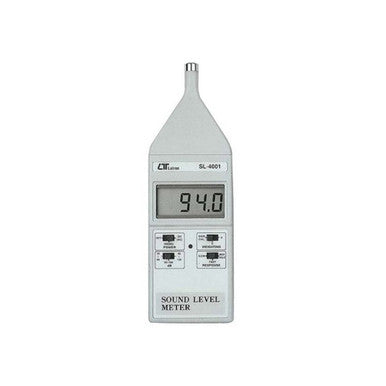

Lutron SL-4001 Professional Sound Level Meter - IEC 651 Type 2

Lutron SL-4001 Professional Sound Level Meter - IEC 651 Type 2

LUTRON
SKU:
LUT-SL-4001
₹11,250.00
(No reviews yet)
Current Stock:
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Request Quote
Description
Product Overview & Compliance:

The Lutron Model SL-4001 Sound Level Meter is a professional instrument designed for high accuracy sound level measurement, adhering to IEC 651 type 2 standards. Manufactured under ISO-9001 certification and marked with CE and IEC1010 compliance, this meter is reliable for various acoustic monitoring applications. It is built with durable, long-lasting components housed within a strong, light weight ABS-plastic casing, supporting easy one-hand operation due to its small and portable design.

Advanced Measurement Capabilities:
The SL-4001 offers versatile operational functions including A and C frequency weighting, Max. hold, and selectable Fast and Slow time weighting modes.

• Frequency Weighting:
    ◦ A Weighting: This characteristic is simulated to match the "Human Ear Listing" response and is typically selected when making environmental sound level measurements.
    ◦ C Weighting: This characteristic is near the "FLAT" response, making it suitable for checking the noise of machinery (Quality Control checks) and determining the sound pressure level of tested equipment.

• Time Weighting (Fast & Slow):
    ◦ Fast (t = 200 ms): Simulates the human ear response time weighting.
    ◦ Slow (t = 500 ms): Makes it easier to obtain the average values of vibration sound level.

• High Accuracy Microphone: The unit utilizes an electric condenser microphone (1/2 inch standard size) known for its high accuracy and long-term stability.

• Calibration: The meter includes a built-in adjustable VR for easy external calibration using a screw driver, supported by an internal oscillation system generating a 1 KHz sine wave.

System Integration and Display:

The SL-4001 features an 18mm (0.7") LCD display (3 1/2 digits) which provides a clear read-out even in bright ambient light conditions and features low power consumption. Essential functions include a Max. Hold feature to store the maximum measured value on display, and a warning indicator for over and under load conditions.
For system expansion, the unit provides AC/DC output capabilities via a 3.5 phone output terminal. This allows connection to an analyzer, level recorder, or tape recorder for data logging and detailed analysis.

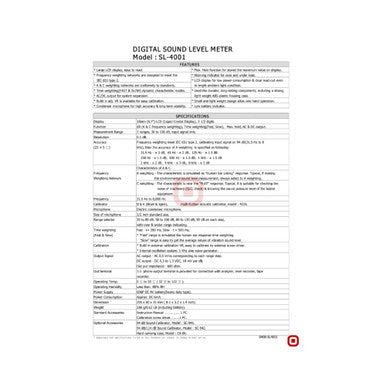

Technical Specifications (Model SL-4001):

Feature
Specification
Model
SL-4001 (Lutron Electronic)
Compliance
IEC 651, Type 2; ISO-9001; CE; IEC1010
Display
18mm (0.7") LCD, 3 1/2 digits
Measurement Range
30 dB to 130 dB (3 ranges)
Range Steps
30 to 80 dB, 50 to 100 dB, 80 to 130 dB (50 dB steps)
Resolution
0.1 dB
Frequency Range
31.5 Hz to 8,000 Hz
Frequency Weighting
A and C networks
Time Weighting
Fast (200 ms) and Slow (500 ms) dynamic characteristics
Microphone
Electric condenser microphone, 1/2 inch standard size
Accuracy
Meets IEC 651 type 2 standards (e.g., ± 1.5 dB at 500 Hz to 1 kHz for A weighting)
Output Signal (AC)
0.5 Vrms corresponding to each range step
Output Signal (DC)
0.3 to 1.3 VDC (10 mV per dB)
Output Impedance
600 ohm
Operating Temperature
0 ℃ to 50 ℃ (32 ℉ to 122 ℉)
Operating Humidity
Less than 80% RH
Power Supply
006P DC 9V battery (heavy duty type)
Power Consumption
Approx. DC 6mA
Dimensions
205 x 80 x 35 mm (8.1 x 3.2 x 1.4 inch)
Weight
280 g / 0.62 LB (including battery)

Included and Optional Accessories:

Standard Accessories:
• Instruction Manual
• Calibration screw driver

Optional Accessories (Sound Calibrators):
• 94 dB Sound Calibrator, Model: SC-941
• 94 dB/114 dB Sound Calibrator, Model: SC-942
• Compatible with B & K (Bruel & kjaer) multi-function acoustic calibrator, model: 4226
