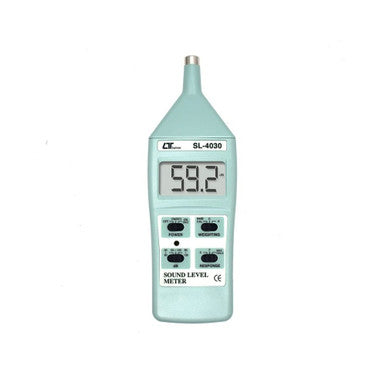

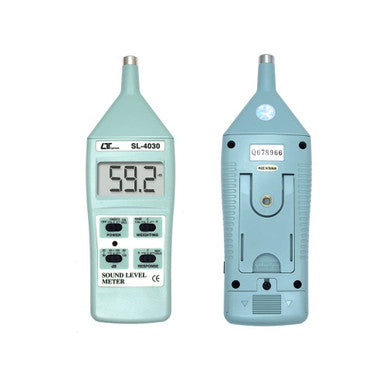

Product Description: Lutron SL-4030 Sound Level Meter:
The Lutron SL-4030 Sound Level Meter is a portable, pocket-sized device designed for accurate noise and sound level measurements in diverse environments. Classified as a general-grade instrument, it conforms to international standards for reliable performance. This compact digital meter is essential for professionals needing quick and precise assessments of ambient noise.
Key Features and Capabilities:
High-Accuracy Measurement The SL-4030 is equipped with an electric condenser microphone for high accuracy and long-term stability in its measurements. Its acoustic performance characteristics meet the requirements of IEC 61672 class 2 standards, ensuring quality and dependability. The meter offers a broad measurement frequency range, from 31.5 Hz up to 8,000 Hz.
Versatile Weighting and Response The device includes both 'A' and 'C' frequency weighting networks, allowing users to select the measurement characteristic most appropriate for the assessment. The 'A weighting' network simulates the response curve of the human ear, while the 'C weighting' is also available for specific analysis. Additionally, it offers selectable 'Fast' and 'Slow' time weighting dynamic characteristic modes, simulating the human ear response time (Fast, t=200 ms) or simplifying the acquisition of average values for fluctuating noise levels (Slow).
User-Friendly Design Featuring a large LCD display, the meter is easy to read, even in bright ambient light conditions. It includes a MAX. HOLD function to freeze and store the maximum measured value, as well as a warning indicator that alerts the user when measurements fall outside the over or under load range. Its small, lightweight design and durable ABS-plastic housing case allow for comfortable, one-hand operation. The meter also includes a built-in external calibration adjustment (VR) for easy field calibration at the 94 dB level using a screwdriver.
Applications:
The Lutron SL-4030 is a versatile tool suitable for various applications, including:
• Industrial hygiene and monitoring noise exposure in the workplace.
• Basic environmental noise measurements and surveys.
• Assessing sound levels at construction sites, traffic sites, and airports.
• General testing and measurement in laboratories and for educational purposes.

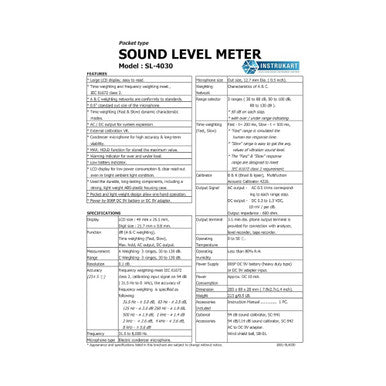

Technical Specifications (Model SL-4030):
|
Specification
|
Detail
|
|
Type of Product
|
Sound Level Meter (Mini Pocket Type)
|
|
Brand
|
Lutron
|
|
Model No.
|
SL-4030
|
|
Standard Compliance
|
IEC 61672 Class 2 (also listed as IEC 651 type 2)
|
|
Measuring Range
|
35 to 130 dB (3 Ranges: 35 to 80 dB, 50 to 100 dB, 80 to 130 dB)
|
|
Resolution
|
0.1 dB
|
|
Accuracy (at 1 kHz, after cal.)
|
± 1.5 dB (under input signal level on 94 dB)
|
|
Frequency Range
|
31.5 Hz to 8,000 Hz (8 KHz)
|
|
Frequency Weighting
|
A and C Weighting Networks
|
|
Time Weighting
|
Fast and Slow
|
|

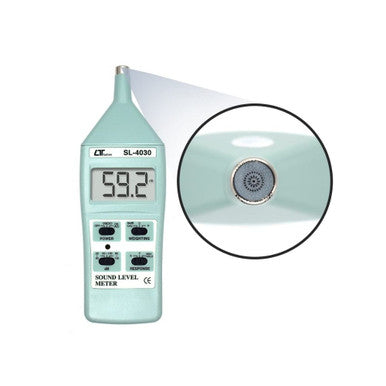

Microphone Type
|
Electric Condenser Microphone
|
|
Microphone Size
|
1/2 inch standard size (Out size, 12.7 mm Dia.)
|
|
Display
|
LCD (18 mm, 3 1/2 digits, or 49 mm x 25.5 mm)
|
|
Data Hold Function
|
MAX. HOLD function to freeze display value
|
|
Output Signal
|
AC Output (AC 0.5 Vrms) and DC Output (DC 0.3 to 1.3 VDC, 10 mV / per dB)
|
|
Power Supply
|

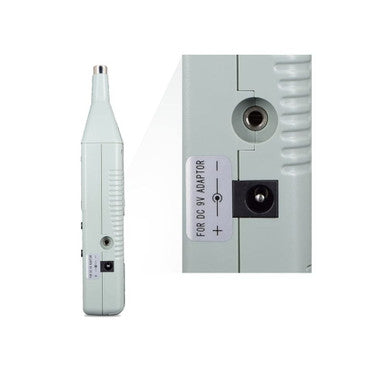

006P DC 9V battery (Heavy duty type) or DC 9V adapter input
|
|
Power Consumption
|
Approx. DC 6 mA (or Approx. DC 10 mA)
|
|
Operating Temperature
|
0°C to 50°C
|
|
Operating Humidity
|
Less than 80% R.H.
|
|
Dimensions
|
225 X 70 X 28 mm (8.9 X 2.8 X 1.1 inch) or 200 x 69 x 28 mm
|
|
Weight
|
250 Grams (or 213 g)
|
|
Country of Origin
|
Made in India (or Taiwan - Note: Sources show conflicting data regarding origin)
|
