Overview:

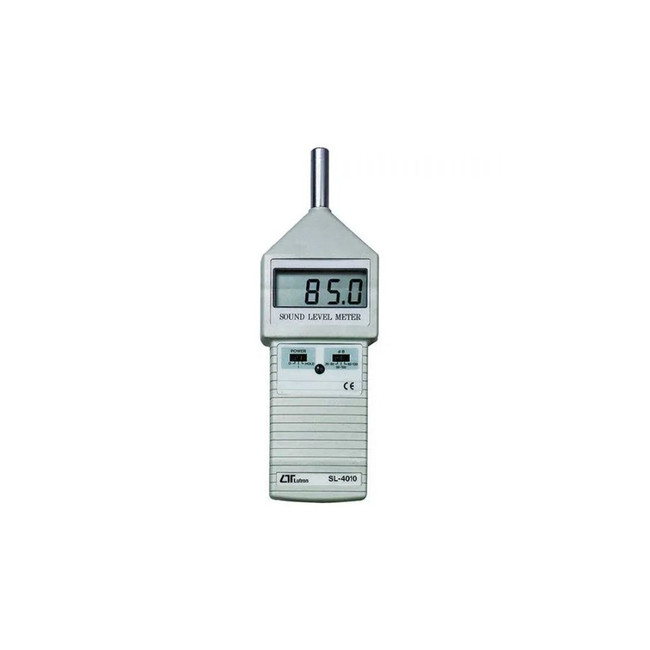

The Lutron SL-4010 Digital Sound Level Meter is a robust, economical, and precise handheld instrument manufactured in Taiwan, designed for accurate noise measurement in various environments. Classified as an IEC 61672 Class 2 sound level meter, it is suitable for environmental and industrial noise assessment. The meter features a durable, lightweight ABS-plastic housing case, enabling convenient one-hand operation. It utilizes a highly accurate electric condenser microphone for long-term stability and precise readings.
Key Features:
Precision and Display:
• Large LCD Display: Equipped with an 18 mm (0.7 inch) LCD, offering a clear 3 1/2 digit readout, easy to view even in bright ambient light conditions.
• High Accuracy: Utilizes a condenser microphone for high accuracy and long-term stability in measurements.
• A-Weighting Network: Features the "A" frequency weighting network characteristic, which simulates the human ear's response to sound.
• Fast Time Weighting: Defaults to the "Fast" time weighting characteristic mode, simulating the human ear's response time.
Functionality:
• Data Hold: Includes a Hold function to instantly freeze the displayed measurement value.
• Calibration: A built-in adjustable VR (Variable Resistor) allows for easy external calibration, typically set at a 94 dB level using a screw driver.
• Range Warning: Incorporates a warning indicator system for both over-range and under-range conditions within the three measurement scales.
• Low Power Consumption: The LCD contributes to low power consumption, and a dedicated indicator alerts the user when the battery is low.
• Durable Design: Constructed using durable, long-lasting components housed within a strong, light weight ABS-plastic case.
Applications:
The SL-4010 Sound Level Meter is a versatile tool widely used across several fields for environmental and industrial measurement, including:
• Industrial sites and facilities
• Noise monitoring
• Outdoor measurements
• Building acoustics
• Assessment of noise levels in areas such as molding and heating environments
• Workplace and entertainment venue noise analysis
• Road traffic noise assessment

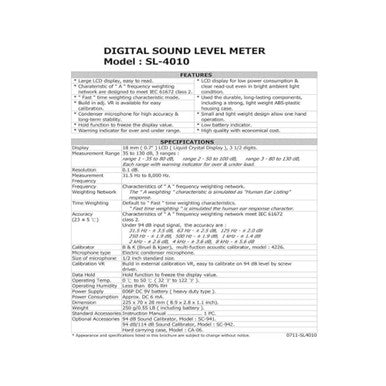

Technical Specifications:
|
Parameter
|
Detail
|
|
Model Name/Number
|
SL-4010
|
|
Brand / Origin
|
Lutron (Taiwan Make)
|
|
Type
|
Digital Sound Level Meter, Economical Type
|
|
Standards Met
|
IEC 61672 Class 2 (also referenced as IEC 651 Type 2)
|
|
Measurement Range
|
35 to 130 dB (3 segmented ranges)
|
|
Range Segmentation
|
Range 1: 35 to 80 dB
|
|
Range 2: 50 to 100 dB
|
|
|
Range 3: 80 to 130 dB
|
|
|
Resolution
|
0.1 dB
|
|
Measurement Frequency
|
31.5 Hz to 8,000 Hz
|
|
Frequency Weighting
|
A Weighting Network (Simulated Human Ear Response)
|
|
Time Weighting
|
Fast (Simulated Human Ear Response Character)
|
|
Display
|
18 mm (0.7 inch) LCD, 3 1/2 digits
|
|
Microphone Type
|
Electric Condenser Microphone
|
|
Microphone Size
|
1/2 inch standard size
|
|
Calibration
|
Built-in external calibration VR for 94 dB level
|
|
Data Hold
|
Yes
|
|
Over/Under Range Indicator
|
Yes (Warning indicator for over & under load)
|
|
Operating Temperature
|
0 °C to 50 °C (32 °F to 122 °F)
|
|
Operating Humidity
|
Less than 80% RH
|
|
Power Supply
|
006P DC 9V battery (Heavy duty type)
|
|
Power Consumption
|
Approx. DC 6 mA
|
|
Dimensions (L x W x H)
|
225 x 70 x 28 mm (8.9 x 2.8 x 1.1 inch)
|
|
Weight
|
250 g / 0.55 LB (including battery)
|
|
Recommended Calibrator
|
B & K (Bruel & Kjaer), multi-function acoustic calibrator, model: 4226
|
