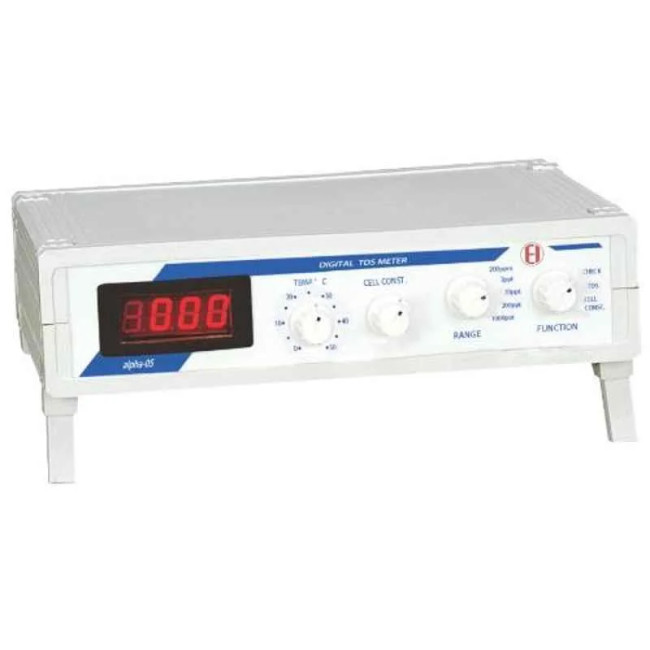

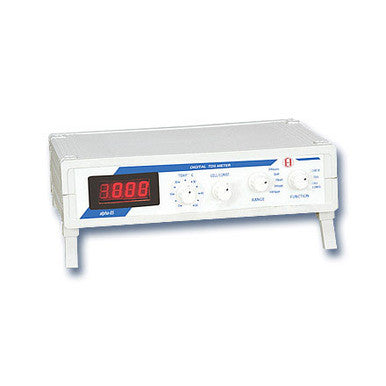

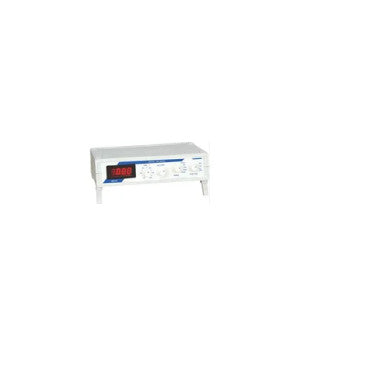

Electronics India (EI-DVI) Alpha 05 Digital TDS Meter:
The Digital TDS Meter Model Alpha 05 from Electronics India (EI) is a highly reliable and accurate test instrument designed specifically for the precise measurement of Total Dissolved Solids (TDS) in aqueous solutions. Available in both robust Laboratory (Table) Models and portable Field Models, the Alpha 05 is built for consistency across demanding environments.
Key Features and Performance:
The Alpha 05 meter is characterized by its superior build and measurement capabilities.
• High Stability and Accuracy: The instrument is described as being highly stable and accurate.
• Clear Digital Display: It features a 3½ Digit LED Display for clear readings.
• Multi-Range Measurement: The meter measures TDS across five distinct ranges.
• Adjustable Cell Constant: A critical feature is the Cell Constant Adjustment Facility. The cell constant value is flashed on the digital display and can be adjusted directly from the front panel.
• Calibration Control: The instrument incorporates a built-in "Check" facility, enabling users to calibrate the meter easily.
• Cell Type: Measurement is performed using a Platinum DIP Type measuring cell.
Versatile Applications:
The Digital TDS Meter alpha 05 is an extremely useful tool across various sectors where monitoring water and salt content is crucial.
• Water Quality Monitoring: Ideal for measuring the TDS (Total Dissolved Solids) of aqueous solutions.
• Environmental & Industrial Use: Crucial for monitoring salt contents in water, particularly in industrial settings.
• Agriculture and Soil Analysis: Used for monitoring soluble salts in soils and is highly useful in agriculture and soil analysis laboratories.
• Specific Industrial Applications: Highly useful in swimming pools, fertilizer plants, petroleum refineries, and textile plants.
Specifications (Model Alpha 05 TABLE MODEL):
The specifications below detail the technical characteristics of the table-top version of the Alpha 05 Digital TDS Meter:
|
Parameter
|
Specification
|
|
Model
|
Alpha 05 TABLE MODEL
|
|
Measurement Parameter
|
TDS (Total Dissolved Solids)
|
|
Display
|
3½ Digit LED
|
|
Ranges (5 Ranges)
|
0 to 200 ppm, 0 to 2.000 ppt, 0 to 20.00 ppt, 0 to 200.0 ppt, 0 to 1000 ppt
|
|
Resolution (Lowest Range)
|
0.1 ppm (or 0.1 µS/cm and 0.1 ppm for conductivity/TDS in the lowest range)
|
|
Accuracy
|
±1% FS ±1 Digit
|
|
Temperature Compensation
|
Manual: 0 to 50°C
|
|
Cell Constant
|
Adjustable on Digital Display
|
|
Measuring Cell Type
|
Platinum DIP Type
|
|
Power Requirement
|
230V ±10% AC, 50 Hz (100-260V AC meters available on request)
|
|
Dimensions (L x B x H)
|
76 x 275 x 175 mm
|
|
Weight
|
1.4 kg (approximately; other sources list 15–20 kg, which is likely a bulk or shipping weight)
|
|
Accessories Included
|
Conductivity/TDS/Salinity Cell, Operation Manual, Dust Cover (With Table Models)
|
