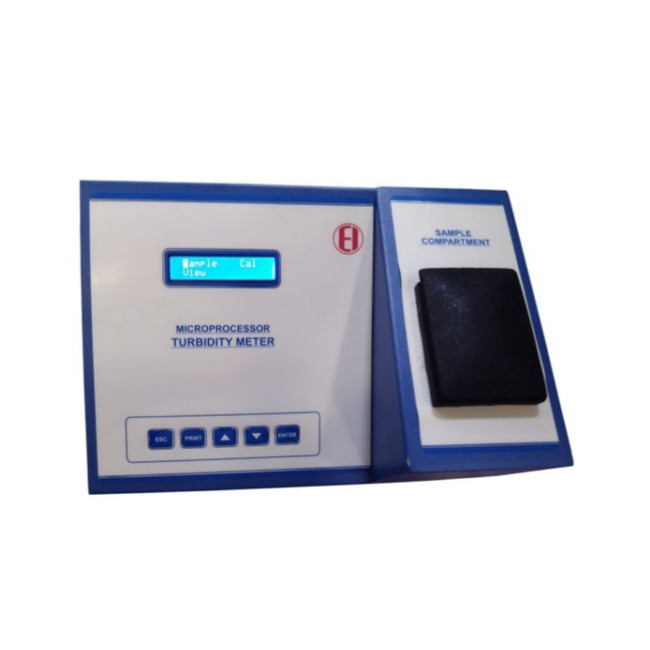

EI-DVI Model 1331 Microprocessor-Based Digital Turbidity Meter:
The EI-DVI Model 1331 is a sophisticated, microprocessor-based digital turbidity meter engineered for the reliable and accurate measurement of suspended solids in liquids. Turbidity, defined as the cloudiness or haziness in water caused by insoluble suspended and colloidal substances, is a critical parameter for assessing water quality. This instrument is ideal for determining the clarity of water, which is essential for products destined for human consumption, such as beverages and food products.
Key Features and Advantages:
The Model 1331 incorporates advanced technology to ensure highly dependable and precise measurements.
• Reliable and Accurate Results The meter is designed to deliver highly stable, reliable, and accurate results across its measurement ranges.
• Wide Measurement Range Capable of performing measurements up to 1000 NTU (Nephelometric Turbidity Units).
• Microprocessor Control Utilizes a microprocessor-controlled system for enhanced numerical calculations and stability.
• Advanced Display Features a clear 16 x 2 line Alphanumeric LCD display with backlight for easy viewing of results.
• Data Storage Includes an internal memory capacity to store up to 100 samples. The calibration settings are retained in the memory even when the instrument is switched off.
• Connectivity Includes an attachment facility for an External Serial RS232 Dot Matrix Printer.
• User Interface Operation is streamlined using 5 soft touch keys.
Measurement Principle (Nephelometry):
The EI-DVI Model 1331 operates on the 90° scattered light principle, which is recognized as the gold standard for turbidity measurement, particularly for water and wastewater analysis.
1. A focused light source is directed onto a clear glass test tube containing the liquid sample.
2. The instrument uses an IR LED (Infrared Light Emitting Diode) as the light source. The use of infrared light minimizes interference caused by the colour of the sample.
3. Suspended particles within the sample scatter the incident light.
4. The light reflected at a 90° angle to the focused beam is detected by a photoelectric detector (Photodiode).
5. The measured scattered light intensity is amplified and displayed in NTU.
Applications:
This turbidity meter is an invaluable tool across diverse environments where water quality monitoring is crucial.
• Environmental Monitoring: Essential for measuring suspended solids in ground water, surface water, and wastewater.
• Water Treatment: Used for testing sewage and drinking water, ensuring minimum limits of turbidity are observed in drinking water and sewage disposals. It is crucial for water purification plants and water works departments.
• Industrial Processes: Applications include quality control in the chemical and pharmaceutical industries, breweries, and monitoring water quality in boiler feed water.
• Laboratory Analysis: Suitable for general laboratory use and soil analysis laboratories.
Technical Specifications:
The Model 1331 Digital Turbidity Meter falls within the specifications typically associated with the EI models designed for water quality measurement.
|
Parameter
|
Specification (Model 1331 )
|
|
Model
|
1331
|
|
Product Type
|
Microprocessor Based Digital Turbidity Meter
|
|
Measurement Range
|
0 – 1000 NTU (in 2 Ranges: 0 – 200 NTU, 1000 NTU)
|
|
Units
|
NTU (Nephelometric Turbidity Unit)
|
|
Accuracy
|
± 3% FS, ± 1 Digit
|
|
Resolution
|
1 NTU (or 0.1 NTU in some similar models)
|
|
Display
|
16 x 2 line Alphanumeric LCD with Backlit
|
|
Light Source
|
IR LED
|
|
Detector
|
Photodiode (or Silicon Photodiode)
|
|
Sample System
|
Clear Glass Test Tubes (25mm or 60 x 25mm dimensions)
|
|
Power Supply
|
230 V ± 10% AC, 50 Hz
|
|
Interface
|
External Serial RS232 Dot Matrix Printer Attachment
|
|
Storage Capacity
|
Up to 100 Samples
|
|
Dimensions (L x B x H)
|
245 x 260 x 125 mm (Approx.)
|
|
Standard Accessories
|
Test tube Set, Operation Manual, Dust Cover
|
