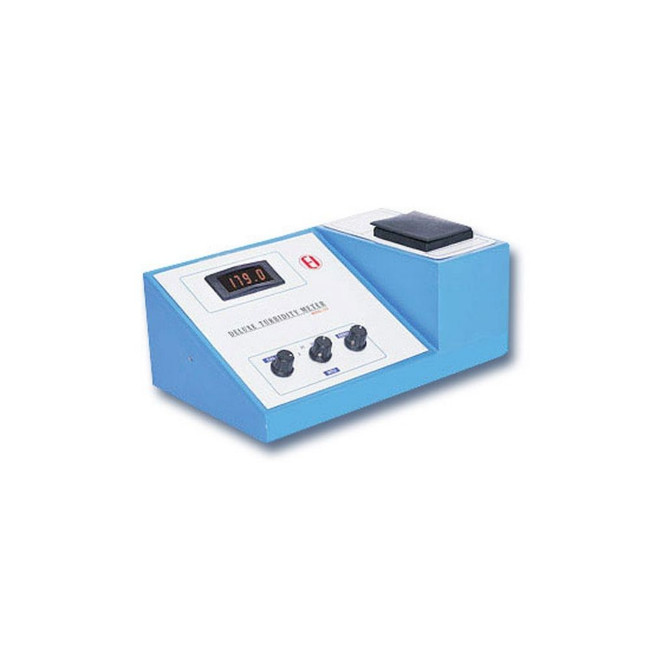

Product Description: Electronics India Model 335 Digital Turbidity Meter:
The Electronics India Model 335 Digital Turbidity Meter (EI-DVI) is a high-precision instrument specifically designed for the reliable and accurate measurement of suspensions. This digital turbidimeter is an ideal instrument for assessing the clarity of liquids, a critical factor in products intended for human consumption, such as beverages and food products, and is essential for monitoring environmental and water quality. It is widely used in applications such as sewage and drinking water testing.
Technology and Operational Principle:
Turbidity is the measure of cloudiness or haziness in a liquid, often caused by suspended solids like clay, silt, algae, or bacteria. The Model 335 utilizes an optical measurement technique, commonly known as nephelometry (measuring scattered light at a 90-degree angle), to determine turbidity levels.
The instrument operates by focusing a beam of light from its IR LED source onto a test tube containing the sample solution. The light scattered at a right angle by the suspended particles within the solution is detected by a photodiode detector. This signal is then electronically amplified and displayed instantly on the 3½ Digit 7-Segment LED screen, providing precise results in Nephelometric Turbidity Units (NTU). This method ensures reliable measurement results, especially important for meeting regulatory standards related to drinking water quality.
Key Features:
• Reliable and Accurate Results: Engineered for precision in critical laboratory and testing environments.
• High Measurement Capacity: Capable of measurements up to 1000 NTU.
• Multi-Range Versatility: Provides four distinct measurement ranges for comprehensive analysis across varying turbidity levels.
• Digital Display: Features a clear 3½ Digit 7-Segment LED display for easy reading of results.
• Essential Applications: Perfectly suited for both sewage and drinking water testing and quality control.
Applications:
The Model 335 Digital Turbidity Meter is an invaluable tool across various sectors where water quality and liquid clarity are paramount:
• Water Treatment Plants: Monitoring and maintaining minimum limits of turbidity required for safe drinking water and sewage disposal.
• Quality Control: Ensuring water clarity and suspension-free liquid media necessary for industries manufacturing food products and beverages.
• Laboratories and Research: Conducting analytical studies related to water quality and environmental science.
Technical Specifications (Model 335):
|
Parameter
|
Specification
|
|
Product Type
|
Digital Turbidity Meter
|
|
Model Number
|
335
|
|
Display
|
3½ Digit 7-Segment LED
|
|
Range
|
0 - 1000 NTU (in 4 Ranges: 0 - 2, 20, 200, 1000 NTU)
|
|
Resolution
|
0.01 NTU
|
|
Accuracy
|
± 3% FS, ± 1 Digit
|
|
Detector
|
Photodiode
|
|
Light Source
|
IR LED
|
|
Sample System
|
60 x 25mm Clear Glass Test Tubes
|
|
Power
|
230 V ± 10% AC, 50 Hz
|
|
Dimensions (L x B x H)
|
245 x 260 x 125 mm (Approx.)
|
|
Weight
|
3.0 Kg
|
|
Accessories Included
|
Test tube Set of 5, Operation Manual, Dust Cover
|
|
Country of Origin
|
India
|
|
Manufacturer/Packer/Importer
|
Jayanti Scientific Instruments / Electronics India
|
