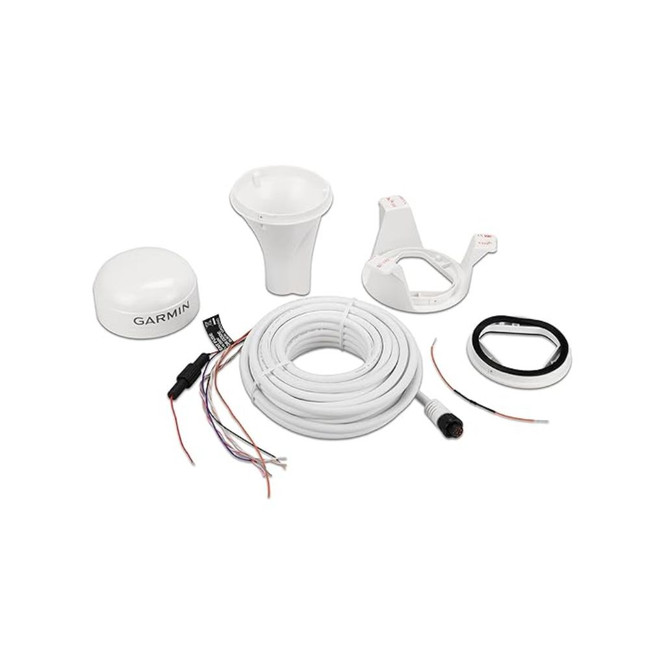

Garmin GPS 19x HVS
Precision Navigation at Your Fingertips The Garmin GPS 19x HVS is a highly accurate position receiver and antenna designed to deliver pro-level performance to your marine and automotive systems. Equipped with a 32-channel receiver, it provides enhanced position acquisition and high-sensitivity reception, ensuring you stay on course even in the most challenging conditions. Whether integrated with multifunction displays (MFDs), instrument displays, or autopilots, the GPS 19x HVS offers a unified and seamless navigation experience.
Lightning-Fast 10 Hz Update Rates Stay ahead of the elements with real-time data. The GPS 19x HVS tracks your position, velocity, and time with an ultra-fast 10 Hz refresh rate—updating your data 10 times per second. This speed allows for significantly smoother drawing of your position on chartplotters and MFDs, especially when traveling at high speeds or coming out of sharp turns.
Multi-GNSS and WAAS Capability This versatile antenna is capable of tracking multiple global navigation satellite systems, including GPS, GLONASS, Galileo, and QZSS. By accessing a higher number of visible satellites, the receiver provides more accurate fixes and improved reliability. With its WAAS-capable technology, it can determine your precise location to within 3 metres (9.84 ft), giving you the confidence to navigate hit specific waypoints with pinpoint accuracy.
Built to Brave the Elements Designed for the rugged marine environment, the GPS 19x HVS features a fully gasketed, high-impact plastic alloy case. It is waterproof to IPX7 standards, meaning it can withstand incidental exposure to water up to 1 metre deep for up to 30 minutes. Its compact and lightweight design (just 201g) makes it easy to mount without compromising space or boat aesthetics.
Versatile Installation Options Installation is straightforward and flexible to meet your specific needs. The sensor can be pole-mounted, flush-mounted, or even attached to the underside of many fiberglass decks for a clean, "hidden" look. It also features a configurable update rate, allowing it to be set to 1 Hz or 5 Hz to support legacy chartplotter models if required.
--------------------------------------------------------------------------------
Technical Specifications
|
Feature
|
Specification
|
|---|---|
|
Brand
|
Garmin
|
|
Model Name
|
GPS 19x HVS (NMEA 0183)
|
|
Receiver Type
|
32-channel, high-sensitivity
|
|
Update Rate
|
10 Hz (Default), 5 Hz, or 1 Hz
|
|
Position Accuracy
|
< 3 metres (WAAS/EGNOS/MSAS)
|
|
Supported Systems
|
GPS, GLONASS, Galileo, QZSS
|
|
Connectivity
|
NMEA 0183 (RS-232 and RS-422 compatible)
|
|
Water Rating
|
IEC 60529 IPX7 (Waterproof)
|
|
Dimensions (D x H)
|
91.6 mm x 49.5 mm (3 19/32" x 1 15/16")
|
|
Weight
|
201 g (7.1 oz.)
|
|
Cable Length
|
9.14 m (30 ft.)
|
|
Power Input
|
8-33 Vdc, unregulated
|
|
Operating Temp
|
-30° to 80°C (-22° to 176°F)
|
|
Case Material
|
Fully gasketed, high-impact plastic alloy
|
|
Compass-Safe Distance
|
150 mm (5.9 in.)
|
