Advanced Continuous Water Quality Monitoring

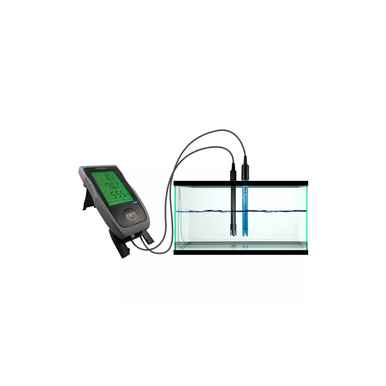

The HM-500 HydroMaster by HM Digital is a premium, all-in-one continuous monitoring system engineered for precise laboratory and industrial analysis. This sophisticated device provides accurate, stable readings of four critical parameters simultaneously: pH, Electrical Conductivity (EC), Total Dissolved Solids (TDS), and temperature.

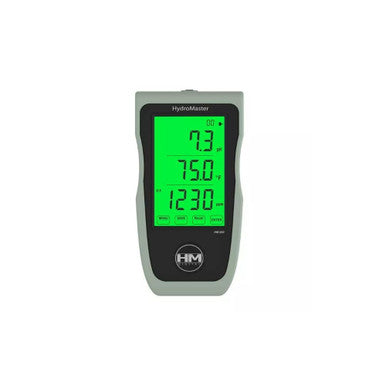

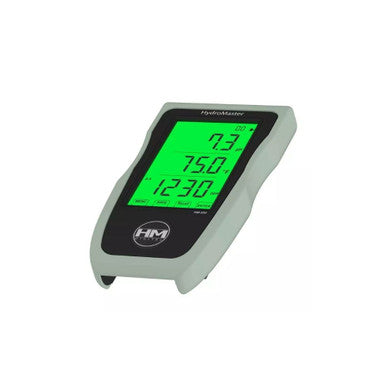

Designed for versatile deployment, the HM-500 features a user-friendly LCD touch-screen with auto-backlighting and supports both portable use via a rechargeable battery and fixed installation (wall-mounted or benchtop). Proactive monitoring is enhanced by adjustable high/low alarms, while automatic temperature compensation (ATC) ensures data integrity across varying environments.

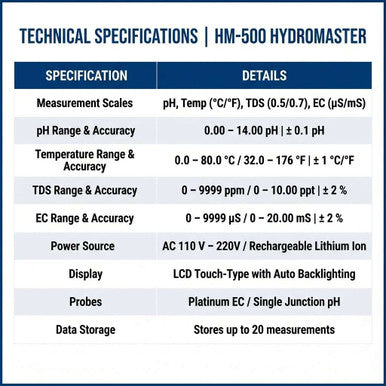

Technical Specifications
| Feature | Details |
|---|---|
| Brand | HM Digital |
| Measurement Scales | pH, Temp (°C, °F), TDS (ppm, ppt), EC (µS, mS) |
| pH Range | 0.00 – 14.00 pH |
| Temperature Range | 0.0 – 80.0 °C / 32.0 – 176 °F |
| TDS Range | 0 – 9999 ppm / 0 – 10.00 ppt |
| EC Range | 0 – 9999 µS / 0 – 20.00 mS |
| Accuracy | pH: ± 0.1 pH; Temp: ± 1 °C; TDS/EC: ± 2 % |
| Power Source | AC 110 V – 220V / Rechargeable Lithium Ion Battery |
| Probe Type | ABS EC (Platinum electrodes) / Single Junction pH |
| Sensor Cable | 2m (80 inch) shielded Coaxial Cable |
| Warranty | HydroMaster: 3-Year Limited; Probes: 6-Month Limited |

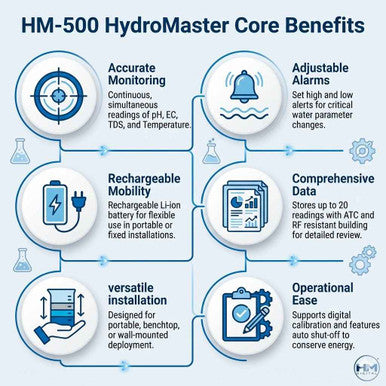

Core Product Benefits
- All-in-One Precise Analysis Simulataneously monitors pH, EC, TDS, and temperature, delivering accurate and stable readings crucial for hydroponics, aquaculture, and research.
- Operational Ease & Portability Features a user-friendly LCD touch screen and a rechargeable battery, allowing mobility for fixed or field deployment options.
- Data Integrity Assurance Automatic Temperature Compensation (ATC) and platinum electrode sensors guarantee high-resolution data across various solutions.
- Proactive Alert System Adjustable high/low alarms alert users to critical unmonitored changes in water parameters, reducing system failure risks.
- Dependable Build Quality Robust build with RF resistant design and Single Junction sensors provides consistent performance for environmental and water treatment monitoring.
Frequently Asked Questions
What critical water quality parameters does the HM-500 monitor simultaneously?
The HM-500 HydroMaster provides real-time, continuous monitoring of four essential water parameters: pH, Electrical Conductivity (EC), Total Dissolved Solids (TDS), and temperature. This advanced premium monitor simultaneously displays these readings on a user-friendly LCD touch-type screen for proactive system management.
How does Automatic Temperature Compensation enhance HM-500 readings?
Accuracy in water analysis is critical. The HM-500 features a built-in sensor for Automatic Temperature Compensation (ATC). This technology automatically adjusts readings based on solution temperature, ensuring that measurements of pH, EC, and TDS remain stable and dependable even in fluctuating operating environments.
Is the HM Digital HydroMaster suitable for portable field use?
Yes, the HM Digital HydroMaster is designed for flexible mobility. While perfect for wall-mounted or benchtop installations in laboratory or water treatment settings, the unit is equipped with a rechargeable lithium-ion battery and a rugged design, making it highly suitable for environmental monitoring.
What kind of maintenance and calibration do the HydroMaster probes require?
For consistent data integrity, the HM Digital HydroMaster supports digital calibration for precise adjustments of both the ABS-body EC probe with Platinum electrodes and the Single Junction pH Sensor. Regular calibration using standard solutions ensures high-resolution accuracy for critical applications like hydroponics.
What are the specific measurement ranges for TDS and EC on the HM-500?
The HM-500 HydroMaster offers high-resolution analysis across wide ranges. Electrical Conductivity (EC) is measured from 0 to 9999 µS or 0 to 20.00 mS. Total Dissolved Solids (TDS) ranges from 0 to 9999 ppm or 0 to 10.00 ppt, ensuring comprehensive data capturing.
