Detailed Product Description:
Overview and Application:
The Model PMS-714 Soil Moisture Meter from Lutron Electronic is a specialised device designed to accurately check the moisture level of soil or other similar materials. This is an all-in-one digital soil meter that is easy to operate. The instrument carries the ISO-9001, CE, and IEC1010 certifications.
Key Features:
The PMS-714 incorporates several features engineered for reliable and convenient measurement:
• Microprocessor Circuit: The device utilises a custom one-chip microprocessor LSI circuit, which ensures high accuracy and provides special functions.
• Measurement Range: The meter offers a wide measurement range, specifically from 0% to 50% moisture content in a soil sample.
• Data Hold Function: A practical data hold function is included, allowing users to freeze the desired value on the display for easy reading.
• Durable Design: The unit features long-lasting, durable components enclosed within a strong, compact ABS-plastic housing.
• Battery Indication: It features a built-in low battery indicator.
Measurement Principle:

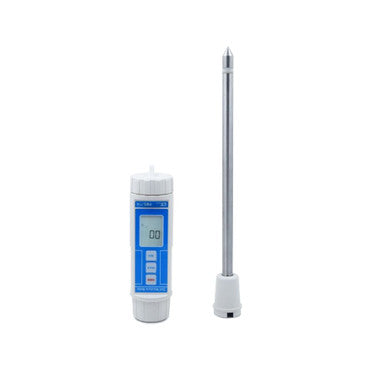

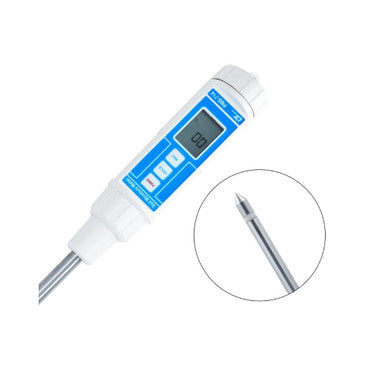

The PMS-714 measures moisture content using a 2 pins moisture electrode probe. The principal method of measurement involves determining the conductive ability of the sample (soil or similar material) via the two pins electrode, and then converting this measurement into a reading displayed as the percentage of moisture content.
Physical Characteristics and Operation:

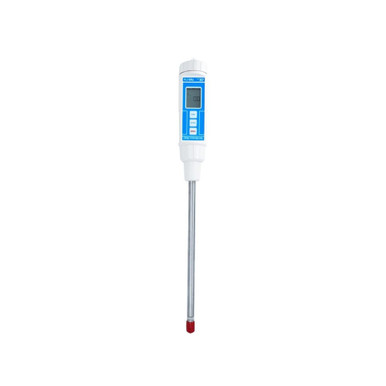

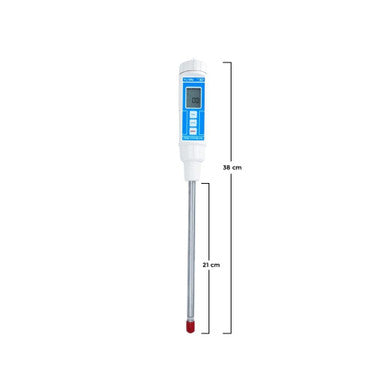

The meter and probe assembly has a total length of 392 mm (15.4"). The display is a clear LCD screen measuring 28 mm x 19 mm. The complete unit, including the battery, weighs approximately 267 g (0.58 LB). The device is powered by DC 1.5 V (UM4/AAA) x 4 PCs batteries.
Standard and Optional Accessories:
The purchase of the PMS-714 includes the instruction manual. An optional accessory available for this model is a hard carrying case, model CA-06.
Technical Specifications (Model PMS-714):
|
Specification
|
Detail
|
|
Model
|
PMS-714
|
|
Brand
|
LUTRON ELECTRONIC
|
|
Certifications
|
ISO-9001, CE, IEC1010
|
|
Application
|
Checking the moisture level of soil or other similar material
|
|
Measuring Principal
|
Uses 2 pins electrode to measure conductive ability, converting reading to "%" Moisture content of soil sample
|
|
Measurement Range
|
0 % to 50 % moisture content on soil
|
|
Resolution
|
0.1 %
|
|
Accuracy
|
± ( 5 % + 5 d ) F.S. @ 23± 5 ℃ (F.S. : full scale)
|
|
Circuit
|
Custom one-chip of microprocessor LSI circuit
|
|
Display
|
LCD size: 28 mm x 19 mm
|
|
Probe
|
2 pins moisture electrode
|
|
Data Hold
|
Freeze the display reading
|
|
Sampling Time
|
Approx. 0.8 second
|
|
Operating Temperature
|
0 to 50 ℃
|
|
Operating Humidity
|
Less than 80% R.H.
|
|
Power Supply
|
DC 1.5 V battery (UM4/AAA) x 4 PCs
|
|
Power Current
|
Approx. DC 12 mA
|
|
Weight (incl. Battery)
|
267 g / 0.58 LB
|
|
Meter Body Dimensions (L x W x H)
|
172 x 40 x 40 mm (6.8" x 1.6" x 1.6")
|
|
Probe Body Dimensions
|
220 mm x Dia. 10 mm (8.7" x Dia. 0.4")
|
|
Total Length (Meter + Probe)
|
392 mm (15.4 ")
|
|
Accessories Included
|
Instruction manual (1 PC)
|
|
Optional Accessory
|
Hard carrying case, CA-06
|
