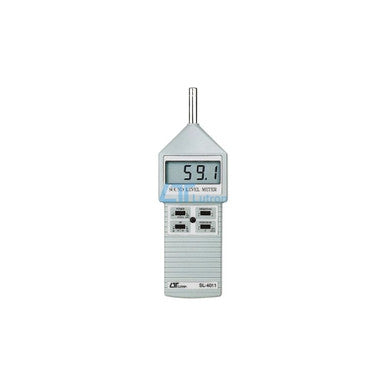

Lutron SL-4011 Sound Level Meter:
Product Overview:
The Lutron SL-4011 is a robust and accurate digital sound level meter, designed as a professional-grade tool for measuring noise levels across various demanding environments. It is engineered with frequency and time weighting characteristics that meet the strict requirements of IEC 61672 class 2. This instrument provides reliable results, making it an essential device for environmental monitoring, occupational health and safety, and quality control (Q.C. check).
Advanced Measurement Capabilities:
The meter features a broad measurement capacity with 3 ranges covering 30 dB to 130 dB (input signal only). The unit incorporates dual frequency weighting networks:
• A Weighting: This characteristic simulates the "Human Ear Listing" response and is typically selected when making environmental sound level measurements.
• C Weighting: This characteristic is near the "FLAT" response and is suitable for determining the sound pressure level of tested equipment or checking machinery noise.
The SL-4011 also offers two dynamic characteristics modes for time weighting:
• Fast (t= 200 ms): Simulates the human ear response time weighting.
• Slow (t= 500 ms): Designed to make it easier to obtain the average values of vibration sound level.
The device employs an electric condenser microphone which ensures high accuracy and long-term stability.
Key Functions and Data Handling:
The operation of the SL-4011 is enhanced by several useful functions:
• Max. Hold: This function allows the user to store and display the maximum measured value.
• Data Hold: Keeps the current reading on the display.
• Max. Hold Reset: A dedicated reset button is included for the maximum hold function.
• Over/Under Load Warning: Features a warning indicator to alert the user of over and under load conditions.
• External Output: Includes an AC/DC output for system expansion. A 3.5 mm phone output terminal is provided for connecting the meter to devices like level recorders, analyzers, or tape recorders.
• Calibration: Features a built-in adjustable VR for easy external calibration using a screwdriver.
Design and Construction
The instrument features a user-friendly design optimized for field work and laboratory use:
• Display: Readings are shown on a large, easy-to-read 18mm (0.7") LCD (Liquid Crystal Display) with 3 1/2 digits. The LCD display is also noted for its low power consumption, providing clear readout even in bright ambient light conditions.
• Housing: Constructed using durable, long-lasting components housed within a strong, light weight ABS-plastic housing case.
• Portability: The small and lightweight design (280 g, including the battery) allows for comfortable one-hand operation.
• Power: Operates using a 006P DC 9V heavy-duty type battery. A low battery indicator is included on the LCD display.
Ideal Applications:
The Lutron SL-4011 is ideal for a wide range of noise measurement applications, including:
• Industrial companies and workplaces
• Construction sites
• Traffic sites
• Airports
• Environmental noise monitoring
• Occupational health and safety programs

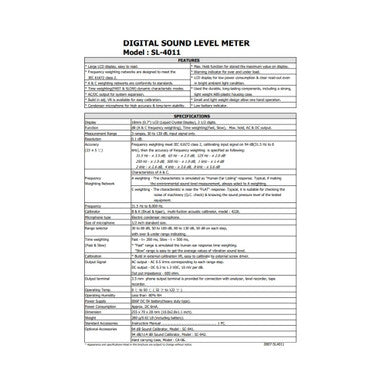

Technical Specifications (Model SL-4011):
|
Specification
|
Detail
|
|
Model Number
|
SL-4011
|
|
Brand
|
Lutron
|
|
Type
|
Digital Sound Level Meter
|
|
Standard Compliance
|
IEC 61672 Class 2 / Type 2
|
|
Display
|
18mm (0.7") LCD, 3 1/2 digits
|
|
Measurement Range
|
3 ranges, 30 dB to 130 dB (Input Signal Only)
|
|
Range Selector Steps
|
30 to 80 dB, 50 to 100 dB, 80 to 130 dB (50 dB on each step)
|
|
Resolution
|
0.1 dB
|
|
Frequency Range
|
31.5 Hz to 8,000 Hz
|
|
Frequency Weighting
|
A and C networks
|
|
Time Weighting
|
Fast (t= 200 ms), Slow (t= 500 ms)
|
|
Microphone Type
|
Electric Condenser Microphone
|
|
Microphone Size
|
1/2 inch standard size (12.7 mm DIA.)
|
|
Output Signal (AC)
|
0.5 Vrms corresponding to each range step
|
|
Output Signal (DC)
|
0.3 to 1.3 VDC (10 mV per dB)
|
|
Output Impedance
|
600 ohm
|
|
Output Terminal
|
3.5 mm phone output terminal
|
|
Calibration
|
External calibration VR built-in
|
|
Operating Temperature
|
0°C to 50°C (32°F to 122°F)
|
|
Operating Humidity
|
Less than 80% RH
|
|
Power Supply
|
006P DC 9V battery (heavy duty type)
|
|
Power Consumption
|
Approx. DC 6mA
|
|
Dimensions
|
255 x 70 x 28 mm (10.0 x 2.8 x 1.1 inch)
|
|
Weight
|
280 g (0.62 LB, including battery)
|
