Detailed Product Overview:

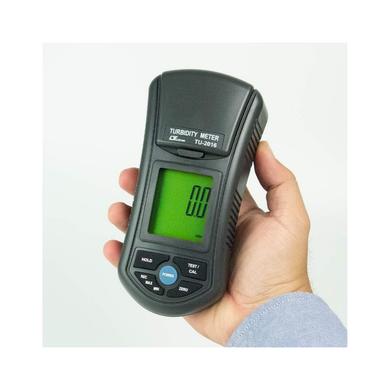

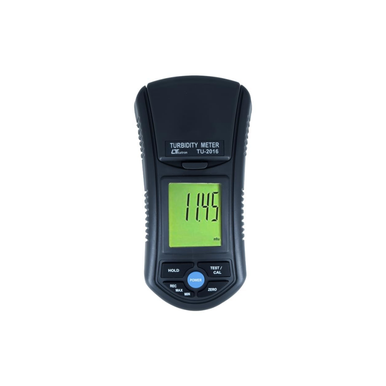

The Lutron Model TU-2016 is a robust, high-performance turbidity meter designed for professional field and on-site testing. It accurately measures the degree of cloudiness or contamination caused by suspended particles in liquids. Utilizing the standard NTU (Nephelometric Turbidity Unit) measuring unit, the TU-2016 delivers precise, repeatable measurements across a wide auto-ranging scale.
Advanced Measurement Technology:
The meter incorporates a custom one-chip microprocessor LSI circuit, which guarantees maximum possible accuracy and provides special functions and features for reliable testing. Its unique optics structure allows the instrument to read values efficiently, from low turbidity levels up to a high level of 1,000 NTU. The device meets the globally recognized ISO 7027 standard for testing procedures, making it suitable for applications where fluid clarity is critical.
Design and Usability:

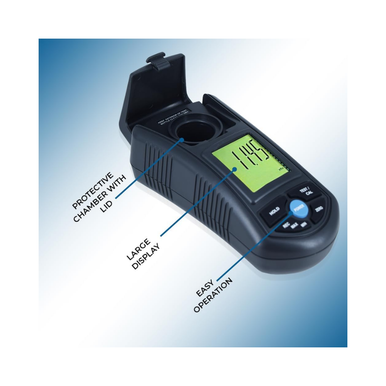

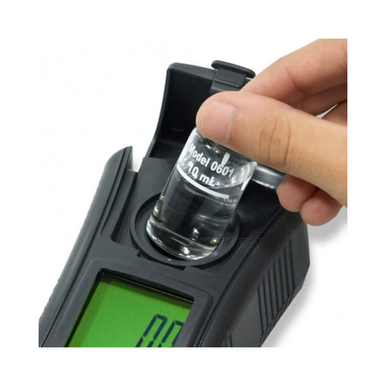

Designed for convenience and portability, the TU-2016 features a heavy-duty and compact housing, accompanied by a hard carrying case for easy transport and operation. Testing is fast, with a response time of less than 10 seconds, requiring only a small sample volume of 10 mL. The jumbo LCD display ensures easy readout of results.
For efficient operation, the meter includes four operational buttons, easy calibration points (0 NTU and 100 NTU), and essential functions such as Data Hold to freeze the displayed value and Memory Recall to record and review Maximum and Minimum readings. An automatic shut-off feature helps conserve battery life during periods of inactivity.
Key Features:
• ISO 7027 Compliant: Designed and structured to meet the established international standard.
• Wide Auto Range: Automatically measures turbidity from 0 to 1,000 NTU.
• High Resolution: Offers fine measurement resolution of 0.01 NTU/1 NTU.
• Microprocessor Accuracy: Custom one-chip LSI circuit ensures maximum accuracy and reliability.
• Portable Operation: Battery-operated design (requires six AAA batteries) is convenient for field and on-site testing.
• Data Management: Features Data Hold and Memory Recall for Maximum and Minimum readings.
• User-Friendly Interface: Jumbo LCD display for easy reading and simple push-button operation and calibration.
Applications:
The Lutron TU-2016 is an ideal instrument for checking water contamination and suspended particles in various environments:
• Testing municipal water quality
• Evaluating fluid clarity in food and beverage production
• Analyzing general aqueous solutions where cloudiness is a concern
Technical Specifications:
|
Parameter
|
Detail
|
|
Model
|
TU-2016
|
|
Brand
|
Lutron
|
|
Measurement Unit
|
NTU (Nephelometric Turbidity Unit)
|
|
Standard
|
Meets ISO 7027
|
|
Circuit
|
Custom one-chip microprocessor LSI circuit
|
|
Range (Auto)
|
0.00 to 50.00 NTU; 50 to 1,000 NTU
|
|
Resolution
|
0.01 NTU (for 0.00 to 49.99 NTU); 1 NTU (for 50 to 1000 NTU)
|
|
Accuracy
|
± 5% F.S. or ± 0.5 NTU, whichever is greater
|
|
Light Source
|
LED, 850 nm
|
|
Detector
|
Photo diode
|
|
Response Time
|
Less than 10 seconds
|
|
Sample Volume
|
10 mL minimum
|
|
Display
|
LCD (41 mm x 34 mm)
|
|
Calibration Points
|
0 NTU, 100 NTU
|
|
Operating Temperature
|
0 to 50 °C
|
|
Operating Humidity
|
Less than 85% R.H.
|
|
Power Supply
|
6 x DC 1.5 V batteries (UM4, AAA), or equivalent
|
|
Power Consumption (Testing)
|
Approx. DC 36 mA
|
|
Power Off
|
Auto shut off or manual push button off
|
|
Dimensions (H x W x D)
|
155 x 76 x 62 mm (6.1 x 3.0 x 2.4 inch)
|
|
Weight
|
320 g / 0.70 LB (Battery included)
|
|
Functions
|
Data Hold, Memory Recall (Max/Min)
|
|
Included Accessories
|

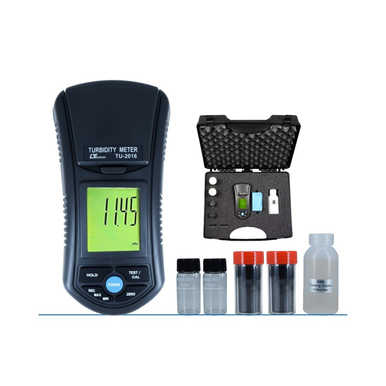

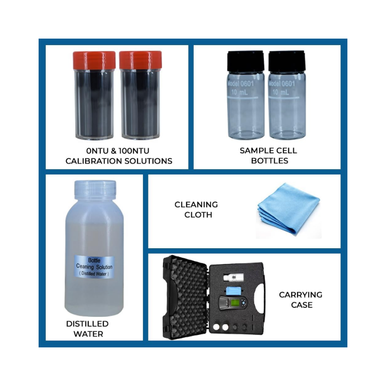

Hard carrying case, testing bottles (0 NTU standard solution, 100 NTU standard solution, empty bottles), clean cloth, clean solution (distilled water)
|
