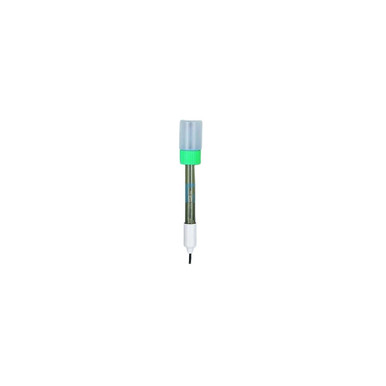

LUTRON PE-03 pH Electrode with BNC Connector
Product Overview
The PE-03 is a general purpose composite pH electrode designed to be a crucial element in measuring the pH value of an aqueous solution by detecting the depth of hydrogen ions. This accurate and reliable pH probe is engineered to provide almost instantaneous readings. It features a standard BNC connector for versatile compatibility with pH standard instruments and controllers.
Construction and Design
The PE-03 is formed by combining the pH electrode and a silver-silver chloride reference electrode into a single unit. The assembly is housed within a sturdy polycarbonate shell repression. The probe is equipped with a terminal block BNC connector and a 1-meter probe length.
Key Applications
This electrode is widely used in applications where precise pH detection is critical. It is the measuring key element for various analytical needs. The PE-03 is highly utilized across several professional fields, including:
• The chemical industry
• The pharmaceutical industry
• Research careers
Technical Specifications (Model PE-03)
|
Feature
|
Specification
|
|
Model
|
PE-03
|
|
Measuring Range (pH)
|
0 ~ 14 pH
|
|
Temperature Range
|
5 – 50 Degree Celsius
|
|
Zero (pH)
|
7 ± 1
|
|
Repeatability (pH)
|
≤ 0.017
|
|
Connector Type
|
BNC connector
|
|
Probe Length (Cable)
|
1 meter
|
|
Alkali Error
|
0.2 pH
|
|
Theoretical Slope (%)
|
> -97
|
|
Resistance MΩ (at 25ºC)
|
< -250
|
Related Products
For calibration and maintenance, PH Standard Buffer Powder is available. An Electrode Stand is also available for stable measurement setups.
