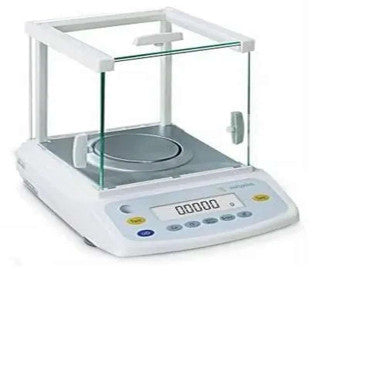

Sartorius BSA224S-CW Analytical Balance with Motorized Calibration
The Sartorius BSA224S-CW Analytical Balance is a premium laboratory weighing solution engineered for high-precision analytical applications requiring exceptional accuracy, reliability, and compliance. Featuring a 220g weighing capacity with ultra-fine 0.1mg readability, this electronic analytical balance delivers dependable performance for research, pharmaceutical, and quality control laboratories.
Designed with an advanced motorized internal calibration system, the BSA224S-CW ensures consistent measurement accuracy without requiring external calibration weights. Its fast stabilization time of approximately 2.5 seconds, combined with a high-visibility backlit display and intelligent filtering system, enhances workflow efficiency and operational precision.
The balance also integrates GLP/ISO documentation support, RS-232 connectivity, multiple weighing applications, overload protection, and below-balance weighing functionality. Compact yet robust, the Sartorius BSA224S-CW analytical balance is ideal for laboratories demanding reliable micro-weighing performance and regulatory compliance.

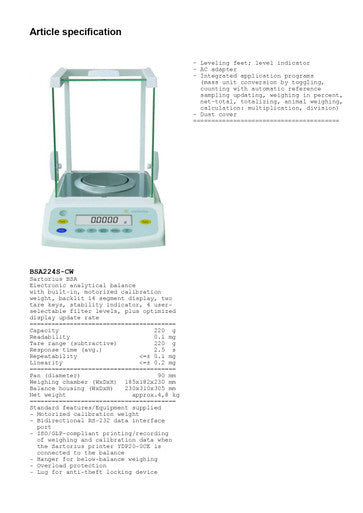

Technical Specifications
| Feature | Details |
|---|---|
| Capacity | 220 g |
| Readability | 0.1 mg |
| Repeatability | ≤ ±0.1 mg |
| Linearity | ≤ ±0.2 mg |
| Response Time | Approx. 2.5 seconds |
| Tare Range | 220 g (Subtractive) |
| Calibration System | Motorized Internal Calibration |
| Display Type | Backlit 14-Segment Display |
| Weighing Pan Diameter | 90 mm |
| Weighing Chamber Dimensions | 185 × 182 × 230 mm |
| Balance Dimensions | 230 × 310 × 305 mm |
| Connectivity | Bidirectional RS-232 Interface |
| Net Weight | Approx. 4.8 kg |
| Integrated Applications | Counting, Percentage, Formulation, Totalizing, Animal Weighing |
Core Features & User Benefits
- Motorized Internal Calibration Integrated automatic calibration maintains weighing accuracy without external weights, reducing calibration downtime and operational errors.
- Ultra-Precise 0.1mg Readability Delivers highly accurate micro-weighing results for analytical chemistry, pharmaceutical testing, and laboratory research applications.
- Fast Stabilization Performance Achieves stable readings in approximately 2.5 seconds, improving laboratory workflow efficiency and sample throughput.
- Advanced Environmental Filtering Four selectable filter levels optimize performance under varying laboratory environmental conditions and vibrations.
- GLP/ISO Documentation Support Supports regulatory compliance through RS-232 connectivity and integration with Sartorius laboratory printers for traceable records.
- Multi-Function Application Modes Integrated programs for counting, percentage weighing, formulation, totalizing, and animal weighing reduce dependency on additional equipment.
- Robust Safety Protection Includes overload protection, anti-theft security slot, leveling feet, and built-in level indicator for safe and reliable operation.
- Compact Professional Design Space-saving analytical balance design with a durable weighing chamber suitable for modern laboratory environments.
Frequently Asked Questions (FAQ)
What is the readability of the Sartorius BSA224S-CW analytical balance?
The Sartorius BSA224S-CW analytical balance offers ultra-high precision with a readability of 0.1 mg and a weighing capacity of 220 g. This level of accuracy makes it ideal for pharmaceutical analysis, research laboratories, chemical testing, and other critical analytical weighing applications.
What is motorized internal calibration in an analytical balance?
Motorized internal calibration automatically calibrates the balance using an integrated internal weight mechanism. This eliminates the need for external calibration weights, ensures consistent measurement accuracy, minimizes human error, and improves reliability in laboratory weighing operations.
Does the Sartorius BSA224S-CW support GLP and ISO documentation?
Yes, the Sartorius BSA224S-CW supports GLP and ISO compliant documentation through its RS-232 interface and compatibility with Sartorius data printers. This allows laboratories to maintain traceable records and meet regulatory documentation requirements efficiently.
What applications can be performed using the BSA224S-CW analytical balance?
The analytical balance includes built-in applications such as counting, percentage weighing, net-total formulation, totalizing, animal weighing, and unit conversion. These integrated functions improve laboratory productivity and eliminate the need for separate weighing calculation tools.
How fast is the Sartorius BSA224S-CW response time?
The Sartorius BSA224S-CW analytical balance provides an average stabilization time of approximately 2.5 seconds. This fast response improves weighing efficiency and enables laboratories to complete repetitive analytical measurements quickly and accurately.
