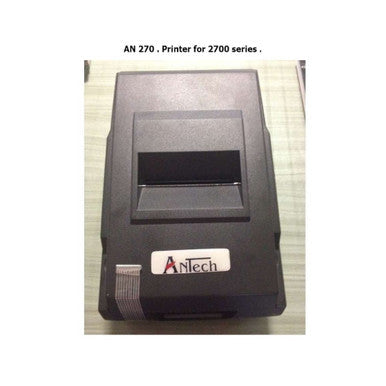

ANTECH AN 270 Dot Matrix Printer – High-Performance Laboratory & Industrial Data Printing
The ANTECH AN 270 Dot Matrix Printer is a heavy-duty, high-speed impact documentation system engineered specifically to complement professional laboratory analytical instruments, including the ECPH270042S pH meter and all units within the 2700 Series. Built to withstand demanding scientific and industrial environments, this durable printer delivers consistent log recording, receipt processing, and multi-copy billing validation with ultra-low running costs.
Equipped with an advanced, in-house crafted 9-wire print head and a patented long-life Ink bank ribbon cassette, the ANTECH AN 270 slashes operational overhead while maintaining sharp text clarity across multipart carbon sheets. Its rugged, compact architecture integrates effortlessly into tight bench spaces, handling continuous forms via convertible push/pull tractor feeds or single-sheet media with equal efficiency.
Designed for automated workspaces, the printer features the smart iSense self-diagnostic suite on its front control panel for immediate error resolution. With robust multi-voltage tracking (90V–270V AC) and versatile plug-and-play USB, parallel, and optional serial connectivity, the ANTECH AN 270 ensures uninterrupted workflow compliance across diagnostic laboratories, clinical sites, and fast-paced distribution warehouses.

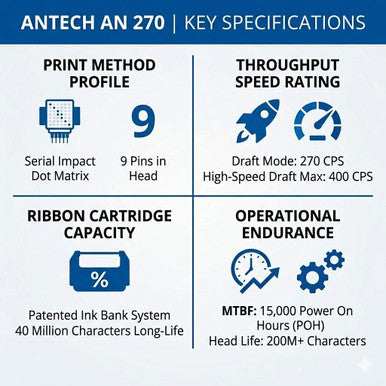

Technical Specifications
| Feature | Details |
|---|---|
| Print Method | Serial Impact Dot Matrix |
| Number of Pins in Head | 9 pins |
| Print Direction | Bi-directional |
| Control Code / Emulation | ESC / P, IBM Proprinter |
| Print Width | 80 Column |
| Print Head Life | 200+ Million Characters |
| High-Speed Draft Rate | 10 cpi: 350 cps | 12 cpi: 360 cps | 15 cpi: 400 cps |
| Standard Draft Speed | 10 cpi: 270 cps | 12 cpi: 320 cps | 15 cpi: 375 cps |
| Near Letter Quality (NLQ) Speed | 10 cpi: 65 cps | 12 cpi: 75 cps | 15 cpi: 75 cps |
| Character Sets & Fonts | Draft, Roman, Sans Serif, Script, Resident Barcode Font (Code 3 of 9) |
| Multi-Copy Capability | 1 + 3 Copies with carbon duplication |
| Paper Handling Architecture | Top, rear, and bottom path; Convertible push/pull tractor or friction feed |
| Media Constraints | Cut sheet & continuous paper: 3.5″ to 10″ wide; Max thickness: 0.3 mm |
| Line Spacing | 4.23mm (1/6″) or programmable in increments of 0.118mm (1/216″) |
| Input Data Buffer | 100 KB |
| Interface Connectivity | Bi-directional Parallel (IEEE-1284 nibble), USB 2.0 Full-Speed, Optional Serial |
| Ribbon Cartridge Type | Patented TVS-E ribbon cassette with user-replaceable Ink bank (40M characters) |
| Reliability Ratings | MTBF: 15,000 Power On Hours (POH) | Noise Level: 55 dB (A) |
| Control Interfacing | 4 functional switches and 5 status indicator LEDs |
| Electrical Configuration | Rated Voltage: 90V – 270V AC | Frequency: 47 - 63 Hz |
| Power Draw | Operating: 34W | Standby: 12W |
| Dimensions & Weight | 433 x 379 x 147 mm | ~5.7 kg (variant-dependent) |
| Warranty Protection | 1 Year Manufacturer Warranty |

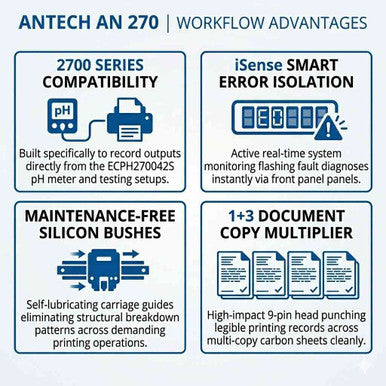

Core Features & User Benefits
- Ultra-High Speed Output Maximizes workplace documentation efficiency by achieving rapid draft speeds up to 270 characters per second (CPS) and high-speed draft rates peaking at 400 CPS.
- Heavy-Duty 9-Wire Print Head Provides pristine multi-copy duplication (1 master + 3 carbon copies) and clean data alignment via a robust 9-pin impact head rated for over 200 million characters.
- Patented Cost-Saving Ink Bank Slashes ongoing total cost of ownership (TCO) with a high-capacity ribbon system delivering a massive lifespan of 40 million characters before replacement.
- Maintenance-Free Carriage Design Eliminates down-time servicing using self-lubricating silicon bushes that ensure smooth, friction-free print-carriage transit over consecutive work shifts.
- iSense Self-Diagnostic Dashboard Simplifies equipment troubleshooting using the built-in smart iSense utility to analyze mechanical faults and flag errors immediately across front panel LEDs.
- Triple-Path Flexible Paper Loading Handles single sheets, continuous cards, and labels effortlessly via structured top, rear, and bottom loading tracks with a convertible push/pull tractor mechanism.
- Wide-Range Voltage Protection Shields hardware integrity against local power drops and surge fluctuations with a broad operational tolerance range spanning 90V to 270V AC.
Frequently Asked Questions
Is the ANTECH AN 270 printer fully compatible with Eutech or Thermo laboratory meters?
The ANTECH AN 270 Dot Matrix Printer is purpose-engineered for seamless integration with premium laboratory instruments, including the ECPH270042S pH meter and all relevant devices within the 2700 series. Its robust firmware interprets raw analytical data output accurately for immediate compliance archiving.
What is the expected lifespan of the ANTECH AN 270 print head and ribbon cartridge?
The ANTECH AN 270 printer features an exceptionally low total cost of ownership. Its durable 9-wire print head is rated to last for over 200 million characters, while the patented TVS-E Ink bank ribbon cassette delivers up to 40 million characters before needing a manual replacement.
How does the integrated iSense diagnostic utility help laboratory operators resolve printing faults?
The built-in iSense diagnostic tool continuously tracks internal mechanical and electrical system behavior. When a printing failure or paper mismatch occurs, the interface isolates the specific error code and alerts operators immediately via the front LED control panel, reducing troubleshooting downtime significantly.
What paper types, page sizes, and multi-copy thicknesses can this dot matrix printer handle?
The ANTECH AN 270 handles continuous tractor-fed paper and loose cut sheets between 3.5 to 10 inches wide up to a thickness of 0.3 mm. Its high-impact 9-pin architecture supports clear, synchronized multi-copy carbon duplication formats up to 1+3 copies simultaneously.
What connectivity interfaces are standard on the ANTECH AN 270 serial impact printer?
The ANTECH AN 270 comes standard with dual high-speed legacy and modern data paths, including standard USB 2.0 Full-Speed and a Bi-directional Parallel IEEE-1284 Nibble interface. For specialized industrial instruments or medical hardware, an optional Serial configuration can be integrated upon request.
