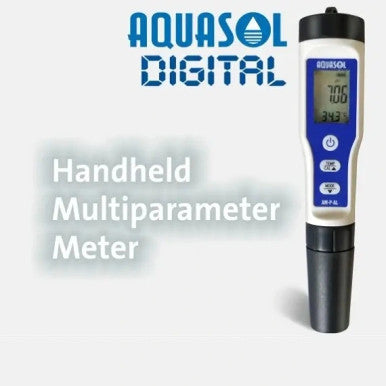

Introducing the AQUASOL AMPAL Multi-Parameter Meter
The AQUASOL AMPAL is a compact and versatile handheld meter designed to provide fast, reliable, and accurate measurements of multiple water quality parameters simultaneously. This advanced device is engineered for precision, making it an essential tool for various applications in industrial settings, laboratories, and for general field use. Its robust design and user-friendly features ensure convenience and durability.
Key Features and Benefits
The AQUASOL AMPAL meter boasts a range of features that enhance its performance and usability:
• Multi-Parameter Measurement: The meter is designed to measure pH, Conductivity, Total Dissolved Solids (TDS), and Temperature at the same time.
• Microprocessor-Based Accuracy: Equipped with a microprocessor, the meter delivers accurate readings and can be easily calibrated, even in fluctuating temperatures.
• Replaceable Electrode Module: An important design feature is the replaceable electrode within a reusable tester body, which allows for ease of maintenance and extends the life of the device.
• Durable and Waterproof Housing: Encased in waterproof, impact-resistant ABS housing, the meter is built for durability and is designed to float if accidentally dropped in liquid. It typically features an IP 57 rating for protection against solid objects and liquids.
• Clear LCD Display: Features a large LCD display for convenient and clear reading of measurements.
• Easy Calibration: The meter supports easy single-point calibration, and it is typically supplied with standard solutions to facilitate this process.
• Portable Design: Its compact and lightweight construction comes encased in a protective carrying pouch or attractive plastic case, ensuring safety and portability for on-the-go testing.
• Automatic Temperature Compensation (ATC): Includes Automatic Temperature Compensation (ATC) within a range of 0 to 80 °C, ensuring consistent and accurate readings despite temperature variations.
Ideal Applications
This multi-parameter meter is ideal for testing liquids such as natural water, drinking water, treated water, wastewater, brine solutions, and seawater. It is widely used in various fields including:
• Industrial applications.
• Laboratory testing.
• Agriculture and aquaculture.
• Water treatment plants and environmental monitoring.
Technical Specifications
|
Parameter
|
Specification
|
|
Model Name
|
AMPAL
|
|
Parameters Measured
|
pH, Conductivity, TDS, Temperature
|
|
pH Range
|
0.00 to 14.00
|
|
pH Accuracy
|
±0.01 pH
|
|
pH Resolution
|
0.01 pH
|
|
Conductivity Range
|
0 to 19990 µS/cm
|
|
Conductivity Accuracy
|
±2% FS
|
|
Conductivity Resolution
|
1 µS/cm
|
|
TDS Range
|
0 to 9990 PPM
|
|
TDS Accuracy
|
±2% FS
|
|
TDS Resolution
|
1 PPM
|
|
Temperature Range
|
0 to 80 °C
|
|
Temperature Accuracy
|
±0.2 °C
|
|
Temperature Resolution
|
0.1 °C
|
|
ATC Compensation
|
0 to 80 °C
|
|
Power Source
|
AAA – DC 1.5V x 4 Batteries
|
|
Dimensions
|
183 x 37 x 37 mm
|
|
Weight
|
~90 g
|
This comprehensive meter provides essential data for maintaining optimal water quality and ensuring efficient processes across numerous industries.
