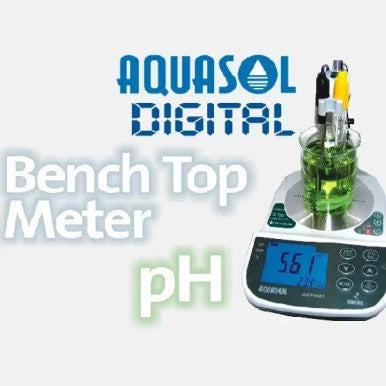

AQUASOL ABPH01 Bench Top pH/mV Meter with Built-in Stirrer
The AQUASOL ABPH01 Bench Top pH Meter is a precision-engineered laboratory instrument designed for accurate measurement of pH, ORP (mV), and temperature in research laboratories, educational institutions, pharmaceutical facilities, water testing laboratories, food processing industries, and industrial quality control applications.
Powered by advanced microprocessor-based technology, the AQUASOL ABPH01 delivers highly stable and repeatable analytical performance across a full measurement range of 0.00 to 14.00 pH and ±1999 mV ORP. The integrated large LCD screen simultaneously displays pH/mV and temperature values for improved operational efficiency and real-time monitoring during laboratory testing procedures.
A key advantage of the ABPH01 is its built-in magnetic stirrer with adjustable RPM and timer control, which ensures homogeneous sample mixing for highly reliable and stable readings. This integrated stirring system improves analytical accuracy when working with viscous, unstable, or non-uniform liquid samples.
The instrument includes Automatic Temperature Compensation (ATC) from 0 to 100°C, ensuring dependable pH correction during temperature fluctuations. Its rugged splash-proof construction and integrated electrode holder provide durability, workspace organization, and long-term operational reliability in demanding laboratory environments.
For enhanced data management and traceability, the AQUASOL ABPH01 features USB connectivity with PC software support, allowing users to store, transfer, and analyze measurement data efficiently. Combining precision measurement, intelligent temperature compensation, and integrated stirring functionality, the ABPH01 serves as a complete analytical workstation for modern laboratory applications.
Technical Specifications
| Parameter / Feature | Details |
|---|---|
| Product Type | Bench Top pH/mV Meter with Built-in Stirrer |
| Model | AQUASOL ABPH01 |
| Measured Parameters | pH, mV (ORP), Temperature |
| pH Measurement Range | 0.00 to 14.00 pH |
| pH Resolution | 0.01 pH |
| ORP (mV) Range | ±1999 mV |
| mV Resolution | 1 mV |
| Temperature Range | 0 to 110°C |
| Temperature Compensation | Automatic Temperature Compensation (ATC), 0 to 100°C |
| Display Type | Large Multi-Parameter LCD Display |
| Stirrer System | Integrated Magnetic Stirrer with Variable RPM and Timer |
| Data Connectivity | USB Port with PC Software Support |
| Memory Function | Advanced Data Storage and Recall Function |
| Electrode Holder | Integrated Electrode Holder |
| Housing Type | Rugged Splash-Proof Laboratory Housing |
| Power Supply | AC Power Adapter |
| Included Accessories | Adapter, Carrying Case |
| Applications | Water Analysis, Chemical Laboratories, Educational Labs, Food Testing, Pharmaceutical QC, Industrial Analysis |
Core Features & User Benefits
The AQUASOL ABPH01 Bench Top pH Meter is engineered to provide reliable analytical performance, efficient sample handling, and advanced laboratory convenience for professional testing applications.
- Integrated Magnetic Stirrer The built-in magnetic stirrer with adjustable RPM and timer functionality ensures uniform sample mixing, improving measurement consistency and reducing analytical errors caused by sample instability.
- High Accuracy pH & ORP Measurement The microprocessor-controlled measurement system delivers precise and repeatable pH and ORP readings across a wide analytical range for demanding laboratory applications.
- Automatic Temperature Compensation Integrated ATC technology automatically corrects pH readings based on temperature variations, ensuring dependable measurement accuracy during changing sample conditions.
- Large Multi-Parameter LCD Display The clear LCD screen simultaneously displays pH/mV and temperature readings, improving operational visibility and enhancing workflow efficiency during routine testing.
- USB Connectivity with PC Software USB data transfer capability enables laboratories to export, store, and analyze measurement records for improved traceability, reporting, and documentation compliance.
- Advanced Memory Storage Built-in memory functions allow convenient storage and retrieval of analytical data, helping laboratories maintain accurate testing records and process consistency.
- Durable Splash-Proof Construction The rugged laboratory-grade housing with splash-proof keyboard design enhances durability and operational reliability in demanding testing environments.
- Integrated Electrode Holder The built-in electrode support system improves workspace organization, measurement convenience, and electrode handling stability during laboratory analysis.
Frequently Asked Questions (FAQ)
What parameters can the AQUASOL ABPH01 measure?
The AQUASOL ABPH01 Bench Top Meter is designed to measure pH, ORP (mV), and temperature with high precision, making it suitable for laboratory analysis, water quality testing, chemical processing, food testing, and pharmaceutical quality control applications.
Its advanced microprocessor-based measurement system ensures stable and repeatable readings across a wide analytical range for professional laboratory use.
What is the pH measurement range of the AQUASOL ABPH01?
The AQUASOL ABPH01 offers a complete pH measurement range from 0.00 to 14.00 pH with a resolution of 0.01 pH, enabling accurate testing for acidic, neutral, and alkaline samples.
This wide measurement capability makes the instrument suitable for environmental testing, industrial process monitoring, chemical analysis, and scientific laboratory applications.
Why is the built-in magnetic stirrer important?
The integrated magnetic stirrer ensures continuous and uniform sample mixing during measurement, which improves stability and analytical accuracy for non-uniform or sensitive liquid samples.
The variable RPM and timer control allow laboratories to optimize stirring conditions for different sample types, reducing inconsistencies during pH and ORP analysis.
Does the AQUASOL ABPH01 support Automatic Temperature Compensation?
Yes, the AQUASOL ABPH01 includes Automatic Temperature Compensation (ATC) from 0 to 100°C to maintain accurate pH measurements during temperature fluctuations.
The separate temperature sensing system automatically adjusts readings based on sample temperature, improving measurement reliability and reducing manual correction requirements.
Can measurement data be transferred to a computer?
Yes, the AQUASOL ABPH01 includes USB connectivity and PC software support for convenient data transfer, storage, and analysis on a computer system.
This functionality helps laboratories maintain digital records, generate reports, and improve traceability for quality assurance and regulatory documentation processes.
