AQUASOL AMTDS01 Handheld TDS Meter – High Range Digital Tester:
Product Overview:

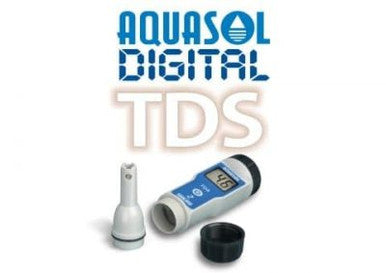

The AQUASOL AMTDS01 is a robust, microprocessor-based handheld digital TDS (Total Dissolved Solids) meter designed to deliver fast, reliable, and accurate measurements of dissolved solids in liquids. This instrument is engineered for high-range testing, offering a measurement capacity of 0 to 19990 PPM.
A TDS meter functions by measuring the electrical conductivity of a solution, which is directly influenced by dissolved ionized solids such as salts and minerals, and then converts this conductivity figure into an estimated TDS reading.
Applications and Usage:
The AMTDS01 meter is ideal for a wide range of water testing applications, particularly those requiring high-range measurements in industrial settings.
This digital handheld meter is proficient for testing liquids including:
• Natural water and drinking water.
• Treated water and waste water.
• Brine solution and sea water.
• Soluble salt content in liquids.
Design and Features:
The AQUASOL AMTDS01 features a variety of design elements that enhance usability and durability:
• Robust Construction: The meter uses a PLASTIC body housed in a waterproof and impact-resistant ABS casing.
• Convenient Display: It incorporates a Large LCD display for ease of reading.
• Replaceable Electrode: An important feature is the replaceable electrode module, which extends the life of the meter.
• Easy Calibration: Calibration is simple, requiring Easy Single Point Calibration. The instrument is supplied in an attractive plastic case along with standard solutions for straightforward calibration.
• Portability: The meter is available in a portable pack and has a lightweight design, weighing only 85g.
Technical Specifications:
|
Specification
|
Detail
|
Source Support
|
|
Model
|
AMTDS01 (AM-TDS-01)
|
|
|
Type
|
Handheld / Portable Digital TDS Meter
|
|
|
TDS Measuring Range
|
0 to 19990 PPM
|
|
|
Resolution
|
10 PPM
|
|
|
Accuracy
|
|
|
|
Display
|
3 Digit
|
|
|
Power Supply
|
3V x 2 Lithium battery CR2032
|
|
|
Electrode
|
Replaceable Module
|
|
|
Body/Housing Material
|
PLASTIC / Waterproof Impact resistant ABS Housing
|
|
|
Dimensions
|
33.5 mm x 170 mm
|
|
|
Weight
|
85g (Meter Only)
|
|
|
Calibration Method
|
Easy Single Point Calibration
|
|
|
Country of Origin
|
Made in India
|
|
|
Warranty
|
1 Year
|
