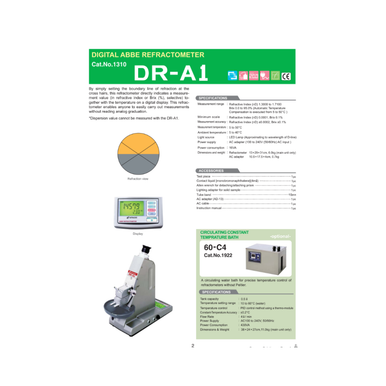

ATAGO Model DR-A1 Digital Abbe Refractometer:
The ATAGO DR-A1 is a robust and reliable digital Abbe refractometer designed to provide high-precision measurements in a laboratory setting. This instrument simplifies complex refractive index and Brix analysis by replacing analog graduation with an easy-to-read digital display, ensuring measurement ease and high reproducibility for any operator.
Key Features and Operation:
Digital Precision and Ease of Use The primary feature of the DR-A1 is its digital display, which directly indicates the measured value in either Refractive Index (nD) or Brix (%), along with the temperature. Measurement is achieved by simply setting the boundary line of refraction at the cross hairs within the refraction view. This digital operation removes the need for reading fine analog scales, enhancing accuracy and speed.
Wide Measurement Capabilities The DR-A1 is suitable for a diverse range of materials, including both liquid and solid samples such as glass, plastics, and films. It is widely applied across various fields, from basic research to quality control and product management, including food, beverage, and chemical analysis.
Automatic Temperature Compensation (ATC) To ensure reliable results regardless of minor temperature fluctuations, the refractometer features Automatic Temperature Compensation (ATC) across its operative range of 5 to 50°C.
Connectivity and Compliance The unit can be connected to external devices like a digital printer (optional) and a computer via RS-232C communication system. ATAGO refractometers are designed and manufactured in Japan and comply with stringent quality standards including HACCP, GMP, and GLP systems.
Important Note on Dispersion:
Please be aware that the dispersion value cannot be measured with the DR-A1.
Technical Specifications:
|
Parameter
|
Detail
|
|
Model Number
|
DR-A1
|
|
Measurement Scales
|
Refractive Index (nD), Brix (%), Temperature (°C)
|
|
Measurement Range (Refractive Index)
|
1.3000 to 1.7100
|
|
Measurement Range (Brix)
|
0.0 to 95.0%
|
|
Minimum Scale (Refractive Index)
|
0.0001
|
|
Minimum Scale (Brix)
|
0.1%
|
|
Measurement Accuracy (Refractive Index)
|
±0.0002
|
|
Measurement Accuracy (Brix)
|
±0.1%
|
|
Measurement Temperature Range
|
5 to 50°C
|
|
Automatic Temperature Compensation (ATC)
|
Executed from 5 to 50°C
|
|
Thermometer Accuracy
|
±0.2°C
|
|
Ambient Temperature
|
5 to 40°C
|
|
Light Source
|
LED Lamp (Approximating to wavelength of D-line)
|
|
Power Supply
|
AC adapter (100 to 240V (50/60Hz) AC input)
|
|
Power Consumption
|
16VA
|
|
Output Terminal
|
For digital printer, PC (via RS-232C)
|
|
Dimensions (Refractometer)
|
13 × 29 × 31 cm (W×D×H)
|
|
Weight (Refractometer)
|
6.0 kg (main unit only)
|
Standard Accessories:
The Model DR-A1 typically includes the necessary components for immediate operation and calibration:
• AC adapter (AD-13)
• AC cable
• Instruction manual
• Test piece
• Contact liquid [monobromonaphthalene] (4mL)
• Allen wrench for detaching/attaching prism
• Lighting adapter for solid sample
• Tube band
