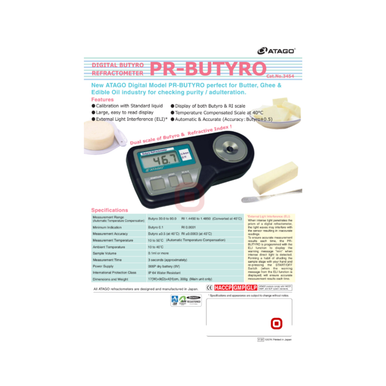

ATAGO Model PR-BUTYRO Digital Butyro Refractometer:
The ATAGO Model PR-BUTYRO is a highly efficient and accurate digital refractometer specifically engineered for the quality control needs of the dairy and edible oil industries. This instrument is indispensable for professionals dedicated to verifying product purity and detecting adulteration in fats and oils, such as butter, ghee, and various edible oils.
Product Overview and Application:
The PR-BUTYRO is an advanced digital model from ATAGO that simplifies critical quality checks by providing a fast, accurate method for determining the concentration of dissolved substances based on light refraction. It is widely used to test dairy products like milk, butter, ghee, and edible oil for checking adulteration and purity.
Key Features and Functionality:
This refractometer features a powerful Dual Scale system, simultaneously measuring and displaying both Butyro value and Refractive Index (RI), thereby maximizing efficiency during testing.
• Automatic Temperature Compensation (ATC): The PR-BUTYRO includes automatic temperature compensation, correcting the reading to the standard 40°C, removing the necessity of manual temperature calculation and adjustment. The instrument ensures that results are consistent regardless of minor sample temperature fluctuations within the 10 to 50°C range.
• Speed and Efficiency: Measurement results are obtained rapidly, typically in approximately 3 seconds.
• Minimal Sample Requirement: Accurate testing requires only a small sample volume of 0.1 ml or more.
• Enhanced Reliability (ELI Function): The integrated External Light Interference (ELI) function safeguards against inaccurate readings caused by intense external light penetrating the prism. If intense direct light is detected, the device displays a warning, ensuring measurement accuracy every time.
• Durable Design: The unit boasts an International Protection Class rating of IP 64, making it water resistant and dust-tight, suitable for rugged industrial and laboratory environments.
• User-Friendly Interface: Calibration is easily performed using standard liquid, and results are presented on a large, easy-to-read digital display.
Compliance and Manufacturing Standards:
All ATAGO refractometers are designed and manufactured in Japan. The ATAGO PR-BUTYRO adheres to stringent quality control standards, complying with HACCP, GMP, and GLP system standards, and is ISO9001 Registered.
Product Specifications:
|
Feature
|
Butyro Scale
|
RI (Refractive Index) Scale
|
|
Measurement Range (ATC)
|
30.0 to 90.0
|
1.4450 to 1.4850
|
|
Minimum Indication (Resolution)
|
0.1
|
0.0001
|
|
Measurement Accuracy (at 40°C)
|
±0.5
|
±0.0003
|
|
General Specifications
|
Details
|
|
Model Name/Number
|
PR-BUTYRO
|
|
Catalogue Number
|
3454
|
|
Scales
|
Butyro, Refractive Index (RI)
|
|
Temperature Compensation Range
|
10 to 50°C (Automatic Compensation)
|
|
Ambient Temperature
|
10 to 40°C
|
|
Measurement Time
|
Approx. 3 seconds
|
|
Minimum Sample Volume
|
0.1 ml or more
|
|
Power Supply
|
006P dry battery (9V)
|
|
International Protection Class
|
IP 64 Water Resistant
|
|
Dimensions (W x D x H)
|
17 x 9 x 4 cm (Main unit only)
|
|
Weight
|
300g (Main unit only)
|
