Automatic Polarimeter Digital Sucro Pol D

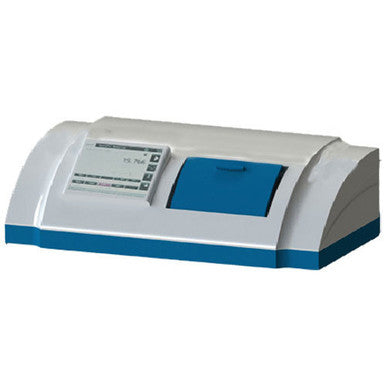

ADVANCE Automatic Digital Polarimeter (Model: Sucro Pol D)
The ADVANCE Sucro Pol D is a fully automatic digital polarimeter that integrates state-of-the-art opto-electronic technology to deliver fast, accurate, and highly repeatable measurements. It is engineered to completely eliminate the subjective errors associated with manual shadow matching, making it an essential instrument for demanding applications in quality control, quality assurance, and research. The Sucro Pol D is exceptionally versatile, offering measurements across four primary scales: Angular Rotation, International Sugar Scale (ISS), Specific Rotation, and Concentration. This multi-functionality allows it to be used for everything from pharmacological research of amino acids and vitamins to continuous, round-the-clock Pol reading in sugar mills to monitor plant efficiency. Its robust design is intended for heavy-duty, continuous use and is capable of measuring dark samples that are challenging for other models. Operation is simple and does not require a highly skilled chemist, making it accessible for all laboratory personnel. The instrument features a large display, an easy-to-use setup menu, and modern connectivity options like USB and RS-232 ports for seamless data transfer to a PC. Key Features:- Fully Automatic Measurement: Eliminates all operator subjectivity from shadow matching, ensuring high accuracy and repeatability.
- Four Measurement Scales: Provides readings in Angular Rotation, International Sugar Scale, Specific Rotation, and Concentration.
- Designed for Heavy-Duty Use: Features a robust and durable design suitable for continuous operation, such as in sugar mills.
- Measures Dark Samples: Capable of analyzing dark-colored samples that cannot be accurately measured by many other polarimeters. Automatic Polarimeter Digital Sucro Pol D
- User-Friendly Interface: A large LCD display and an easy, interactive setup menu ensure simple operation.
- Modern Data Connectivity: Equipped with USB and RS-232 output ports for easy data transfer to a computer.
- Reliable Light Source: Utilizes a stable Tungsten or Sodium Lamp for consistent illumination.
Product Specifications Automatic Polarimeter Digital Sucro Pol D
| Specification | Detail |
|---|---|
| Model | Sucro Pol D |
| Brand | ADVANCE |
| Measurement Principle | Fully Automatic Opto-electronic Detection |
| Scales | Angular Rotation, ISS, Specific Rotation, Concentration |
| Measurement Range | Up to ±90° (Angular), ±259°Z (ISS) |
| Resolution | As fine as 0.001° |
| Light Source | Tungsten / Sodium Lamp |
| Data Output | USB / RS-232 Port |
| Maximum Tube Length | Accepts tubes up to 200 mm |
- Sugar Industry: Continuous Pol measurement to monitor process and plant efficiency.
- Pharmaceutical Industry: Measurement of Optical and Specific Rotation for amino acids, analgesics, antibiotics, steroids, and vitamins. Automatic Polarimeter Digital Sucro Pol D
- Foodstuffs & Breweries: Quality control of ingredients and final products.
- Chemicals & Essential Oils: Purity and concentration analysis.
- Research & Development: High-accuracy measurements for research applications.
