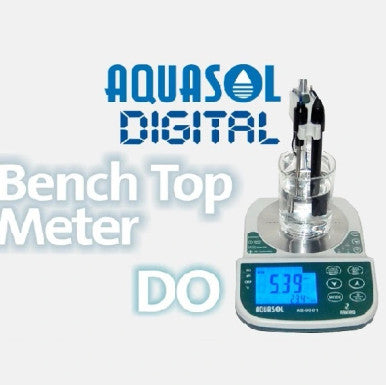

ABDO01 Bench Top DO & pH Meter – Multi-Parameter Water Analysis Solution
The ABDO01 Bench Top DO and pH Meter is a high-performance, microprocessor-based analytical instrument designed for accurate measurement of dissolved oxygen (DO), pH, ORP, oxygen saturation, and temperature. Built for laboratory and industrial applications, this multipurpose meter ensures reliable and precise results for water quality analysis.
Equipped with a built-in stirrer platform, automatic temperature compensation (ATC), and a large LCD display, the ABDO01 enhances measurement stability and user convenience. Its multi-parameter capability allows seamless switching between pH and ORP using compatible electrodes, making it a cost-effective and versatile solution. With rugged construction, USB connectivity, and advanced memory functions, it is ideal for laboratories, environmental monitoring, and research facilities.

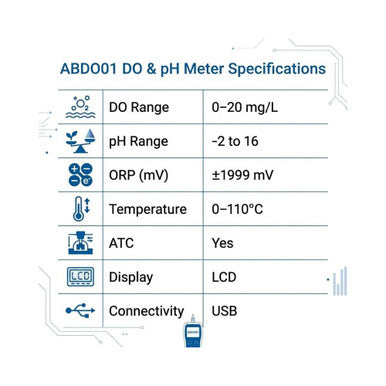

Technical Specifications
| Feature | Details |
|---|---|
| Model | ABDO01 |
| pH Range | -2.00 to 16.00 |
| pH Accuracy | ±1% |
| pH Resolution | 0.01 pH |
| ORP Range | ±1999 mV |
| ORP Accuracy | ±2% |
| ORP Resolution | 1 mV |
| DO Range | 0 to 20.00 mg/L |
| DO Accuracy | ±2% |
| DO Resolution | 0.01 mg/L |
| O₂ Range | 0 to 200% |
| O₂ Accuracy | ±2% |
| Temperature Range | 0 to 110°C |
| Temperature Accuracy | ±0.2°C |
| Temperature Resolution | 0.1°C |
| ATC | 0 to 100°C |
| Display | Large LCD (Multi-parameter) |
| Connectivity | USB |
| Stirrer | Built-in with variable RPM & timer |
| Included Sensors | pH Electrode, DO Electrode, Temperature Sensor |
| Optional | ORP Electrode |
Core Features & Benefits
- Multi-Parameter Analysis Measure DO, pH, ORP, oxygen saturation, and temperature with a single instrument, reducing equipment costs and improving laboratory efficiency.
- Built-in Stirrer Platform Ensures uniform sample mixing, leading to highly accurate and stable readings during dissolved oxygen measurement.
- Automatic Temperature Compensation ATC ensures precise readings across varying temperatures, improving measurement reliability in real-world conditions.
- Large Multi-Display LCD Simultaneously view multiple parameters and system status, enhancing productivity and reducing user errors.
- USB Data Connectivity Easily store, transfer, and analyze measurement data for reporting, compliance, and research applications.
- Rugged & Spill-Proof Design Durable construction with splash-proof keyboard ensures long-term reliability in demanding laboratory and industrial environments.
Frequently Asked Questions
What parameters can the ABDO01 DO and pH meter measure?
The ABDO01 bench top DO and pH meter measures dissolved oxygen (DO), pH, ORP, oxygen saturation, and temperature, making it a versatile multi-parameter solution for laboratory water analysis, environmental testing, and industrial quality control applications.
What is the dissolved oxygen measurement range?
The ABDO01 meter measures dissolved oxygen in the range of 0 to 20.00 mg/L with high resolution and accuracy, making it suitable for precise water quality analysis in laboratories, aquaculture, wastewater treatment, and environmental monitoring applications.
Can the ABDO01 measure both pH and ORP?
Yes, the ABDO01 supports both pH and ORP measurements by connecting the appropriate electrodes, allowing users to switch between parameters easily and making it a flexible and cost-effective solution for multi-parameter laboratory testing.
Does the meter include automatic temperature compensation?
Yes, the ABDO01 includes built-in automatic temperature compensation (ATC) from 0 to 100°C, ensuring accurate readings by adjusting measurement values based on temperature variations during analysis.
What accessories are included with the ABDO01 meter?
The ABDO01 comes with a pH electrode, DO electrode, temperature sensor, and built-in stirrer platform, providing a complete solution for immediate laboratory use, while the ORP electrode is available as an optional accessory.
