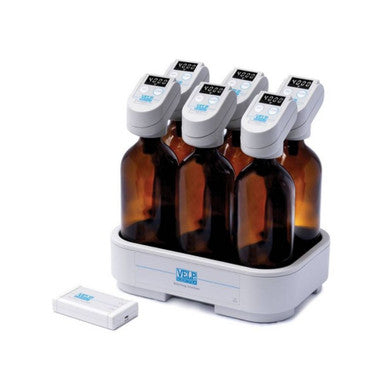

VELP Scientifica BOD Sensor System 6 (SA10200136) – Mercury-Free BOD Analysis System
The VELP Scientifica BOD Sensor System 6 (SA10200136) is an advanced respirometric system engineered for accurate and mercury-free Biochemical Oxygen Demand (BOD) determination in environmental, wastewater, and water quality laboratories. Designed for simultaneous multi-sample analysis, this reliable 6-position BOD analysis system delivers direct digital BOD measurements in mg/l (ppm) with exceptional operational simplicity and analytical precision.
Utilizing advanced respirometric measurement technology, the system continuously monitors oxygen consumption by microorganisms present in biodegradable water samples. During the incubation process, generated carbon dioxide is absorbed by potassium hydroxide (KOH), creating pressure variation inside the sealed bottle. The integrated F102B0133 BOD sensors precisely measure these pressure changes and instantly display accurate BOD values directly on the LED display.
The VELP BOD Sensor System 6 eliminates the use of hazardous mercury traditionally associated with BOD testing, offering a safer and environmentally responsible laboratory solution. The compact 6-position stirring station ensures uniform sample homogenization and stable test conditions, supporting highly reproducible results across multiple samples.
Designed for modern laboratories, environmental monitoring facilities, research institutions, wastewater treatment plants, and industrial quality control laboratories, the SA10200136 system automatically stores five BOD values at 24-hour intervals, enabling uninterrupted long-duration analysis including weekend operation. Its robust IP54-rated construction, low power consumption, and compatibility with cooled incubators make it an ideal solution for continuous laboratory BOD monitoring applications compliant with ISO 5815-1:2019 and Standard Method 5210D.
Technical Specifications
| Parameter / Feature | Details |
|---|---|
| Product Type | BOD Sensor System |
| Model | VELP Scientifica SA10200136 |
| Number of Positions | 6 |
| Test Typology | Respirometric BOD Analysis |
| BOD Sensor Model | F102B0133 (6 Sensors Included) |
| BOD Measurement Ranges | 90, 250, 600, 999, 4000 ppm (mg/l) |
| Measurement Readout | Direct Digital Display in mg/l (ppm) |
| Sensor Display | 4-Digit / 3-Digit LED Display |
| Bottle Capacity | 500 ml Dark Glass Bottles |
| Data Storage | Automatic Storage of 5 BOD Values at 24-Hour Intervals |
| Sensor Construction Material | Technopolymer |
| Stirring System | Compact 6-Position Magnetic Stirring Station |
| System Power Supply | 230V / 50-60Hz |
| Power Consumption | 2 W |
| Sensor Power Source | 2 × 3V Lithium Batteries (CR2430 Type) |
| Protection Degree | IP54 (EN 60529) |
| Safety Standard | IEC/EN61010-1 (Class 3 IEC 1010 Conformity) |
| Dimensions (W × H × D) | 270 × 300 × 185 mm |
| Weight | 2.3 Kg |
| Compliance Standards | ISO 5815-1:2019, Standard Method 5210D |
| Country of Origin | Italy |
| Scope of Supply | 6 BOD Sensors, 6 Stirring Positions, 6 Bottles, KOH Traps, Magnetic Stir Bars, Batteries |
| Application Areas | Environmental Labs, Wastewater Analysis, Water Quality Monitoring, Research Laboratories |
Core Features & User Benefits
The VELP Scientifica BOD Sensor System 6 is engineered for precise, safe, and reliable BOD analysis while simplifying routine laboratory workflows for environmental and water quality testing applications.
- Mercury-Free BOD Analysis Eliminates hazardous mercury usage associated with conventional BOD measurement methods, providing a safer and environmentally responsible laboratory solution.
- Direct Digital BOD Readout The integrated LED display provides direct BOD values in mg/l (ppm), eliminating manual calculations and improving laboratory efficiency.
- Automatic Data Storage Automatically stores five BOD values at 24-hour intervals, enabling uninterrupted analysis and reliable weekend operation without manual intervention.
- High Accuracy Respirometric Technology Advanced pressure-sensing technology ensures highly reliable monitoring of microbial oxygen consumption during biodegradation studies.
- Wide BOD Measurement Range Supports multiple predefined BOD ranges up to 4000 ppm, enabling versatile testing for low and high contamination samples.
- 6-Position Parallel Testing Simultaneously analyze up to six samples, improving laboratory productivity and reducing overall testing time.
- Optimized Magnetic Stirring The compact stirring station ensures continuous homogenization of samples, improving oxygen transfer consistency and analytical repeatability.
- Robust Laboratory Construction IP54-rated construction protects against dust and liquid splashes, ensuring reliable operation in demanding laboratory environments.
- Compact Incubator Compatibility The compact footprint allows multiple systems to fit inside VELP cooled incubators for large-scale BOD testing applications.
- International Standards Compliance Conforms to ISO 5815-1:2019 and Standard Method 5210D requirements for dependable environmental testing and regulatory compliance.
Frequently Asked Questions (FAQ)
What is the VELP Scientifica BOD Sensor System 6 used for?
The VELP Scientifica BOD Sensor System 6 is used for measuring Biochemical Oxygen Demand (BOD) in water and wastewater samples. It helps laboratories evaluate the level of biodegradable organic contamination by monitoring microbial oxygen consumption during incubation.
This system is widely used in environmental laboratories, wastewater treatment facilities, research institutes, and water quality testing laboratories for accurate and standards-compliant BOD analysis.
How does the respirometric BOD measurement system work?
The system measures oxygen consumption by microorganisms present in the sample during biodegradation. Carbon dioxide generated during the process is absorbed by potassium hydroxide (KOH), causing pressure reduction inside the sealed bottle.
The integrated BOD sensor detects these pressure variations and converts them directly into BOD values displayed in mg/l (ppm), eliminating the need for manual titration procedures.
What are the advantages of mercury-free BOD analysis?
The mercury-free design improves laboratory safety by eliminating hazardous mercury handling and disposal concerns associated with traditional BOD measurement systems.
This environmentally safer technology also simplifies laboratory operations while maintaining highly reliable and accurate BOD measurement performance for environmental testing applications.
What BOD measurement ranges are supported by the system?
The VELP BOD Sensor System supports predefined measurement ranges of 90, 250, 600, 999, and 4000 ppm BOD. Higher concentration samples can also be analyzed through appropriate sample dilution methods.
This wide analytical range makes the system suitable for both low-level environmental monitoring and high-strength wastewater analysis applications.
Can the system store BOD readings automatically?
Yes, the system automatically stores five BOD values at 24-hour intervals during the analysis cycle. This allows laboratories to continue testing reliably over weekends or unattended operation periods.
The automatic storage functionality improves workflow efficiency and ensures consistent monitoring throughout long-duration BOD testing procedures.
What is included with the SA10200136 package?
The SA10200136 package includes six F102B0133 BOD sensors, a 6-position stirring station, six 500 ml dark glass bottles, KOH traps, magnetic stirring bars, and lithium batteries.
This complete package provides laboratories with all essential components required for immediate multi-sample BOD analysis operation.
