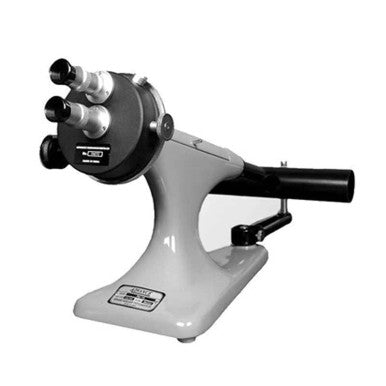

Deluxe Manual Polarimeter Model PA-1R

The PA-1R Deluxe Manual Polarimeter is a high-quality optical instrument designed for the precise measurement of optical rotation. It is an ideal solution for academic laboratories, as well as for quality control applications in the sugar, pharmaceutical, and food industries where reliable and straightforward analysis is required. This "Deluxe" model is distinguished by its superior optical system and user-centric design. It features a high-quality imported eyepiece, which delivers a sharp, highly-defined split-field view. This exceptional clarity minimizes eye strain and significantly enhances the precision of the null-point setting, allowing users to determine the angle of rotation with greater confidence and repeatability. A key feature of the PA-1R is its fully integrated lighting system. Housed within the instrument's base, the built-in monochromatic light source provides stable and uniform illumination, eliminating the need for an external lamp. This not only saves valuable bench space but also ensures consistent measurement conditions every time. The robust, all-metal construction provides excellent stability, which is essential for accurate readings. Key Features:

• High-Quality Imported Eyepiece: Provides a crystal-clear, bright, and sharp split-field image for accurate and comfortable null-point determination.
• Integrated Lighting System: A built-in, stable monochromatic light source ensures consistent illumination and removes the need for a separate, external lamp. Deluxe Manual Polarimeter Model PA-1R
• Precision Optical Measurement: The instrument features a large, easy-to-read circular scale with a vernier that provides a readability of 0.05°, covering a measurement range of ±180°.
• Robust and Stable Design: The heavy, all-metal base and durable construction ensure the instrument remains stable during operation for reliable and repeatable results. Deluxe Manual Polarimeter Model PA-1R
• User-Friendly Operation: The classic manual design is intuitive and easy to use, making it perfect for both teaching environments and routine laboratory analysis.
• Versatile Sample Analysis: Comes complete with two standard-length sample tubes (100 mm and 200 mm) to accommodate a variety of sample concentrations and path lengths.

What's in the Box: Deluxe Manual Polarimeter Model PA-1R

• PA-1R Deluxe Polarimeter Main Unit
• 100 mm Sample Tube
• 200 mm Sample Tube
• Spare Sealing Gaskets
• Dust Cover
• Instruction Manual

Product Specifications Deluxe Manual Polarimeter Model PA-1R

Ideal Applications: Deluxe Manual Polarimeter Model PA-1R

• Education: An excellent instrument for demonstrating the principles of chirality and optical isomerism in chemistry and physics labs.
• Sugar Industry: For determining the concentration of sugar in syrups and raw materials.
• Pharmaceuticals: Routine quality control of optically active ingredients.
• Food & Beverage: Analysis of sugars, essential oils, and flavorings.
