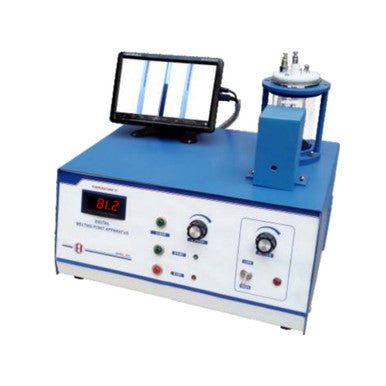

Digital Melting Point Apparatus Model 2935
The Digital Melting Point Apparatus Model 2935 is a precision laboratory instrument designed for accurate melting point determination and purity analysis of solid compounds. Widely used in pharmaceutical, chemical, and research laboratories, it ensures reliable identification of substances through sharp melting range observation.
Equipped with a high-resolution TFT camera system and integrated viewing display, the instrument enables clear visual monitoring of sample melting behavior. Its digital temperature measurement with 0.1°C resolution ensures precise and repeatable results.
The apparatus features a uniform silicon oil bath heating system with built-in magnetic stirring, providing consistent temperature distribution. Combined with PT-100 sensor accuracy and intuitive controls, Model 2935 delivers dependable performance for quality control, research, and analytical testing environments.
Technical Specifications
| Feature | Details |
|---|---|
| Temperature Resolution | 0.1°C |
| Display | 4-digit LED + TFT screen |
| Viewing System | High-resolution camera + magnifier |
| Heating System | Silicon oil bath with immersion heater |
| Temperature Sensor | PT-100 RTD |
| Sample Capacity | 3 capillary tubes |
| Oil Bath Capacity | ~200 ml |
| Control System | Electronic heating control |
| Operation | Start/Stop/Clear switches |
Core Features & Benefits
- High Accuracy MeasurementEnsures precise melting point determination with 0.1°C resolution.
- Integrated Camera SystemProvides clear real-time visualization of melting process.
- Uniform Heating ControlOil bath with magnetic stirring ensures stable temperature distribution.
- User-Friendly OperationSimple controls with Start/Stop functions for easy testing workflow.
- Enhanced ObservationMagnifier and glare-free illumination improve sample visibility.
- Reliable Laboratory PerformanceIdeal for pharma QC, chemical labs, and research applications.
Frequently Asked Questions (FAQ)
What is a melting point apparatus used for?
A melting point apparatus is used to determine the temperature at which a solid substance melts. It helps identify compounds and assess purity by measuring the melting range, which is critical in pharmaceutical, chemical, and research laboratories.
How accurate is the Model 2935 melting point apparatus?
The Model 2935 provides high accuracy with a temperature resolution of 0.1°C. Combined with a PT-100 sensor and controlled oil bath heating, it ensures precise and repeatable melting point measurements for laboratory applications.
What is the advantage of a TFT camera system?
The integrated TFT camera allows real-time visual monitoring of the melting process. This improves observation accuracy and reduces human error compared to traditional manual viewing methods.
Why is oil bath heating used in melting point apparatus?
Oil bath heating ensures uniform and stable temperature distribution around the sample. This prevents temperature fluctuations and allows accurate detection of melting onset and completion.
Where is this apparatus commonly used?
The Digital Melting Point Apparatus is widely used in pharmaceutical industries, chemical laboratories, and research institutions for purity testing, compound identification, and quality control analysis.
